Electrical Opening of Boot Lid

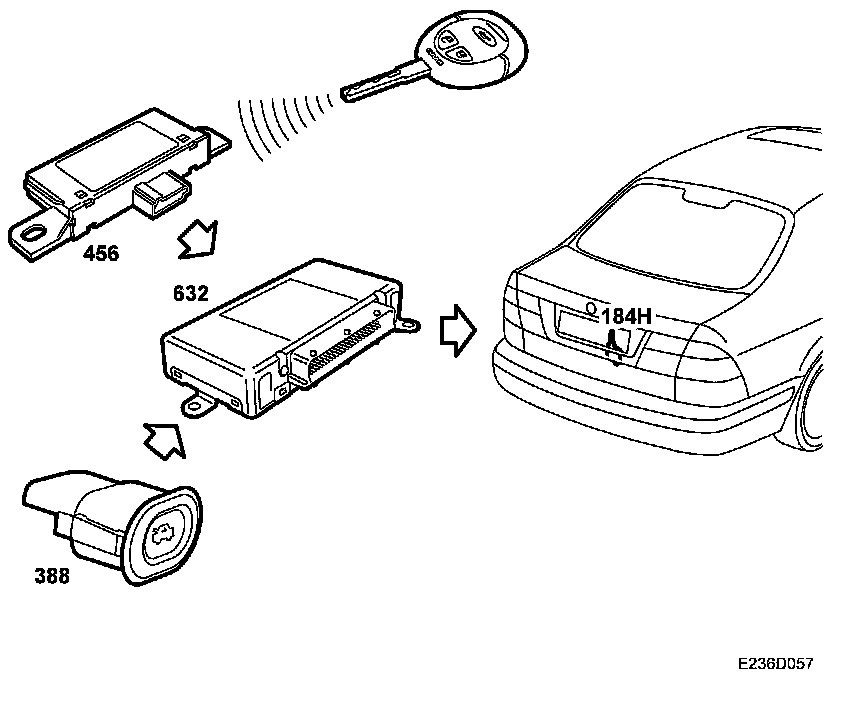

System Overview, Electrical Opening Of Boot Lid (4D)







^ Control module, TWICE (632)
^ Car key
^ Antenna, remote control, central locking system (456)
^ Switch, boot lid (388)
^ Motor, central locking system, boot lid (184H)
