Brakes - Engine Compartment Whistling Noise
Bulletin Number: 210-2570Date: September 2005
Market: all
Whistling noise from brake servo system
Cars affected
Saab 9-5 M01-M05 within VIN interval 13000001 - 53526235 with engine option B205/B235 and manual gearbox.
Background
In some cases, the upper engine cover makes a hole in the brake servo vacuum hose.
In the case of customer complaint, the following procedures must be carried out.
Symptom description
Whistling noise from the brake servo system in the engine compartment.
Parts required
52 30 495 (CA: 30586636) Vacuum hose LHD
52 30 503 Vacuum hose LHD
Procedure
1. Remove the upper engine cover.

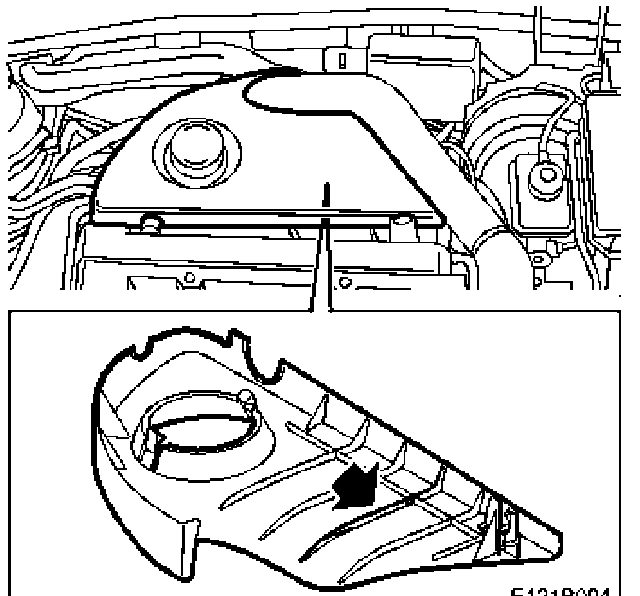

2. Use a knife or the like to remove all of the edging in the engine cover. See illustration. Be sure not to leave any sharp edges.
3. Replace the vacuum hose.
4. Fit the upper engine cover.
Warranty/Time Information
In the case of customer complaint and if the car is within the warranty period, use the following information to fill out the claim:
Failed Object: 54122
Fault/Reason code: 33
Location code: 09 (US=09)
Warranty Type (US): 01
Repair/Action code: 01
Labor Operation (US): 5412202
Time: 0.2 hr
Fault diagnosis procedure is not available.
