A Click Is Heard From Speakers When Audio Switched OFF

A Click Is Heard From The Speakers When The Audio System Is Switched Off







Fault symptoms
A click is heard from the speakers when the audio system is switched off.

Probable cause of fault

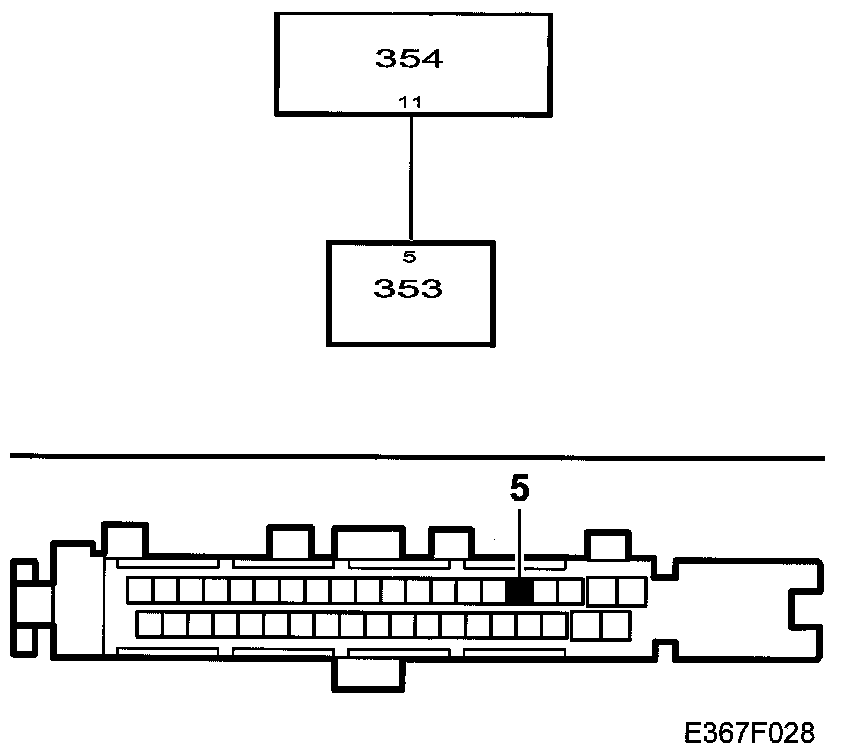

Break in the lead (mute control) from the main unit to the amplifier.

Checking the wiring harness
Jiggle the wiring harness at several points and in different directions to check if there are intermittent breaks and short-circuits in the leads. Observe the multimeter, test lamp or diagnostic instrument during the test.
