Panel Lighting

Panel Lighting

Replacing the front panel

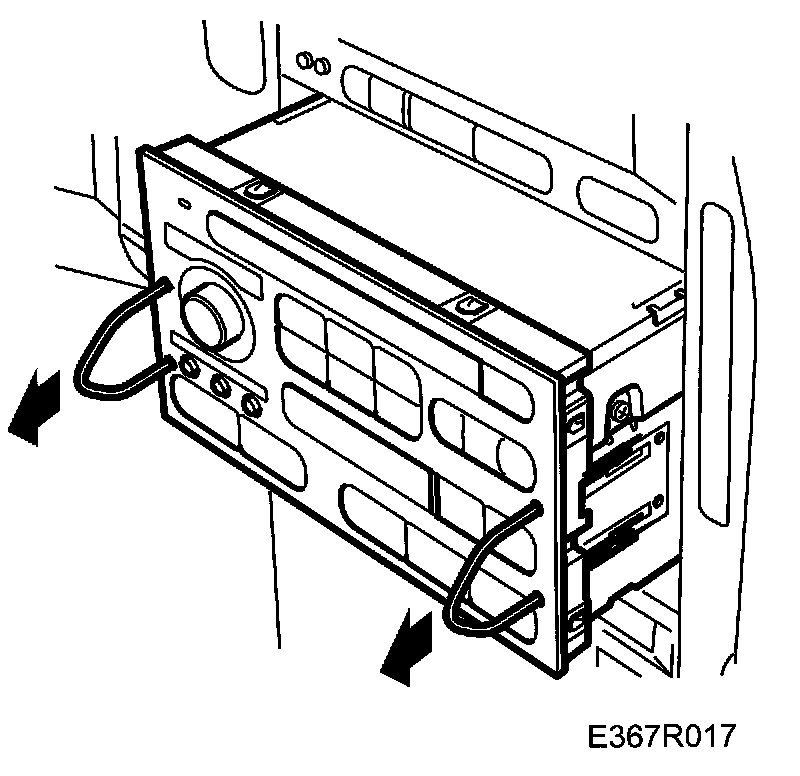

1. Remove the main unit.

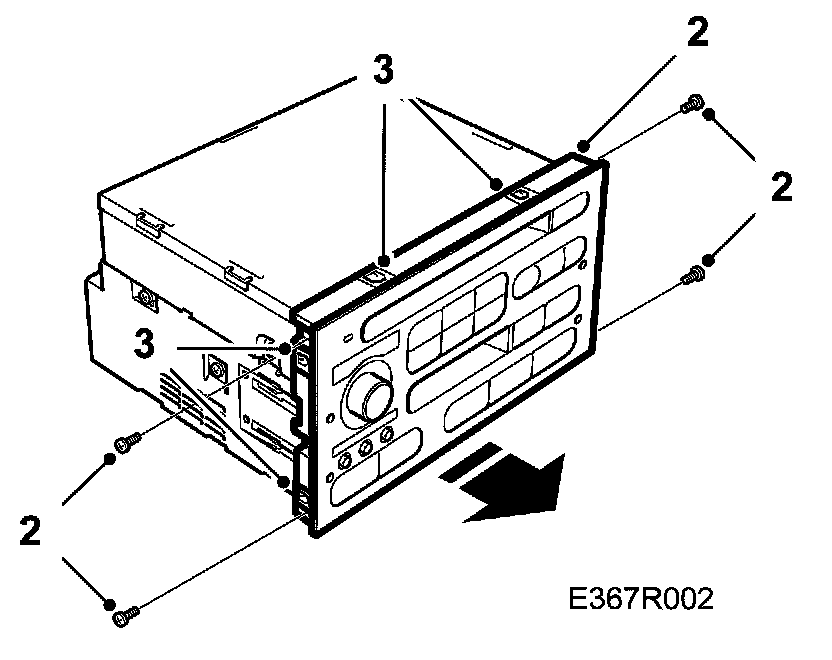

2. Remove the four screws in the front panel.







3. Undo the six locking tabs which hold the front panel in place.

NOTE: When refitting, ensure that the connector under the front panel is correctly positioned.

To fit
Fit the front panel on the main unit and slide in the main unit.
