Main Unit Power Supply




Main Unit Power Supply

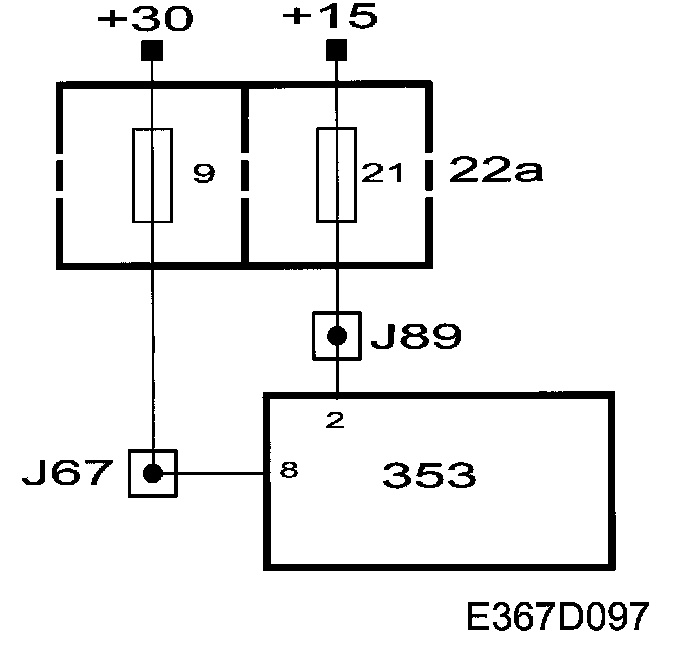

Power supply +15:
From fuse 21 to the main unit, pin 2.

Power supply +30:
From fuse 9 to the main unit, pin 8.
