Main Unit Ground



Main Unit Ground

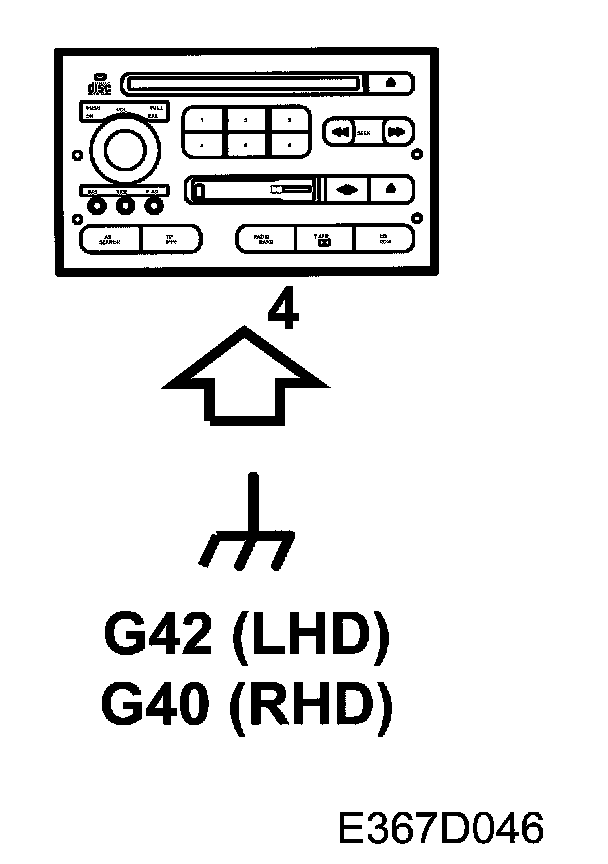

Ground connection:

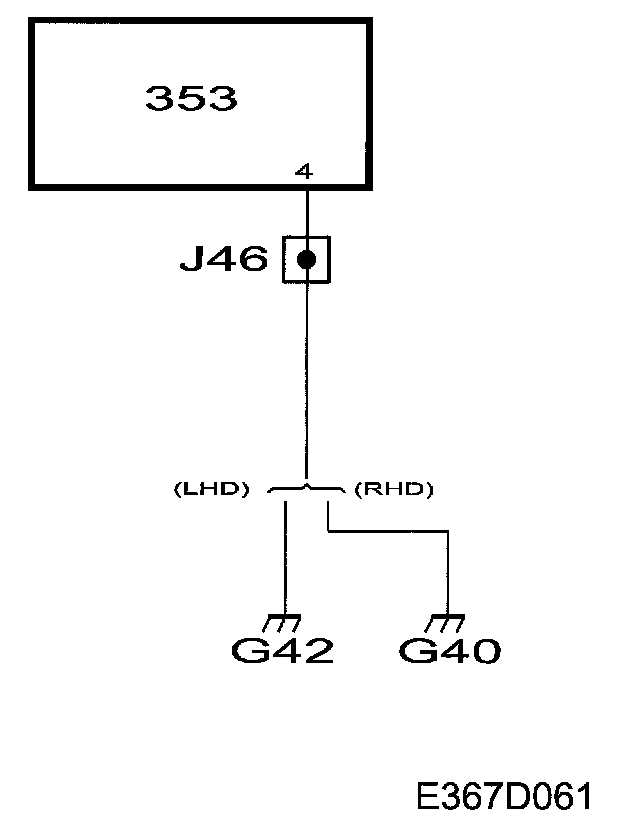

The main unit is grounded (main ground) at grounding point G42 (LHD) or G40 (RHD) via pin 4.
