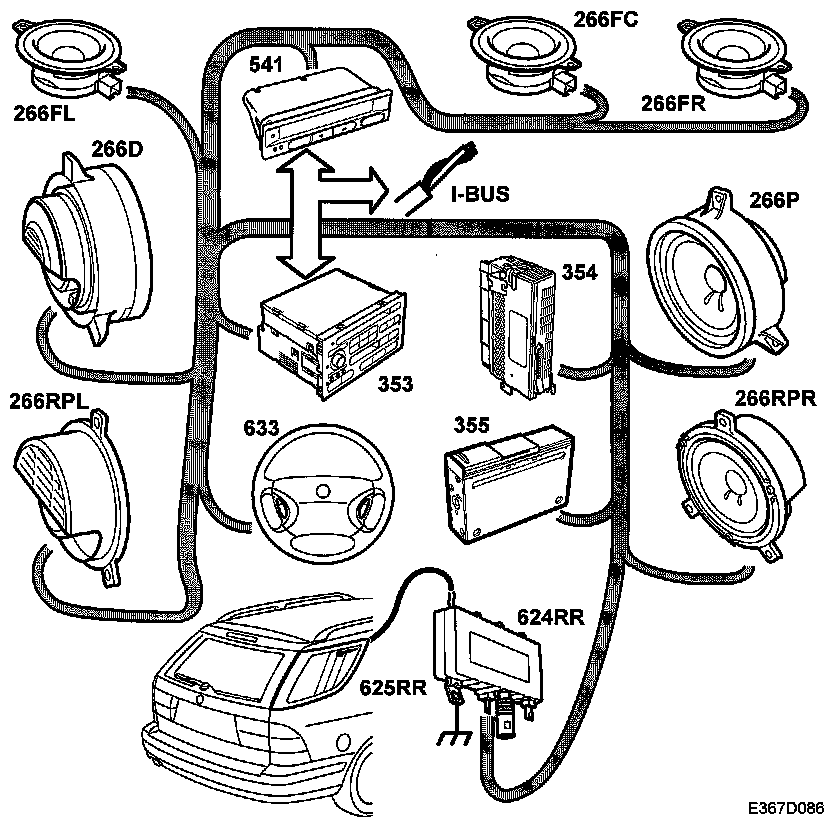

System Overview, Premium (5D)

System Overview, Premium (5D)







^ Main Unit (353)
^ SID (541)
^ Amplifier (354)
^ Speaker, centre dashboard (266FC)
^ Speaker, left dashboard (266LF)
^ Speaker, right dashboard (266FR)
^ Speaker, driver's door (266D)
^ Speaker, passenger door (266P)
^ Speaker, left rear door (266RPL)
^ Speaker, right rear door (266RPR)
^ Antenna (625RR) alt.(625RR 625RL)
^ Antenna amplifier(624RR)
alt. (624RR and 624RL)
^ Steering wheel switches (633)
^ CD changer, option (355)
