Head Unit Power Supply



Head Unit Power Supply

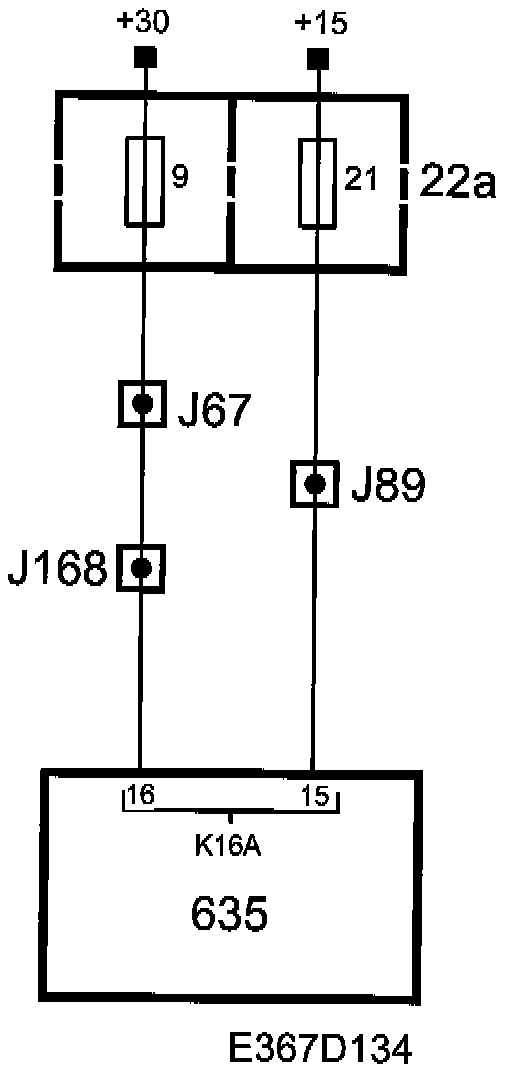

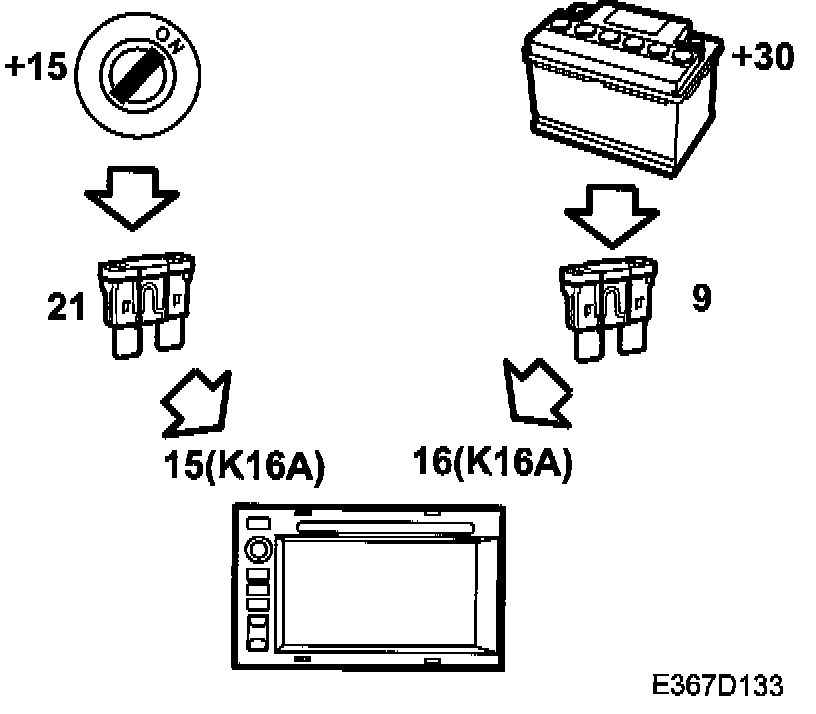

Diagram:






Power supply +15
From fuse 21 to the head unit, pin 15 (K16A).

Power supply +30
From fuse 9 to the head unit, pin 16 (K16A).
