Head Unit Outputs

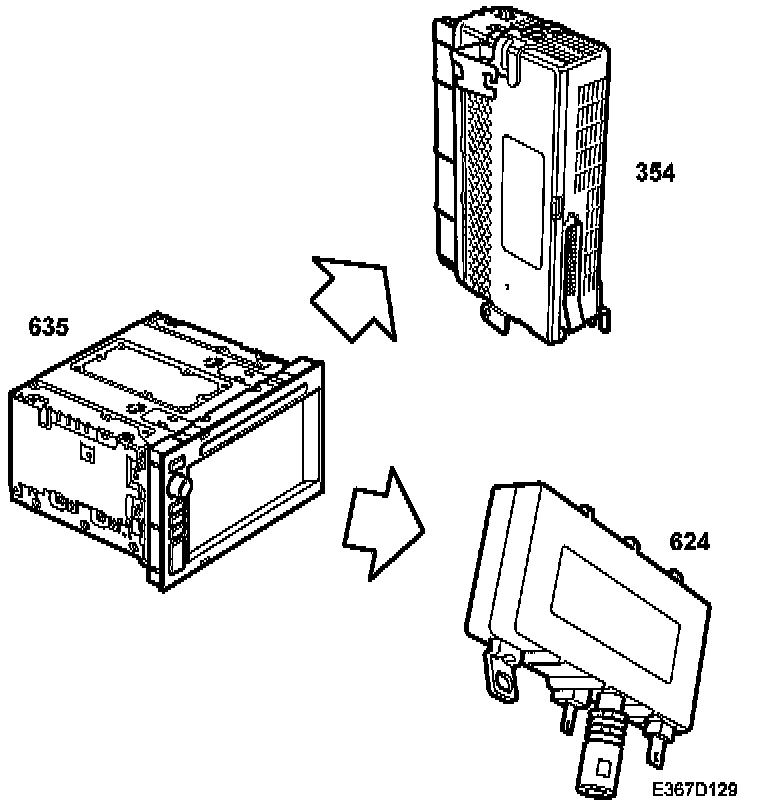

Head Unit Outputs






^ Trigger voltage (624)
^ Mute control, external amplifier (354)
^ Line output, right-hand channel +/- (front) (354)
^ Line output, left-hand channel +/- (front) (354)
^ Line output, right-hand channel +/- (rear) (354)
^ Line output, left-hand channel +/- (rear) (354)
