Head Unit Ground



Head Unit Ground

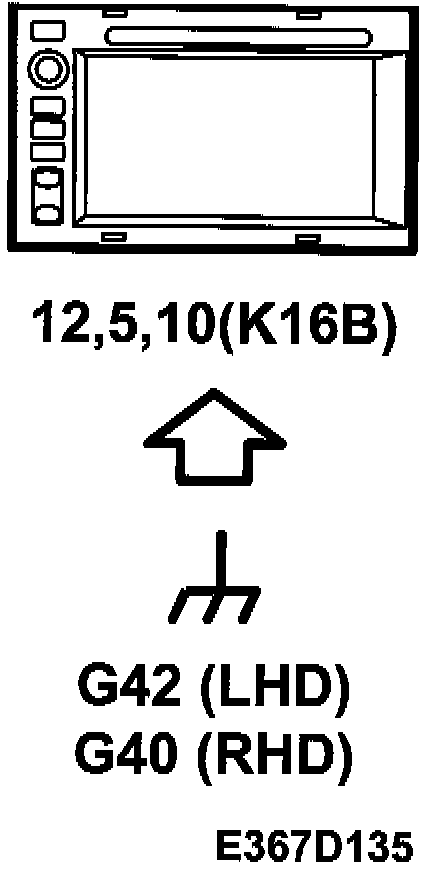

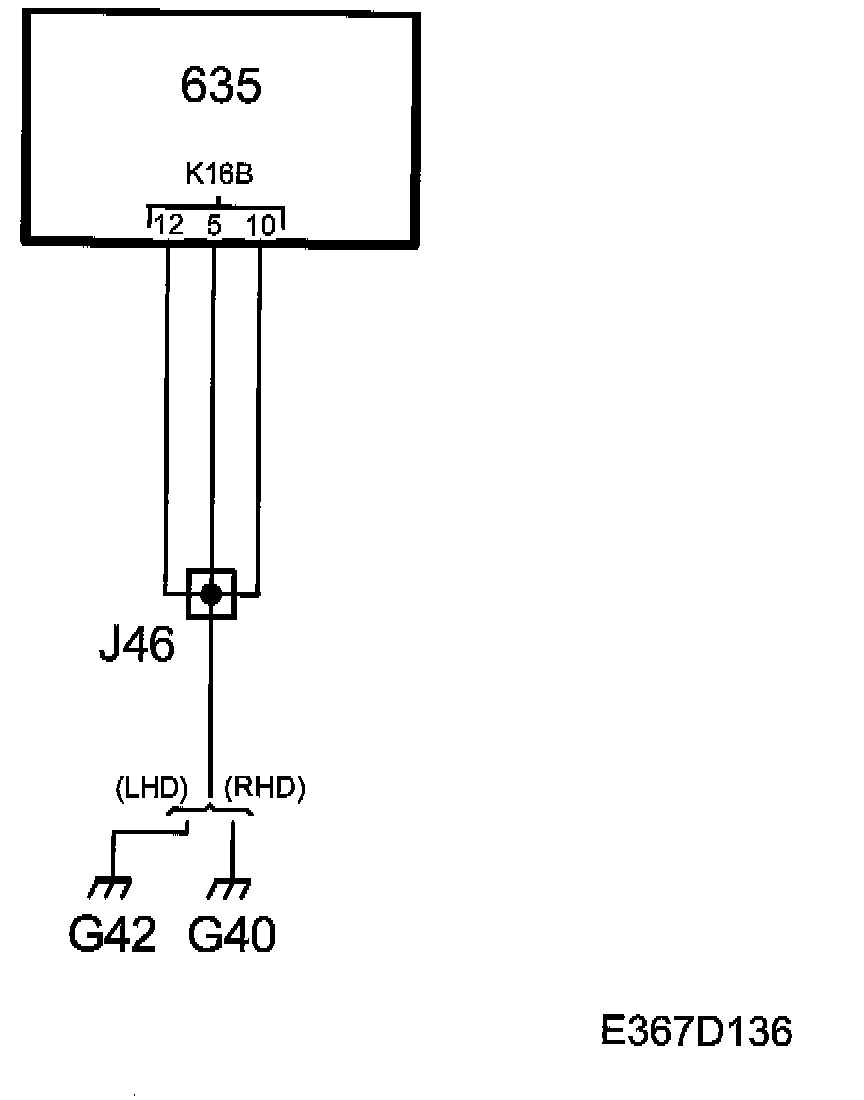

Diagram:






Ground Connection
The head unit is grounded (main ground) to grounding point G42 (LHD) or G40 (RHD) via pin 5 (K16B), 10 (K16B) and 12 (K16B).
