Amplifier, Premium/Prestige

Amplifier, Premium/Prestige

To remove

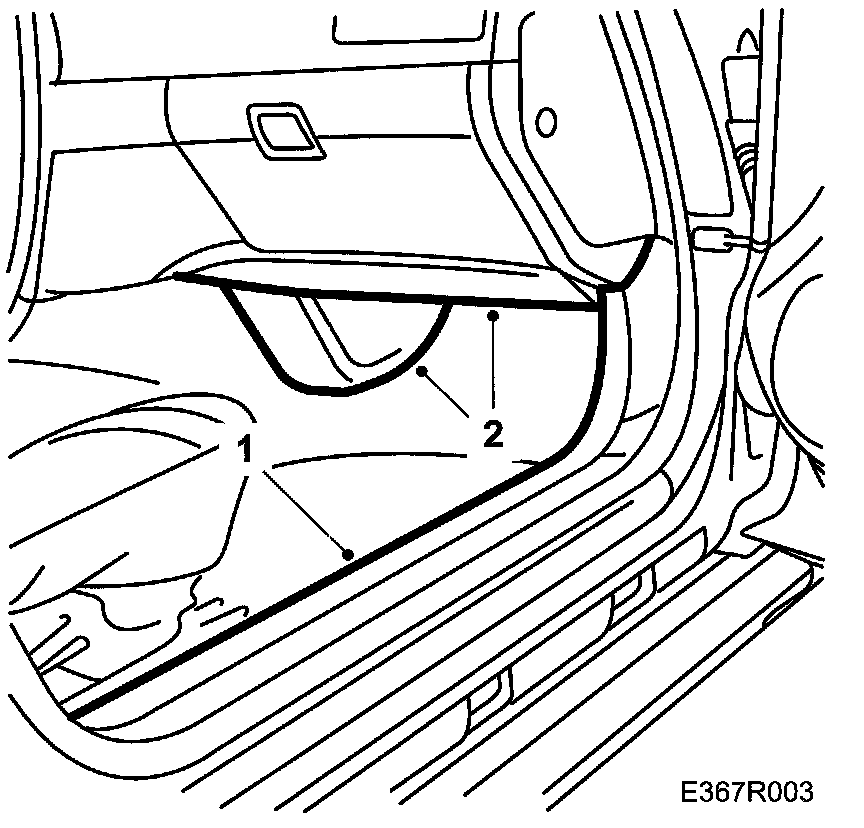

1. Remove the sill cover on the passenger side.
2. Remove the lower cover panel.
3. Fold the carpet to one side.

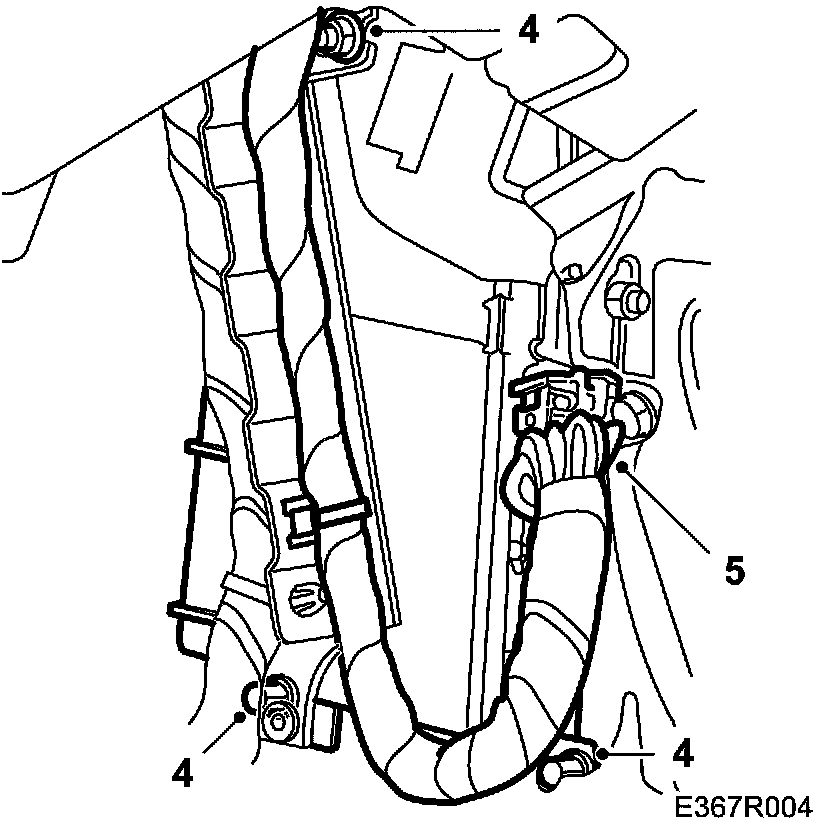

4. Remove the two lower nuts that hold the amplifier and loosen the upper.







5. Lift the amplifier out and unplug the connector.

To fit
Refit the parts removed in reverse order.

NOTE: Physically, the Prestige amplifiers for 4D and 5D cars are the same in appearance and connectors, so that it is possible to connect an amplifier intended for a 5D car into a 4D car. The sound quality from the sub-woofer will not be satisfactory, however, as it will be driven too hard. In the other case, if an amplifier for a 4D car is fitted into a 5D, the sub-woofer reproduction will sound washy.
