LED (Light Emitting Diode)

LED (Light Emitting Diode)

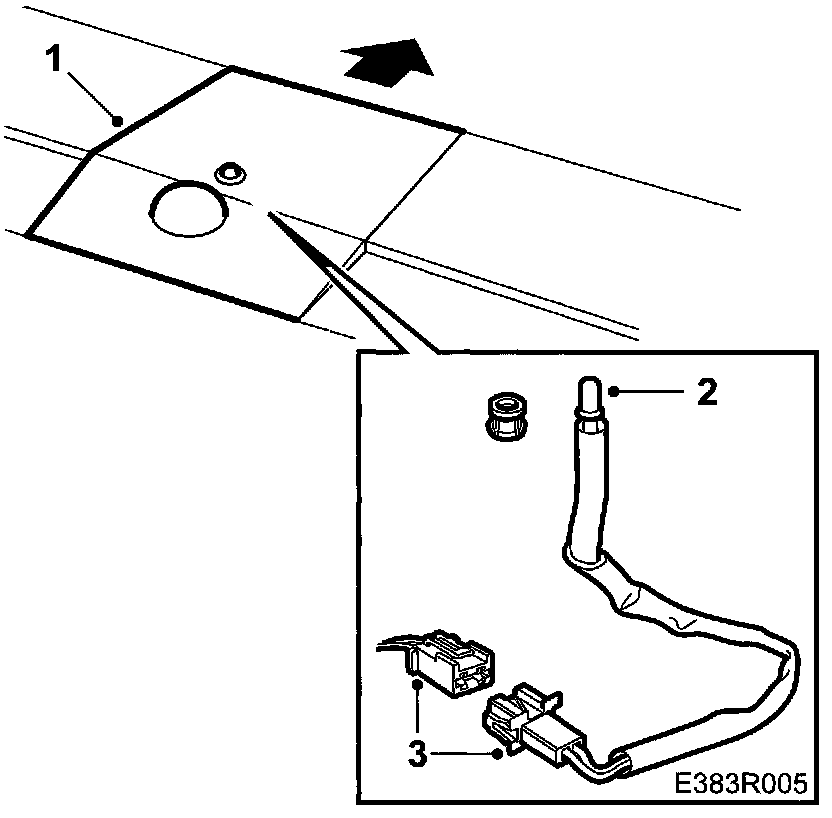

To remove







1. Slide the plate with the LED forwards.
2. Press the LED out of the plate.
3. Unplug the connector and remove the diode with cable.

To fit
Fit in reverse order.

NOTE: The LED legs are fragile and break easily. Use care.
