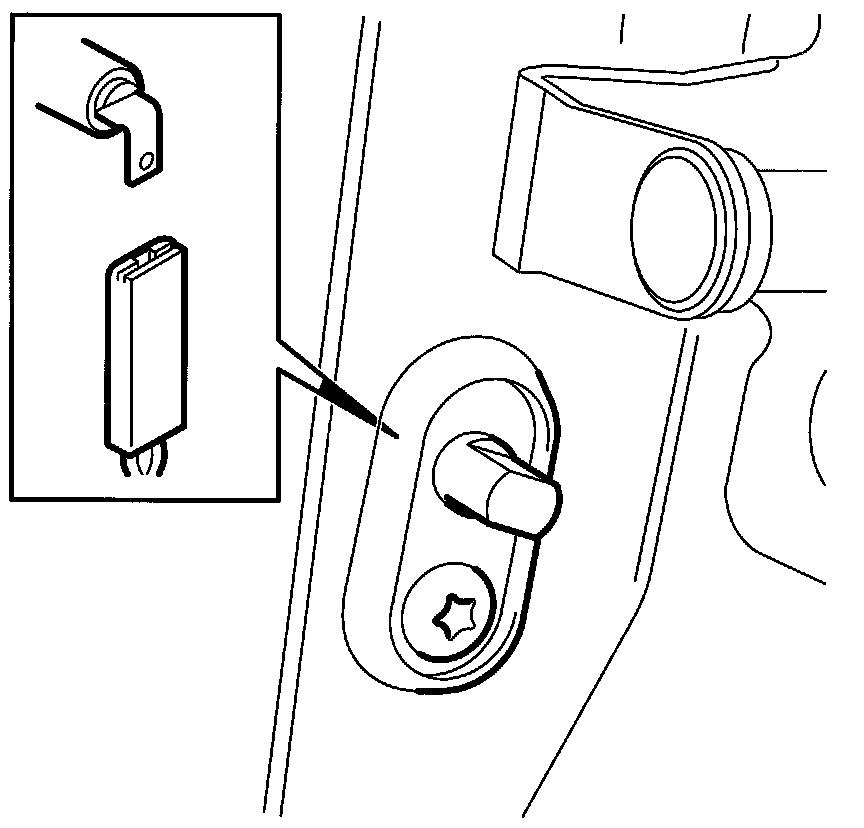

Door Switches, Rear Doors



Door Switches, Rear Doors

To remove







1. Fold down the backrest, rear seat.
2. Remove the upholstery from the body.
3. Detach the connection to the door switch.
4. Remove the screws securing the door switch.
5. Lift out the door switch from the hole in the body.

To fit
Fit in reverse order.
