9-5 Linear (9600) L4-2.3L Turbo (2.3t)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Locations
>>
Ground Locations
>>
Grounding Point G3
>>
Wagon
Wagon

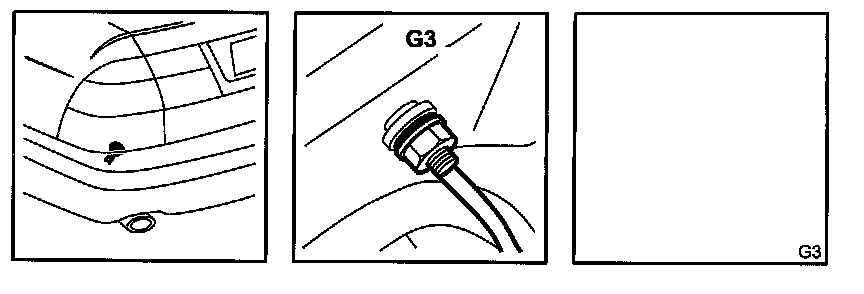

Location:
In luggage compartment under LH light cluster.

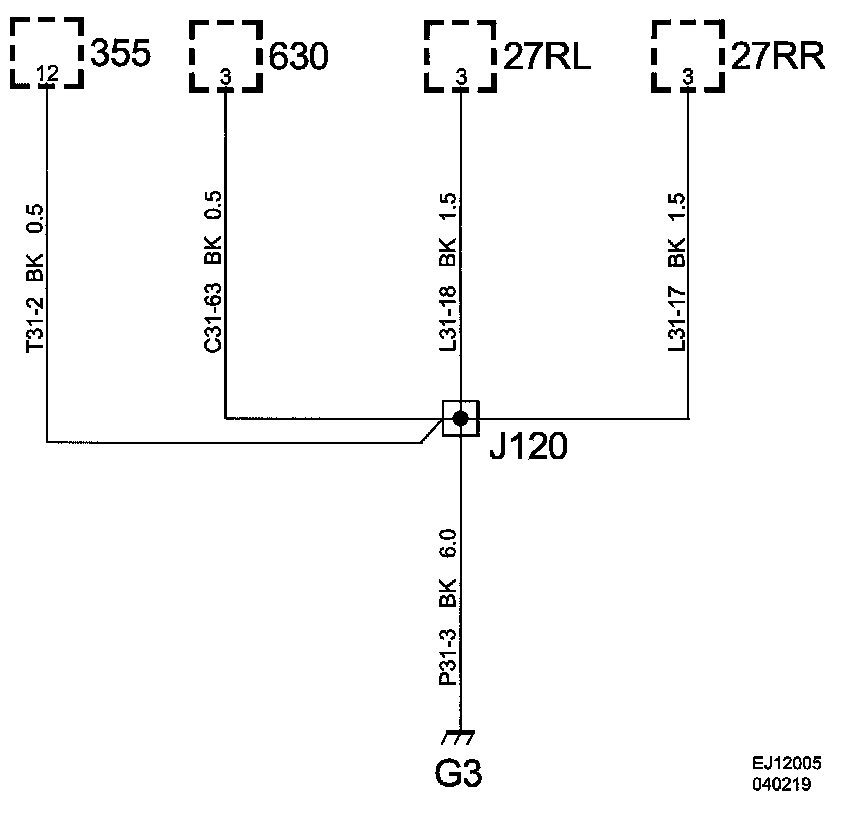

Grounding Point G3:

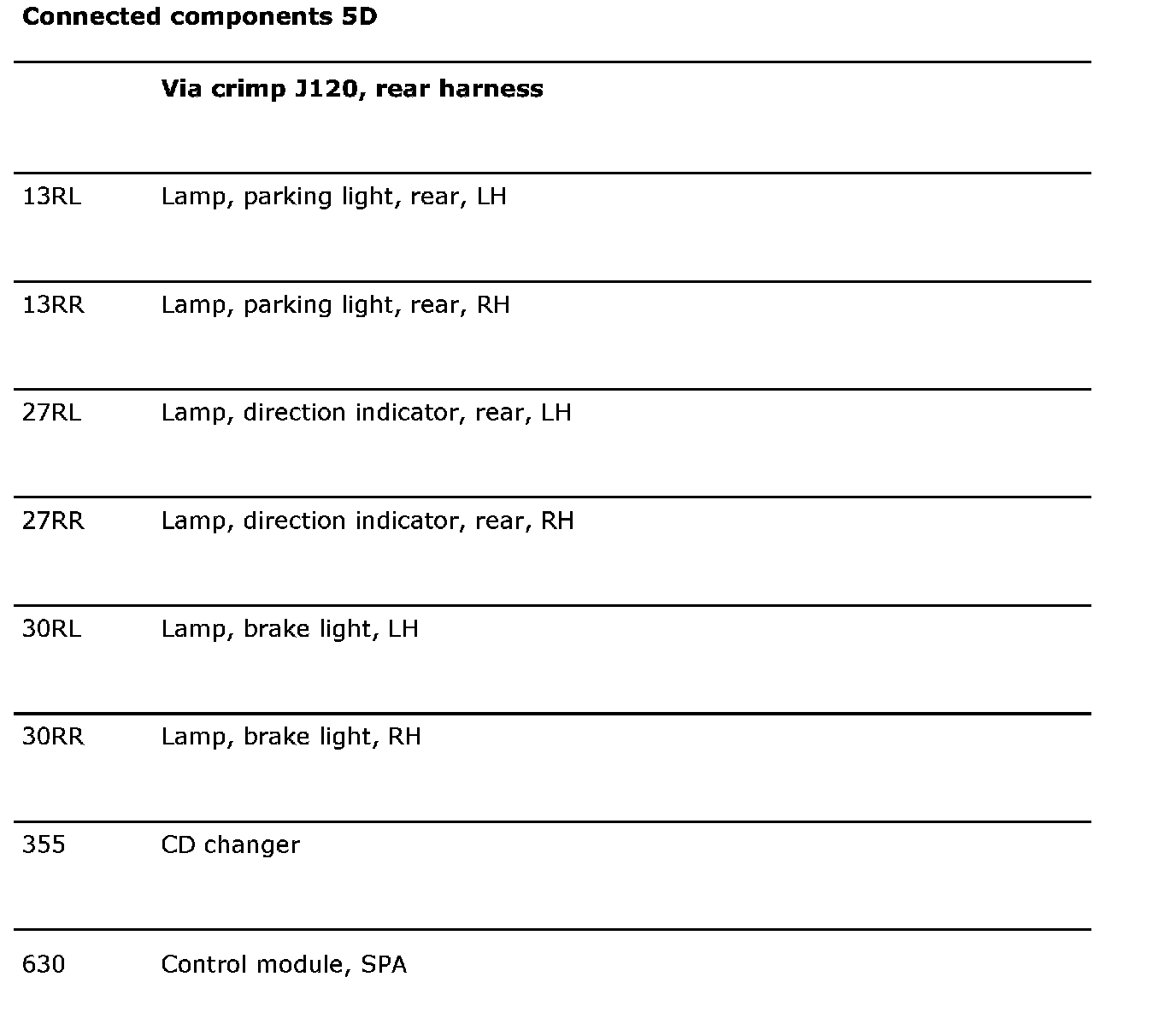

Connected Components:
