Anti-Theft Alarm - Wagon

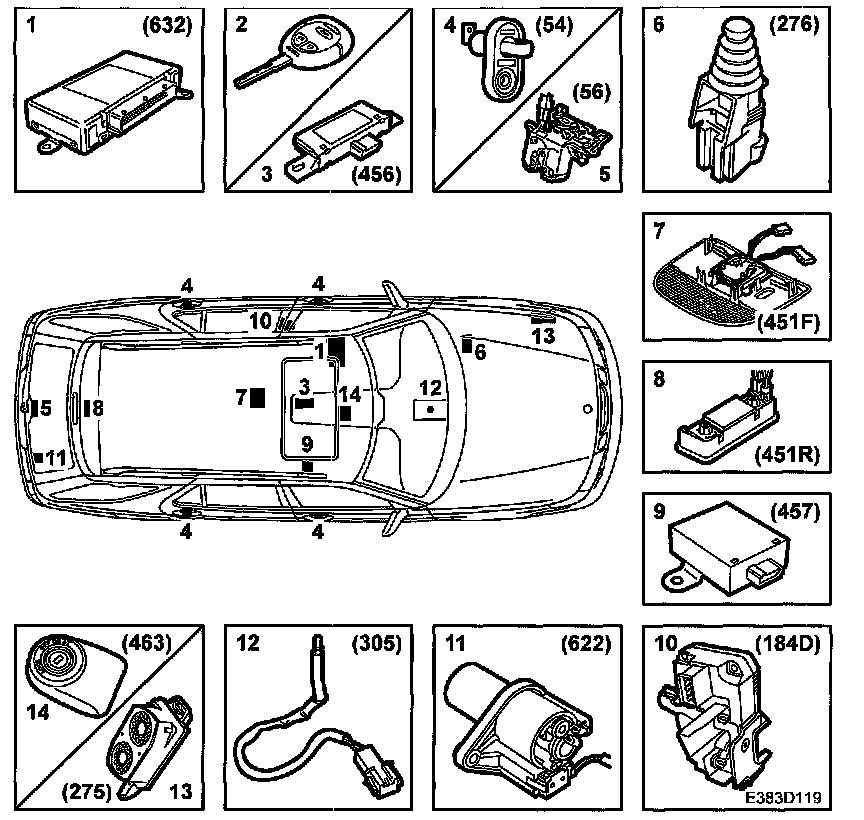

Main Components, Anti-theft Alarm (5D)







1. Control module, TWICE (632)
2. Car key
3. Antenna, remote control (456)
4. Door switches (54D, P, RL, RR)
5. Switch, luggage compartment lighting (56)
6. Bonnet switch, anti-theft alarm (276)
7. Glass breakage sensor, front (451F)
8. Glass breakage sensor, rear (451R)
9. Tilt sensor (457)
10. Key switch in driver's door (184D)
11. Microswitch, luggage compartment lock (622)
12. LED, anti-theft alarm (305)
13. Siren, anti-theft alarm (275), does not apply in certain markets from and including chassis No. 43013162
Horn (40), only in certain markets from and including chassis No. 43013162
14. Antenna unit, immobilizer (463)
