Luggage Compartment Switch, Lighting

Luggage Compartment Switch, Lighting










General

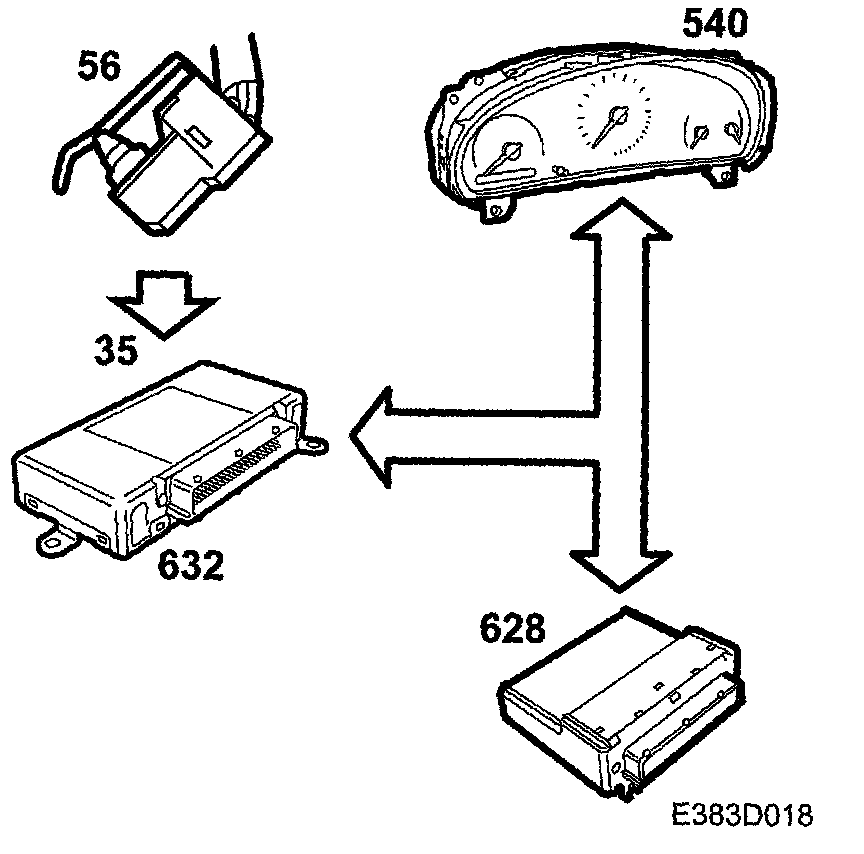

The boot lid/tailgate sensor is a switch that is integrated in the locking mechanism. It is also used to control the luggage compartment lighting. The switch is connected to pin 35 on the control module.

Function

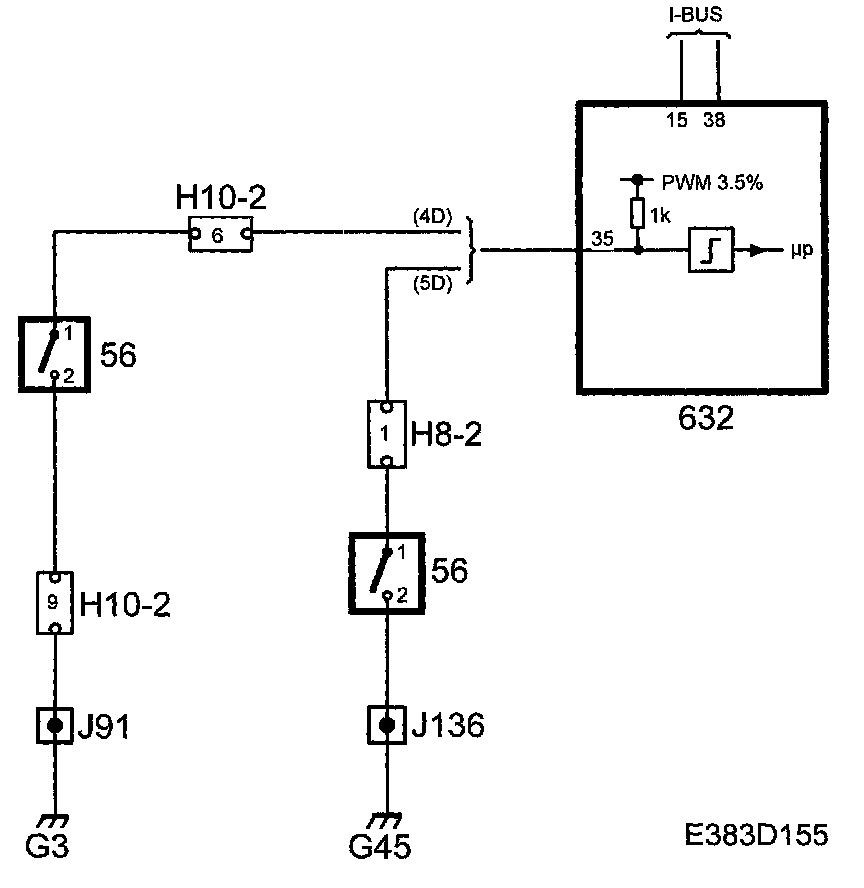

A continuous pulse width modulated (approx. 3.5%) voltage is supplied from the control module via a 1 kohm pull-up in TWICE to the switch. By checking this voltage on the control module input, the control module can monitor whether the boot lid/tailgate is opened while the alarm is armed.
