Immobilizer, Bus

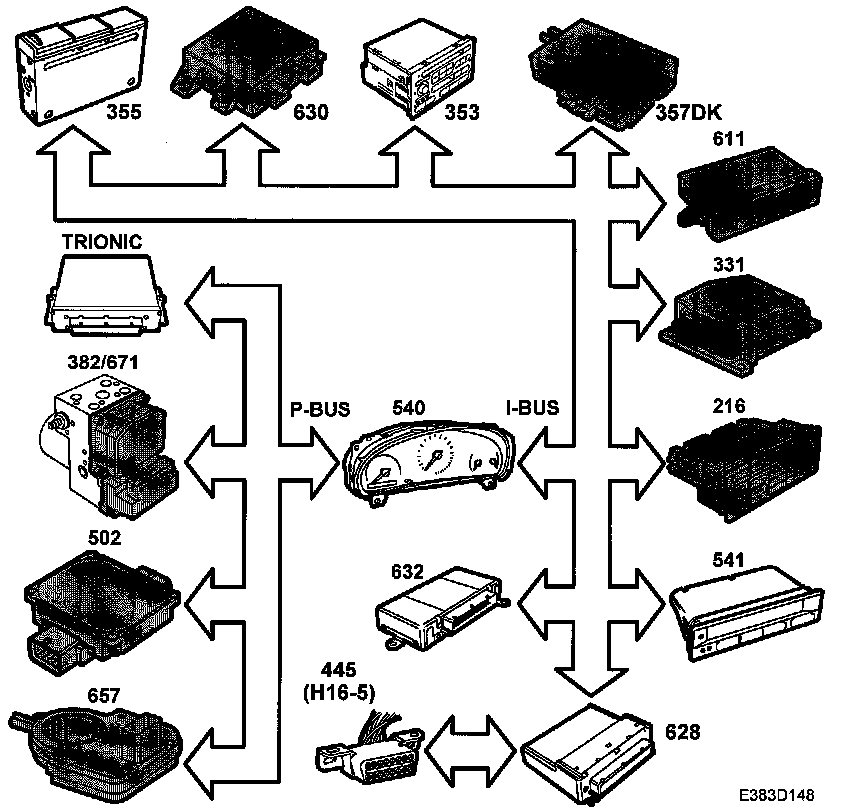

Control Module Outputs For The Immobilizer, Bus







^ Immobilizer (on/off) used by Trionic
^ Key Correct (on/off) used by Audio system (353), CD changer (355)
^ Text message used by SID (541)
^ Diagnostics communication

For a further description of the input information from the bus to the control module, see Bus messages.

For a further description of diagnostics, see Bus and diagnostics communication.
