Anti-theft Alarm, Bus

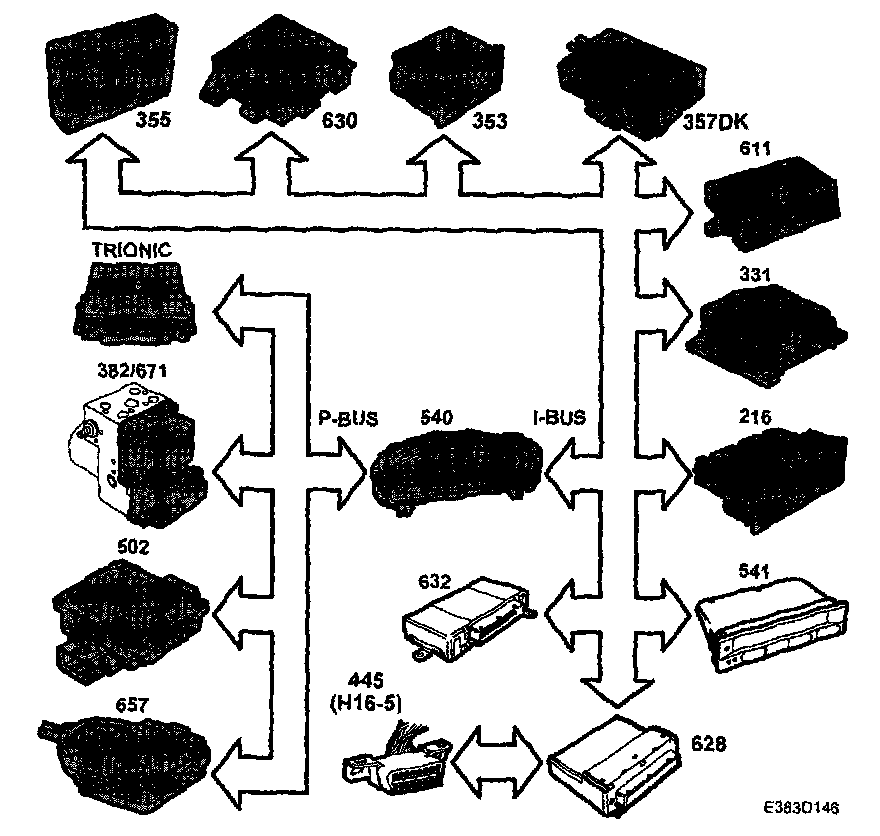

Control Module Inputs For Anti-theft Alarm, Bus







^ SID buttons (Night Panel) from SID (541)
^ Diagnostics communication

For a further description of the input information from the bus to the control module, see Bus messages.

For a further description of diagnostics, see Bus and diagnostics communication.
