Anti-theft Alarm

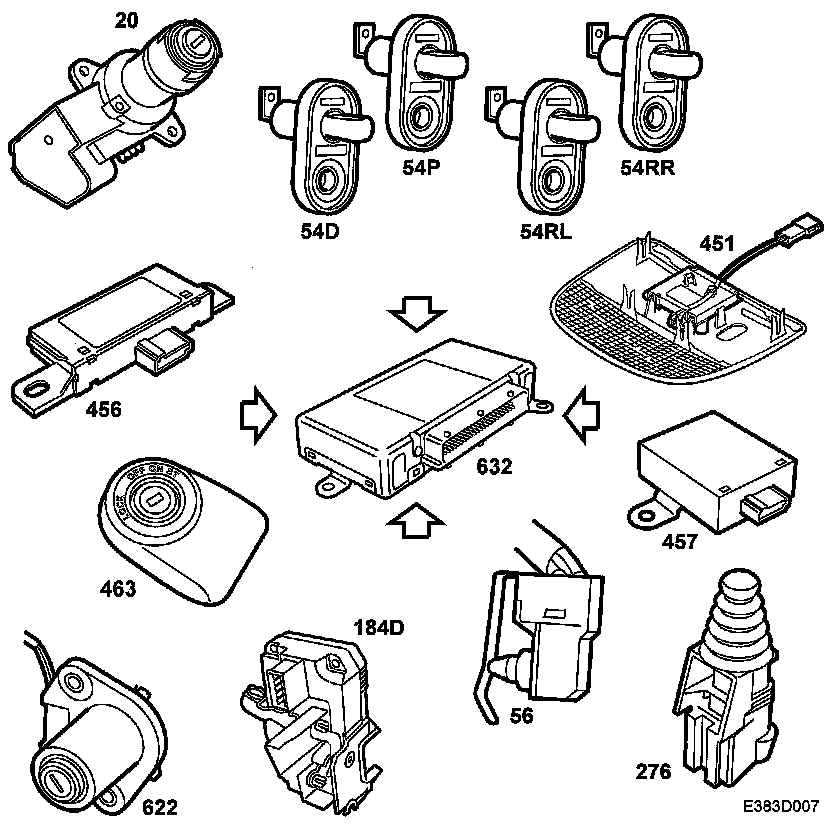

Control Module Inputs For The Anti-Theft Alarm







^ Key switch in driver's door (184D)
^ Door switch, front left (54FL)
^ Door switch, front right (54FR)
^ Door switch, rear left (54RL)
^ Door switch, rear right (54RR)
^ Bonnet switch, anti-theft alarm (276)
^ Switch, luggage compartment lighting (56)
^ Microswitch, tailgate lock (622)
^ Glass breakage sensor (451)
^ Tilt sensor (457)
^ Antenna, remote control (456)
^ Antenna unit, immobilizer (463)
^ Ignition switch (20)
