Anti-Theft Alarm - Wagon

Anti-Theft alarm (5D)

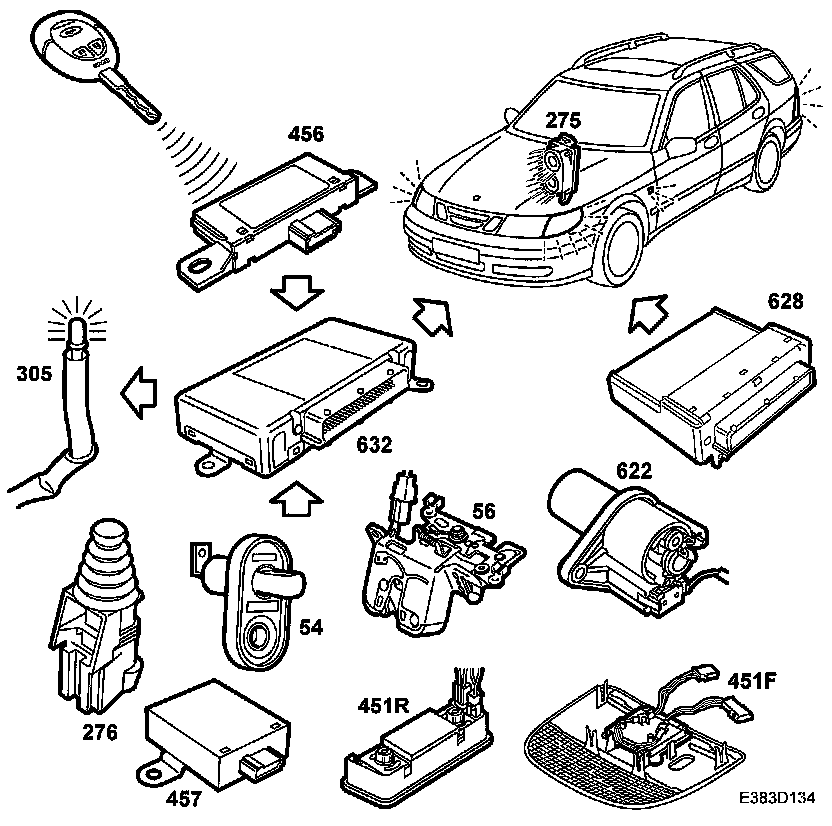

The following are used for the function of the anti-theft alarm:

Remote control for arming and disarming the anti-theft alarm via remote control antenna (456).

An LED (305) which shows the alarm status in various situations.

The following sensors which can detect a break-in situation:
^ Door switches (54)
^ Luggage compartment switch (56)
^ Microswitch in luggage compartment lock, US/CA/LA (622)
^ Bonnet switch (276)
^ Glass breakage sensor (451F, 451R)
^ Tilt sensor (457)

A siren (275) and direction indicators (27) which respectively sound and blink when an alarm is initiated (does not apply in certain markets from and including chassis No. 43013162).

A horn (40) and direction indicators (27) which respectively sound and blink when an alarm is initiated (certain markets from and including chassis No. 43013162)
