Removal and Replacement

Antenna Filter (4D)

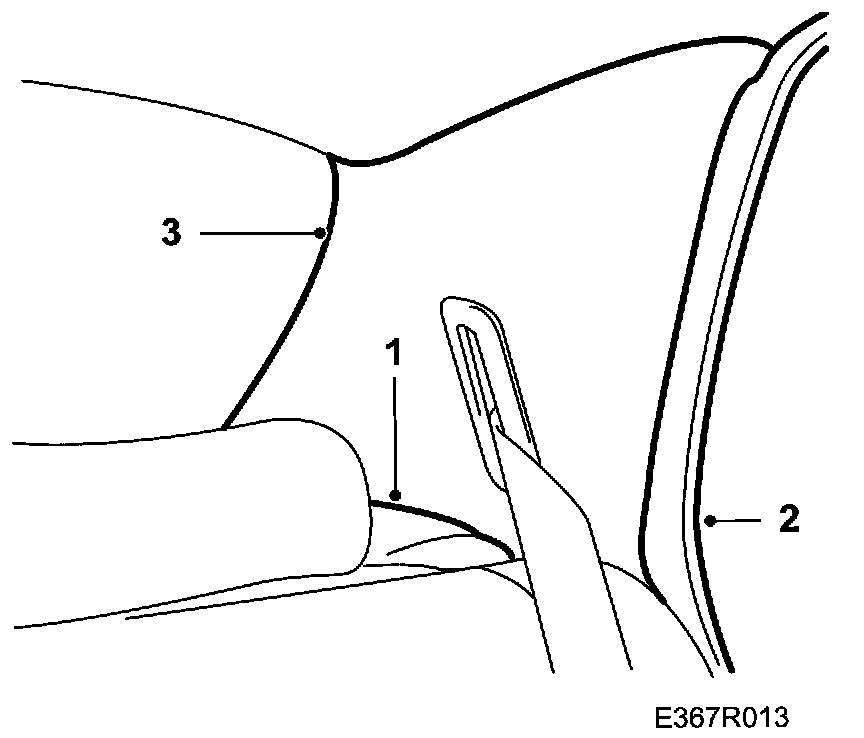

To remove







1. Remove the speaker grille on the left-hand side of the parcel shelf.
2. Remove the sealing strip.
3. Remove the trim on the left-hand C pillar to gain access to the antenna filter.

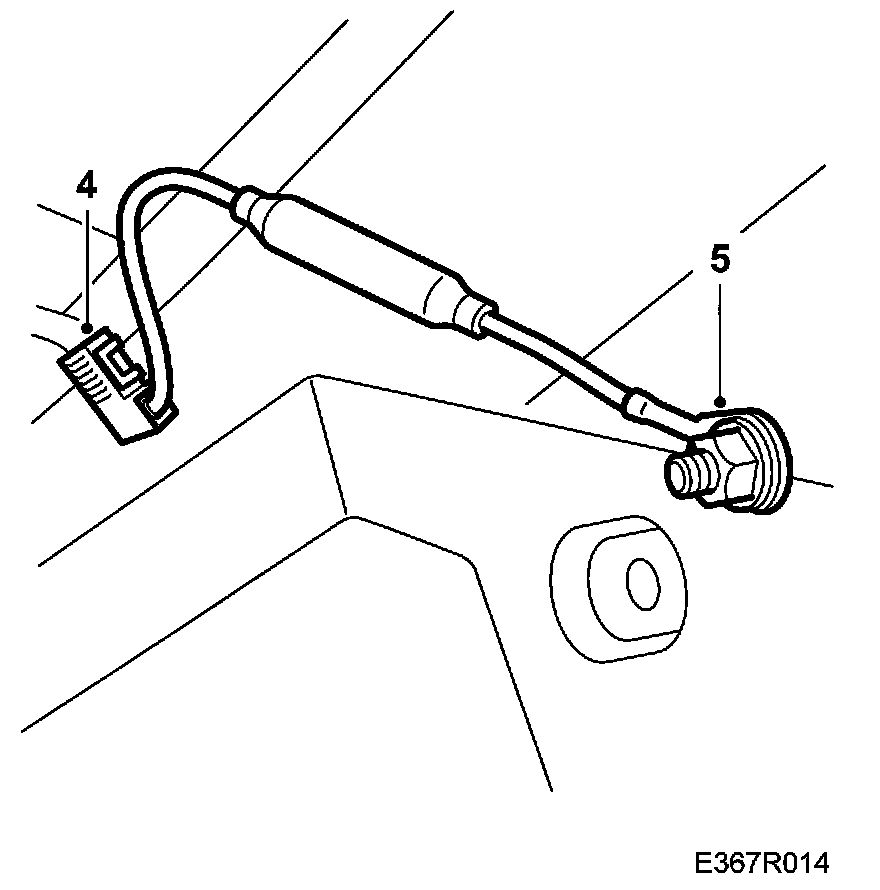

4. Undo the connection to the antenna filter.







5. Remove the screws holding the antenna filter and remove the unit.

To fit
Fit in reverse order.
