Home >> Saab >> 2005 >> 9-5 Linear (9600) L4-2.3L Turbo (2.3t) >> Parts and Labor >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Images

Images

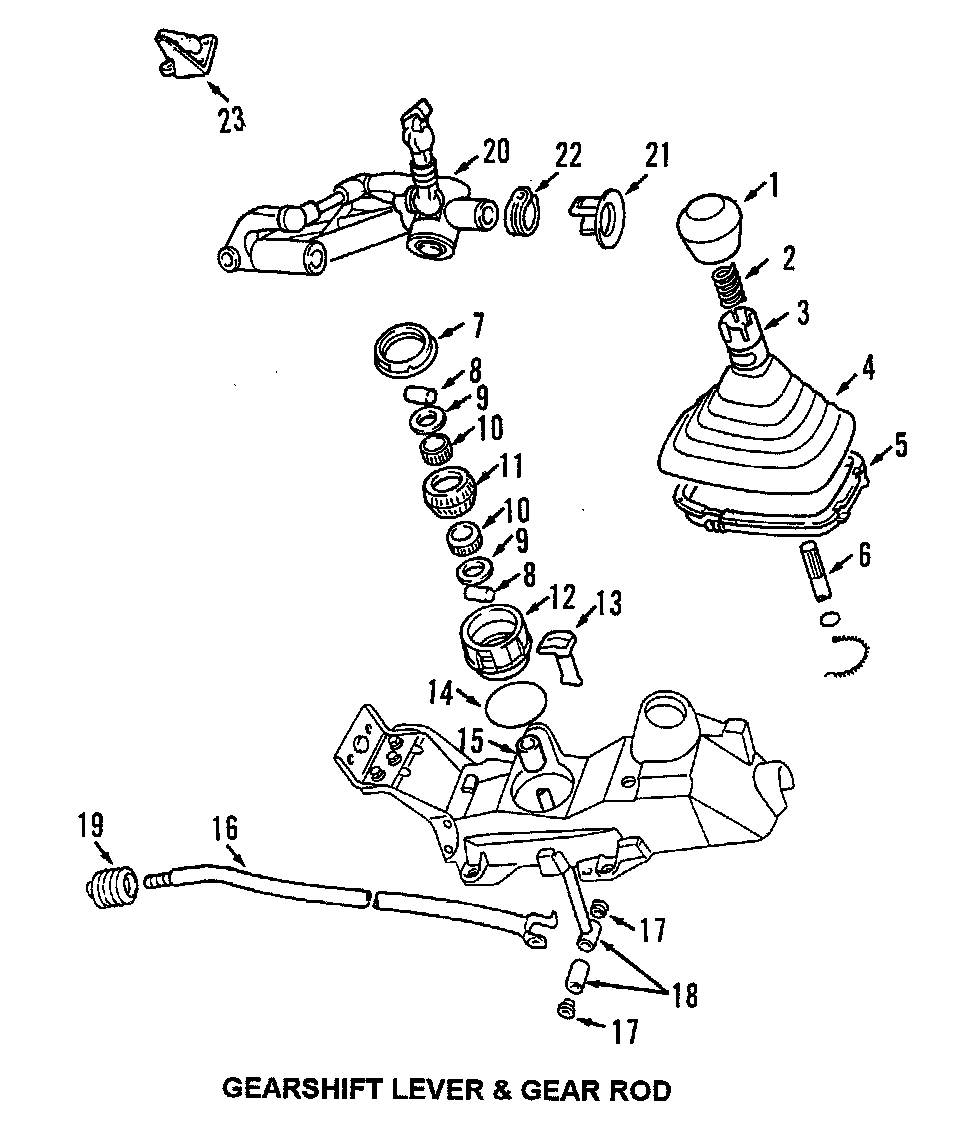

Gearshift Assembly:

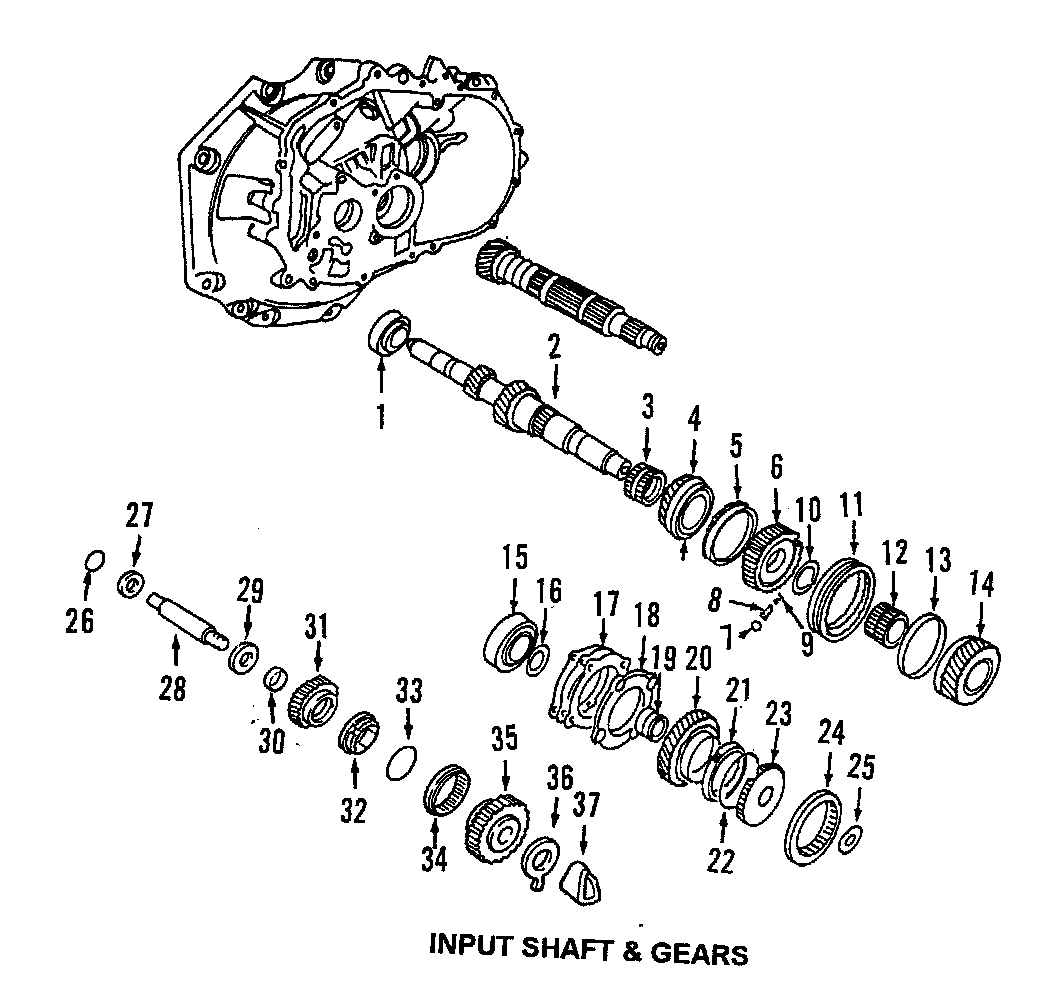

Input Shaft & Gears:

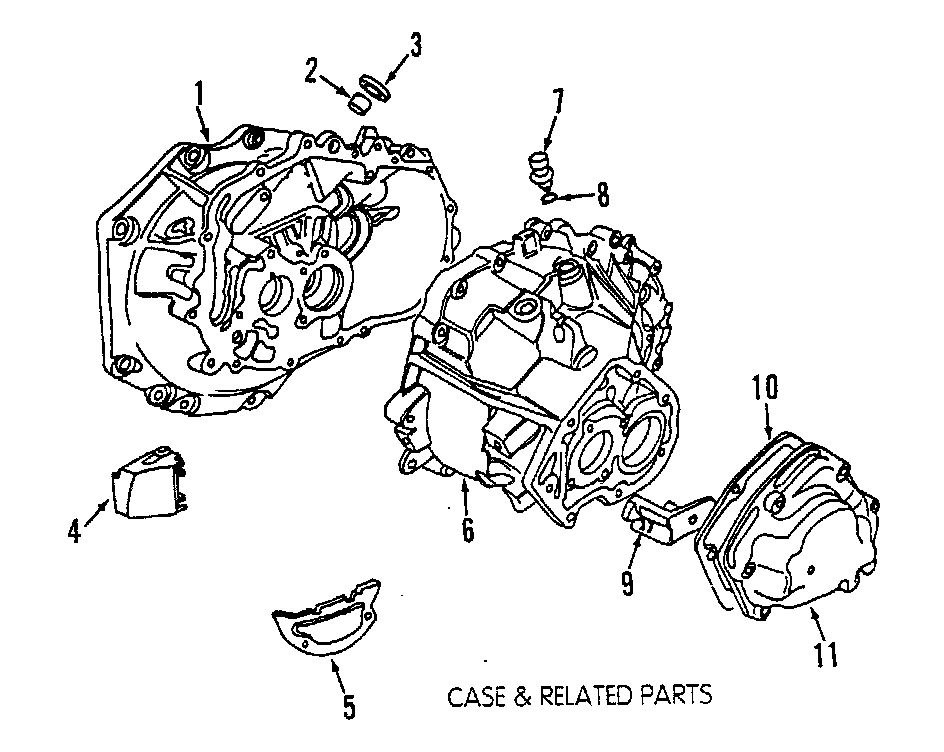

Case & Related Parts:

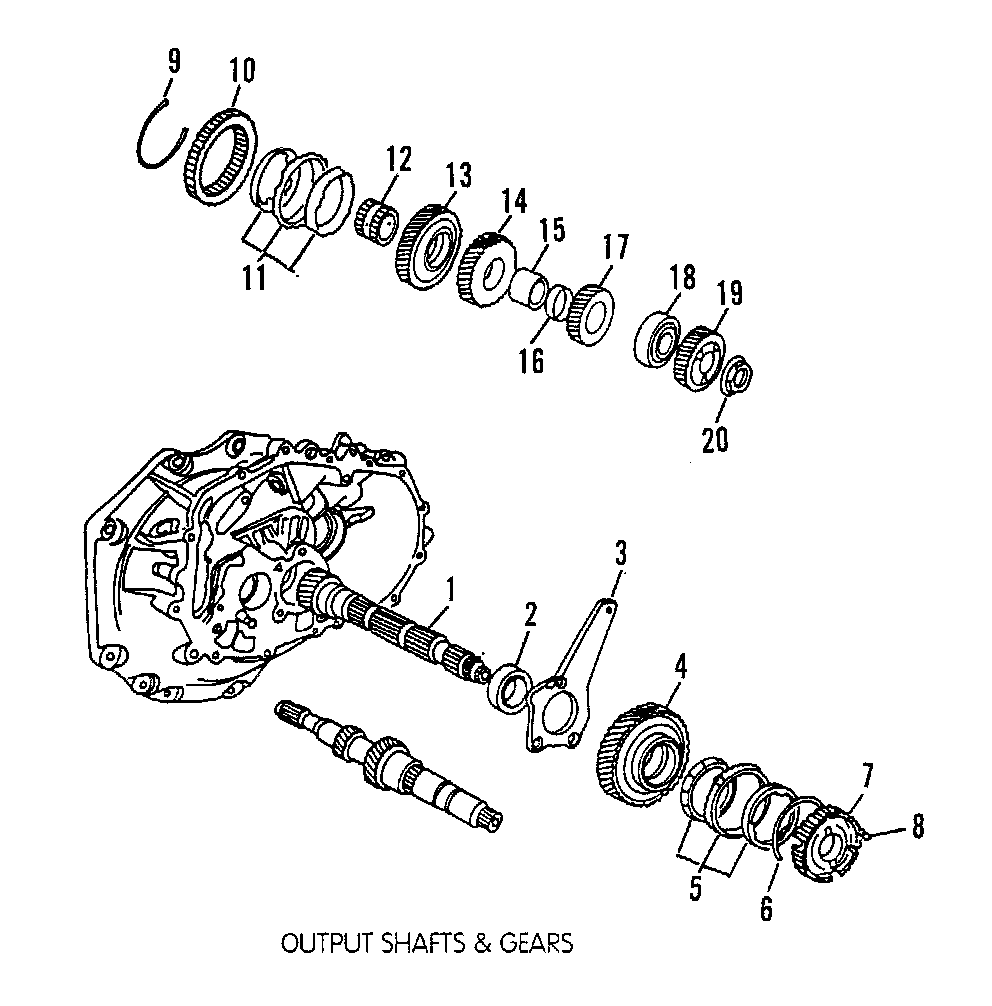

Output Shaft & Gears:

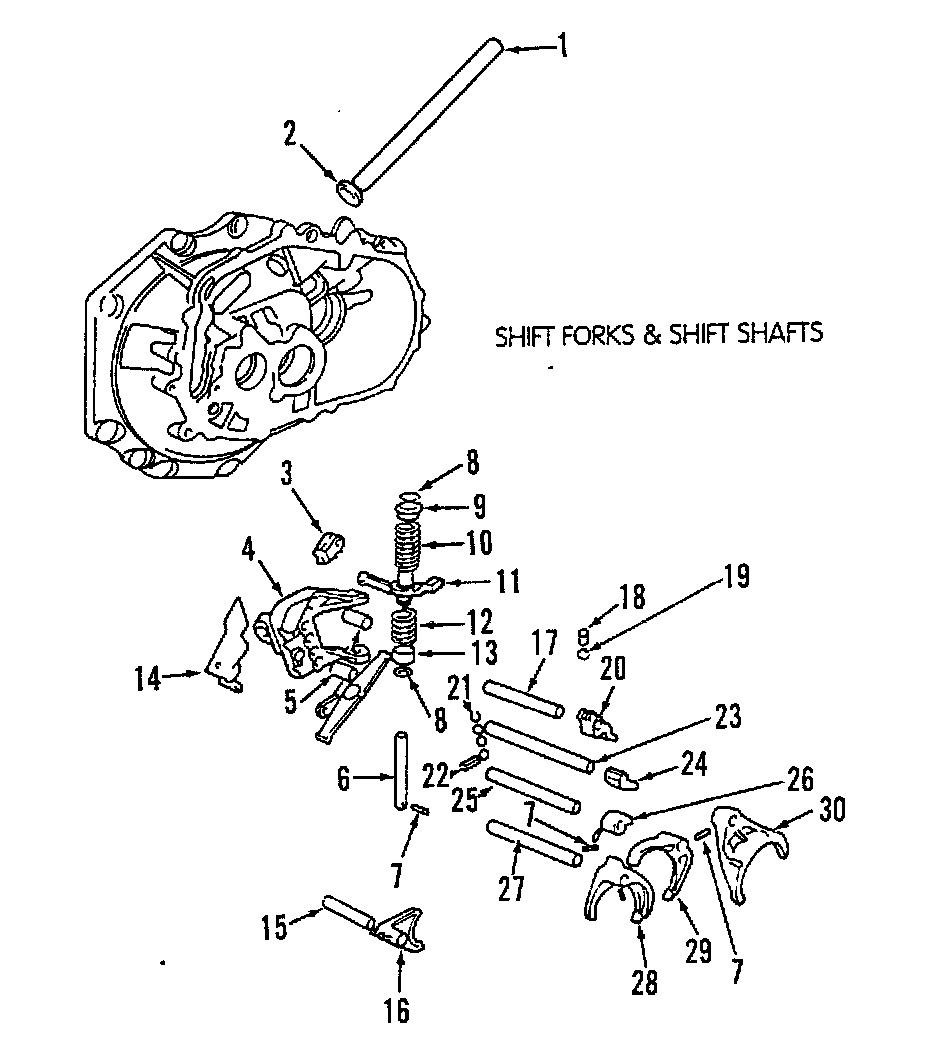

Shift Forks & Rails:
