Windshield Washer Pump: Service and Repair

Washer Pump, Windscreen

To remove
1. Empty the washer fluid reservoir of washer fluid.

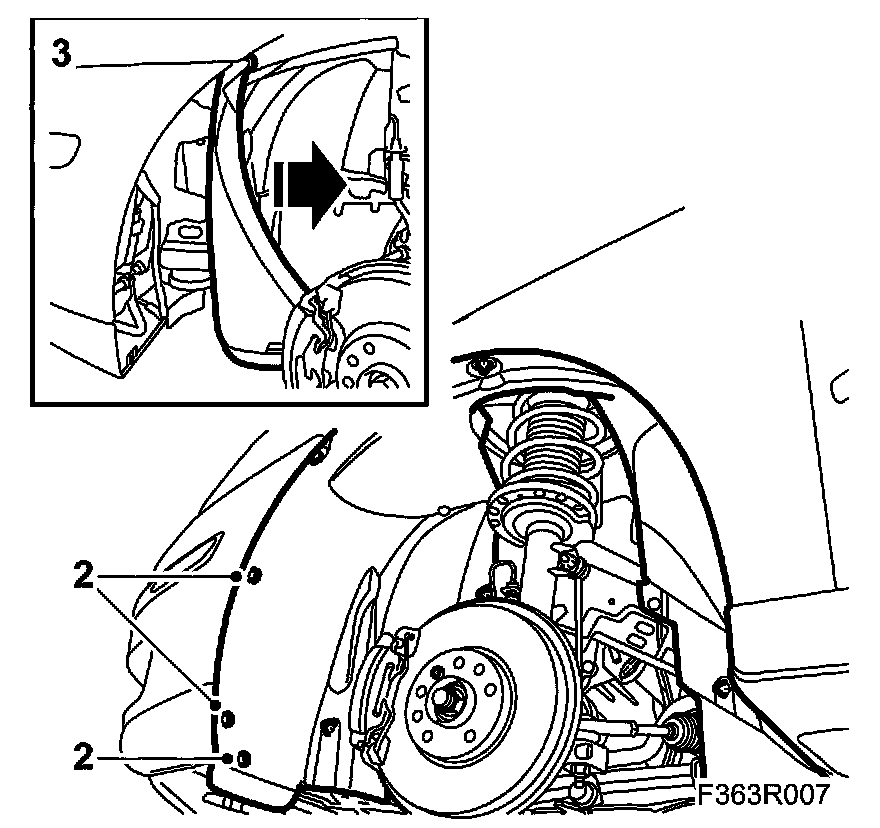

2. Remove the screws from the wing liner.







3. Push aside the wing liner.
4. Free the washer pump from the reservoir.







5. Unplug the washer pump.
6. Disconnect the hose from the washer pump.

To fit
1. Fit the hose to the washer pump.







2. Plug in the washer pump.
3. Fit the washer pump to the reservoir.

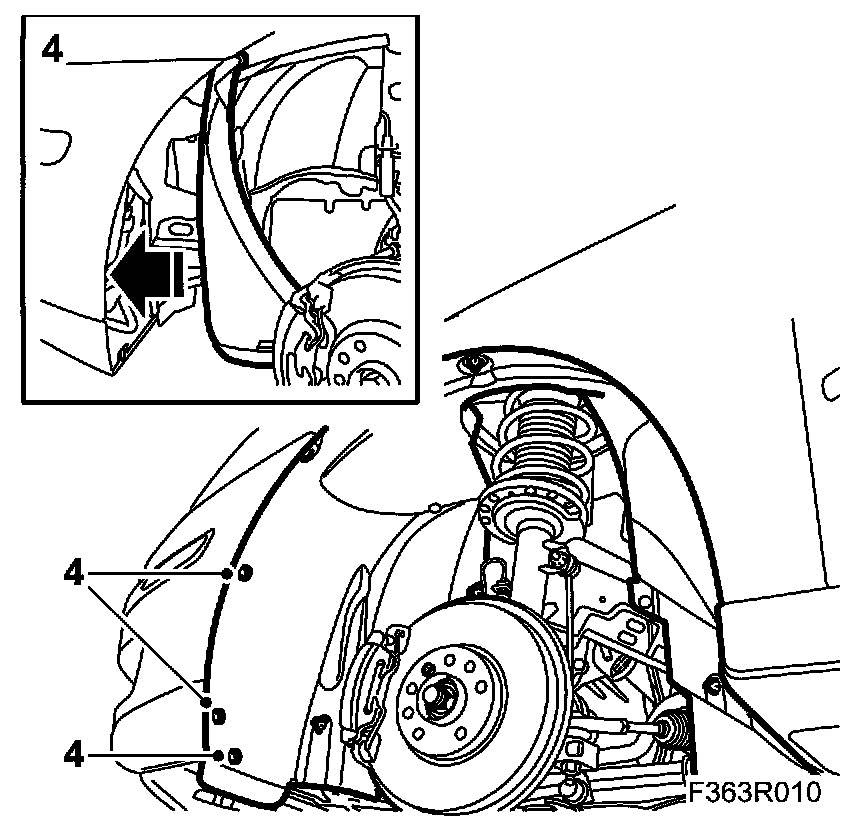

4. Re-position the wing liner and fit the screws.







5. Fill the washer fluid reservoir with washer fluid.
6. Test the function.
