Headlamp Washer Spray Nozzle: Service and Repair

Washer Nozzle, Headlamp

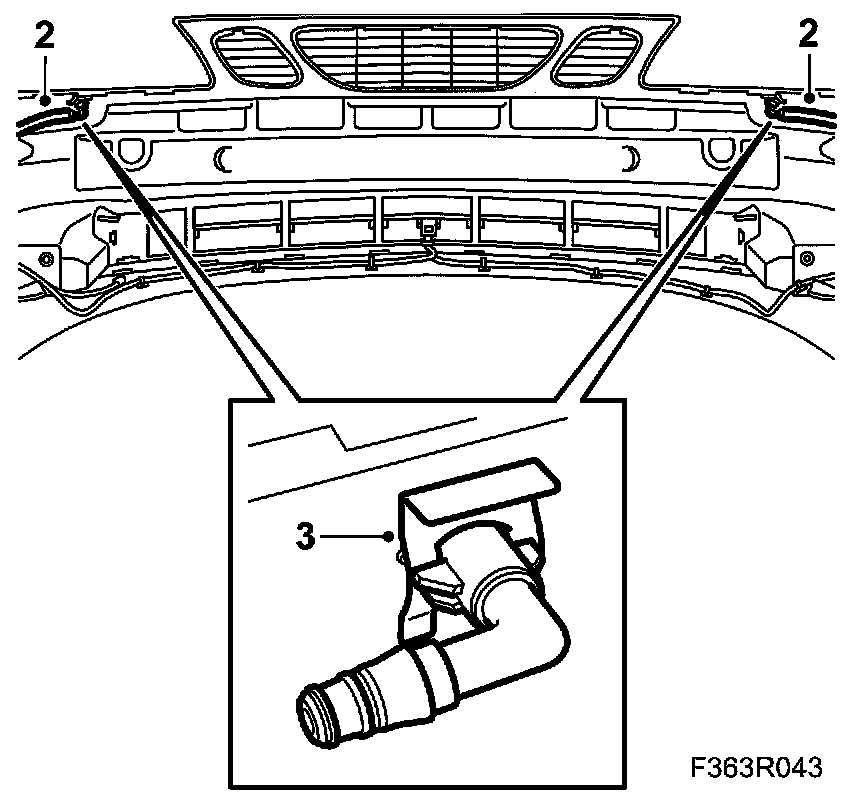

To remove
1. Remove the front bumper shell.
2. Disconnect the washer hose.







3. Undo the clip and remove the washer nozzle.

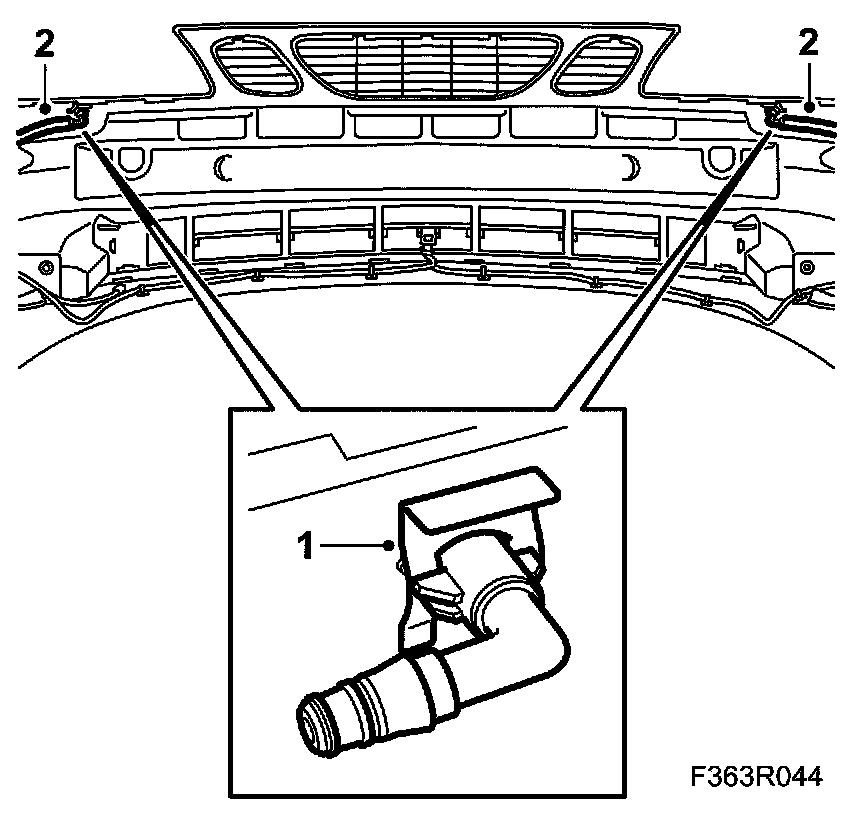

To fit
1. Fit the washer nozzle and clip to the bumper shell.







2. Fit the washer hose.
3. Fit the front bumper shell.
4. Check that the headlamp washers work correctly.
