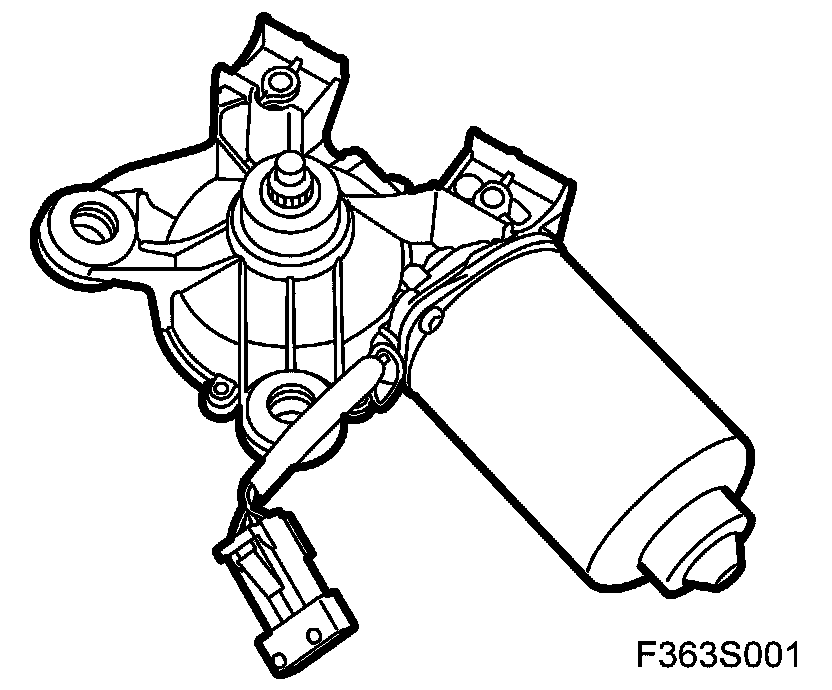

Windscreen Wiper Motor (62F)
Windscreen Wiper Motor (62F)
Location
Main task
The motor operates the wiper arms via an arm construction that translates motor rotation into wiper movements.
Type
DC motor with thermal overload protection. The overload protection triggers if the lever is activated and the blade is blocked.

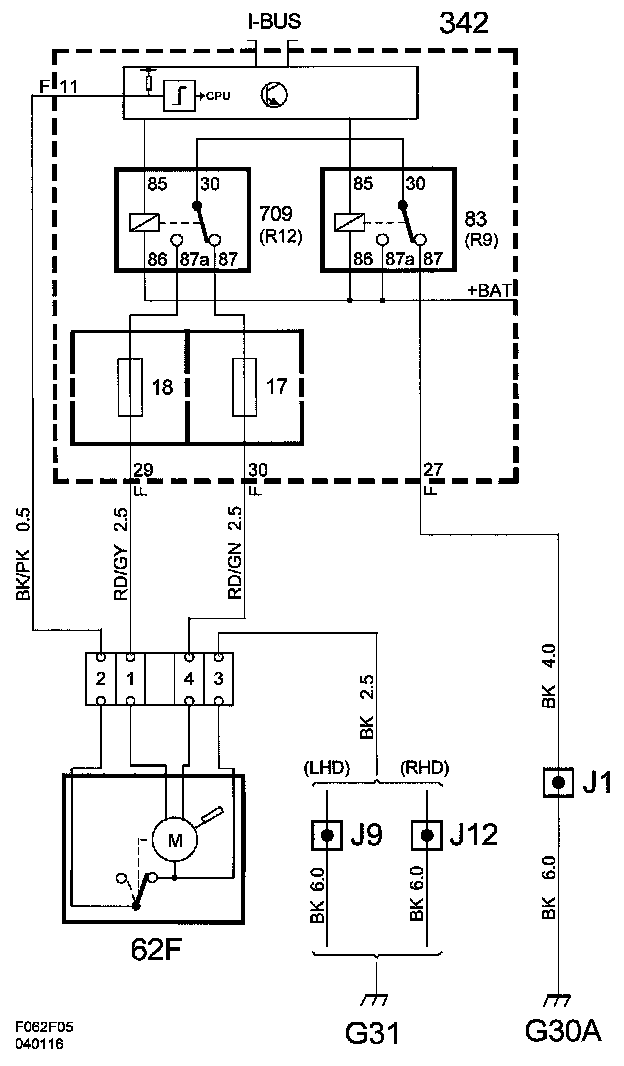

Connection

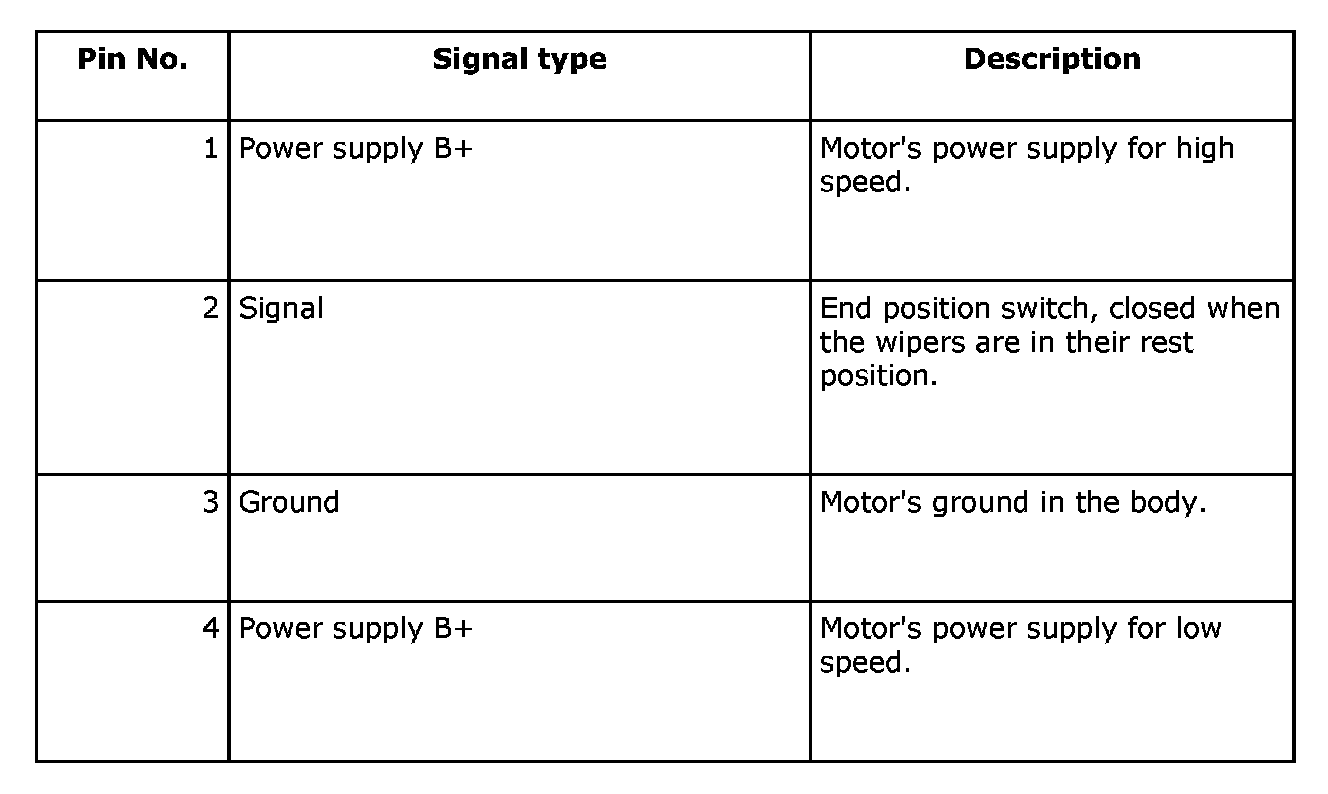

Pin No. 1 - 4:
