Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Wiper and Washer Systems >> Description and Operation >> Detailed Description >> Washer Fluid Level Switch (195)

Washer Fluid Level Switch (195)



Washer Fluid Level Switch (195)

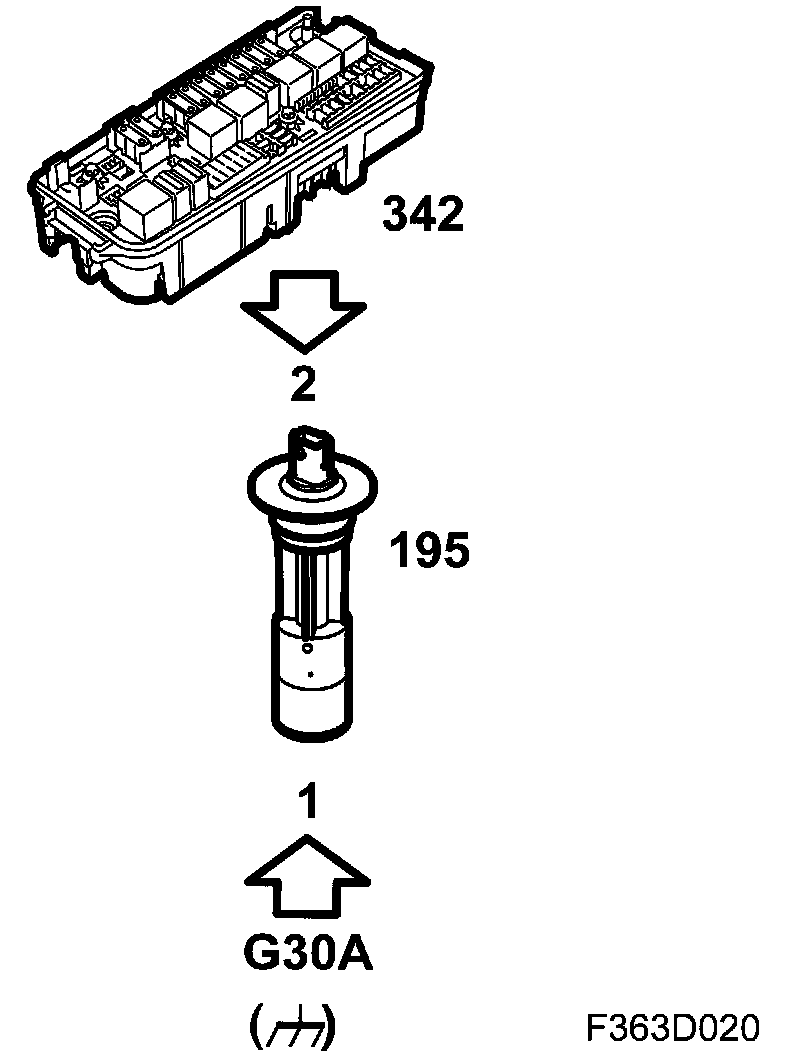

Location







Main task
Inform the driver that the washer fluid level is low.

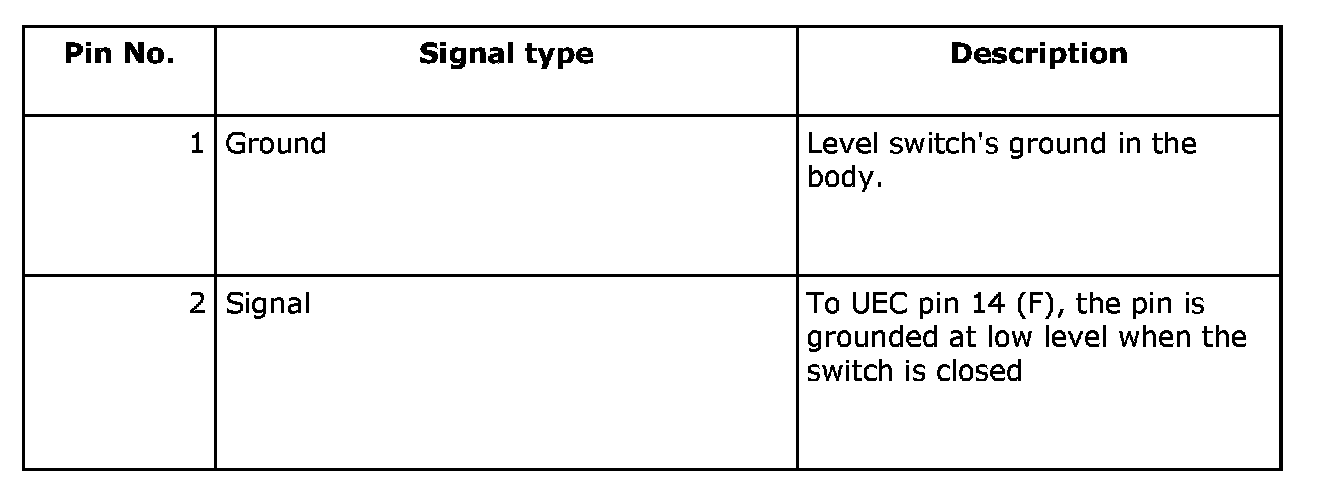

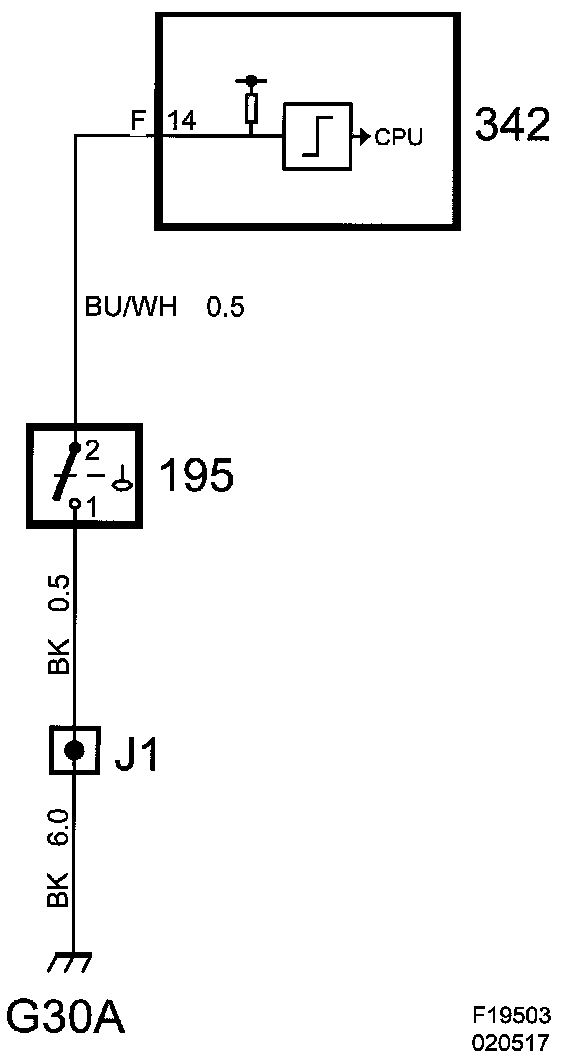

Connection


Pin No. 1 - 2:
