Inner Weatherstrip, Rear Side Window, CV

Inner Weatherstrip, Rear Side Window, CV

To remove

1. Open the side window fully.
2. Remove Backrest, rear seat, CV, Seat cushion, rear seat, CV and Rear side trim, CV

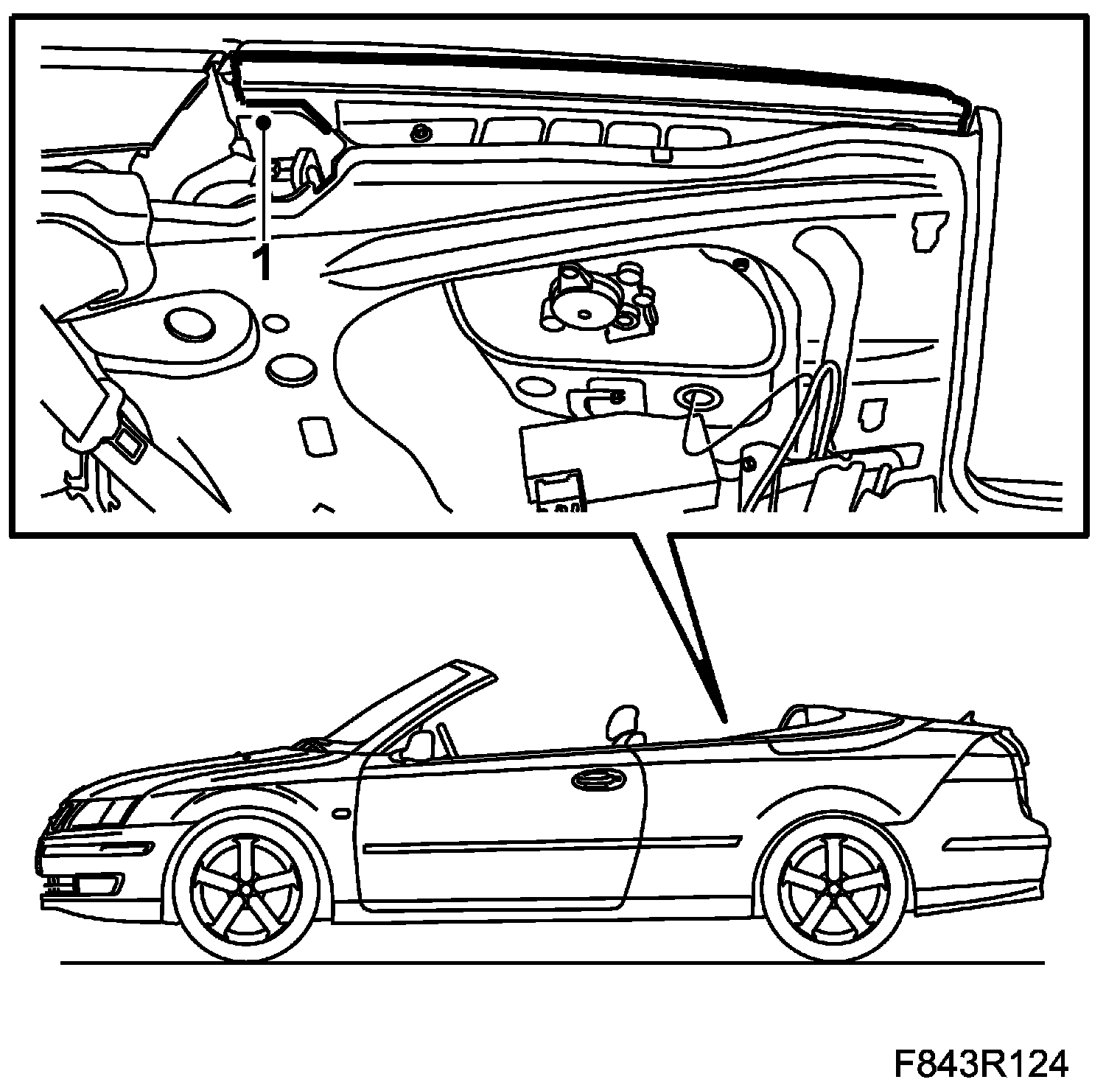

3. Lift up and remove the inner weatherstrip.





To fit

1. Locate and fit the inner weatherstrip in position.





2. Fit Rear side trim, CV, Backrest, rear seat, CV and Seat cushion, rear seat, CV
3. Cars with pinch protection: Perform Calibration of pinch protection.
