Electric Window Lift, RL

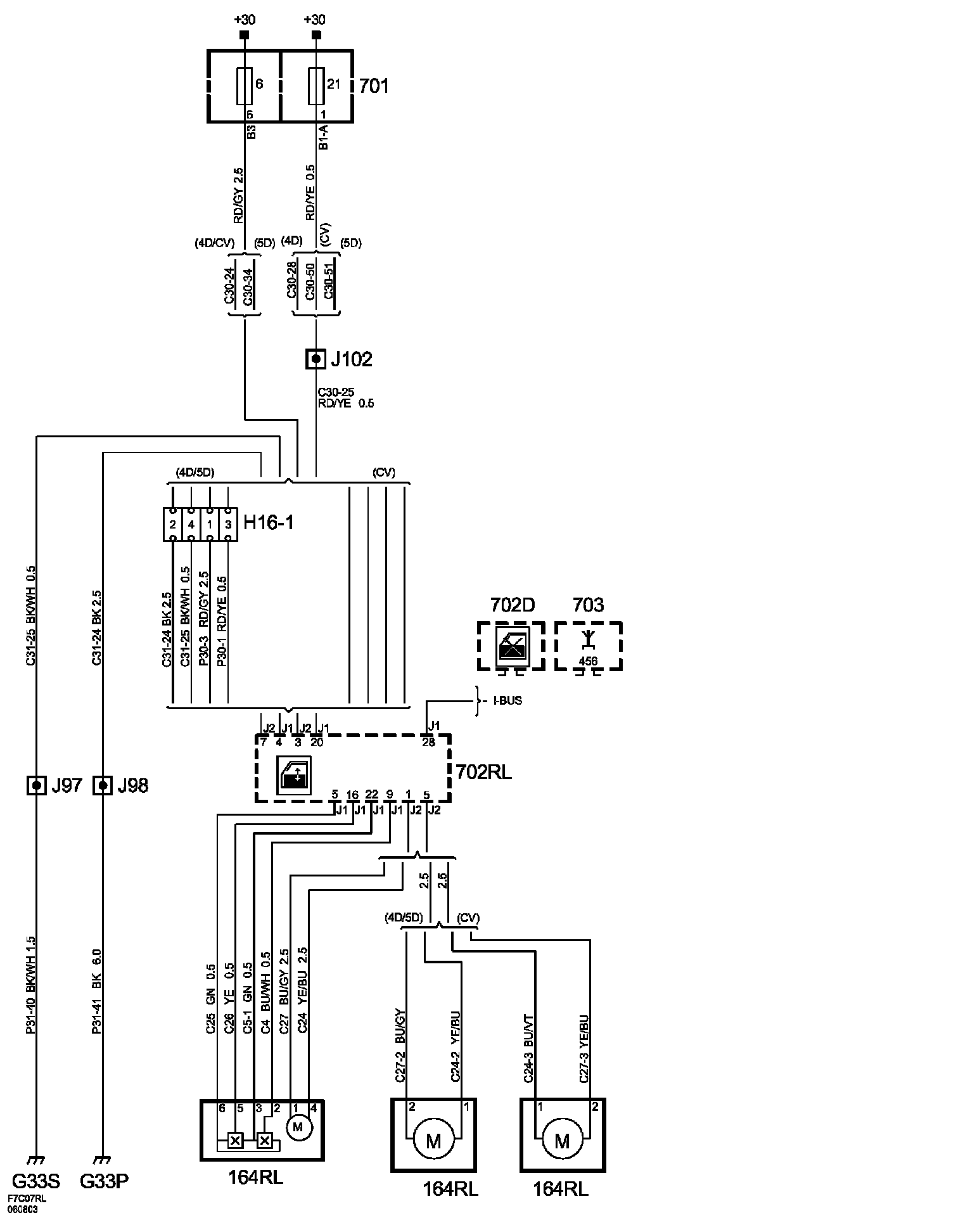

Electric Window Lift, RL:

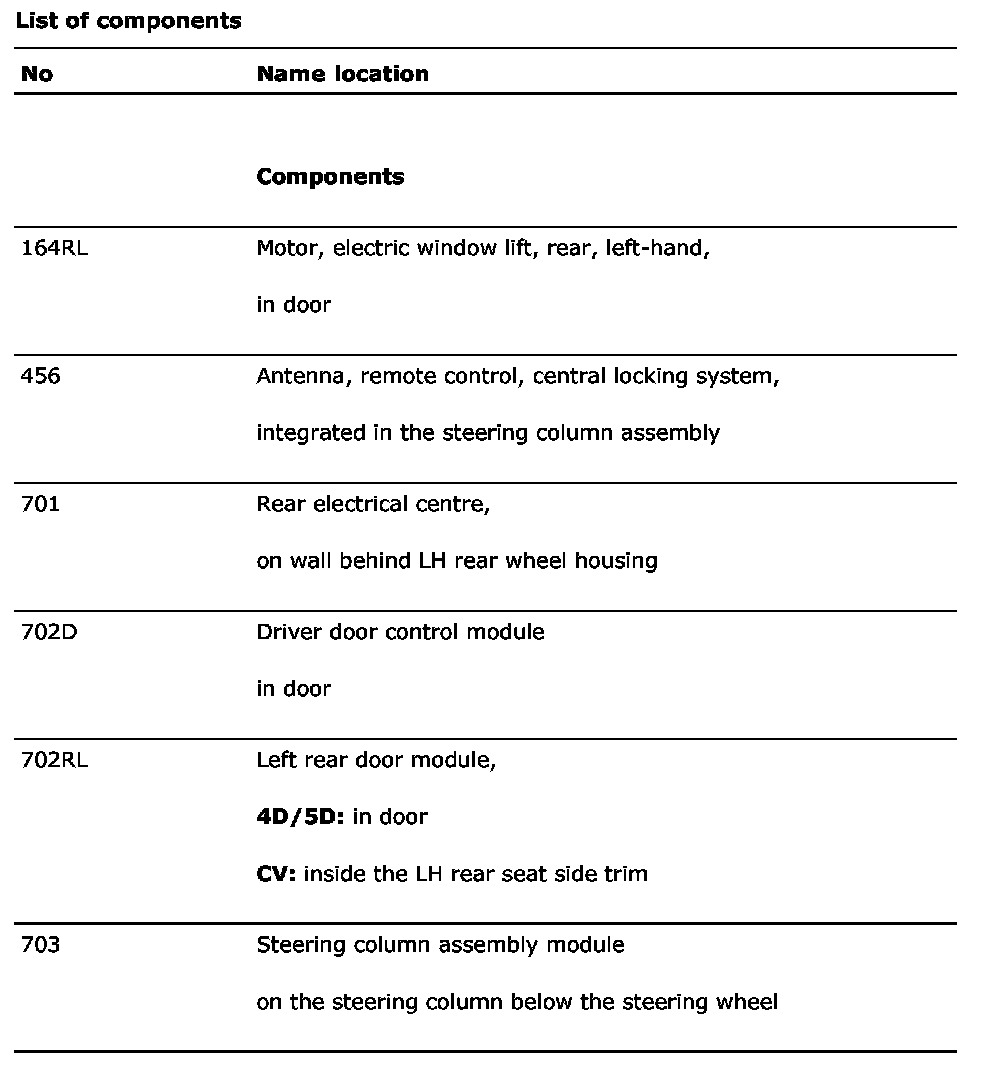

List of Components (Part 1):

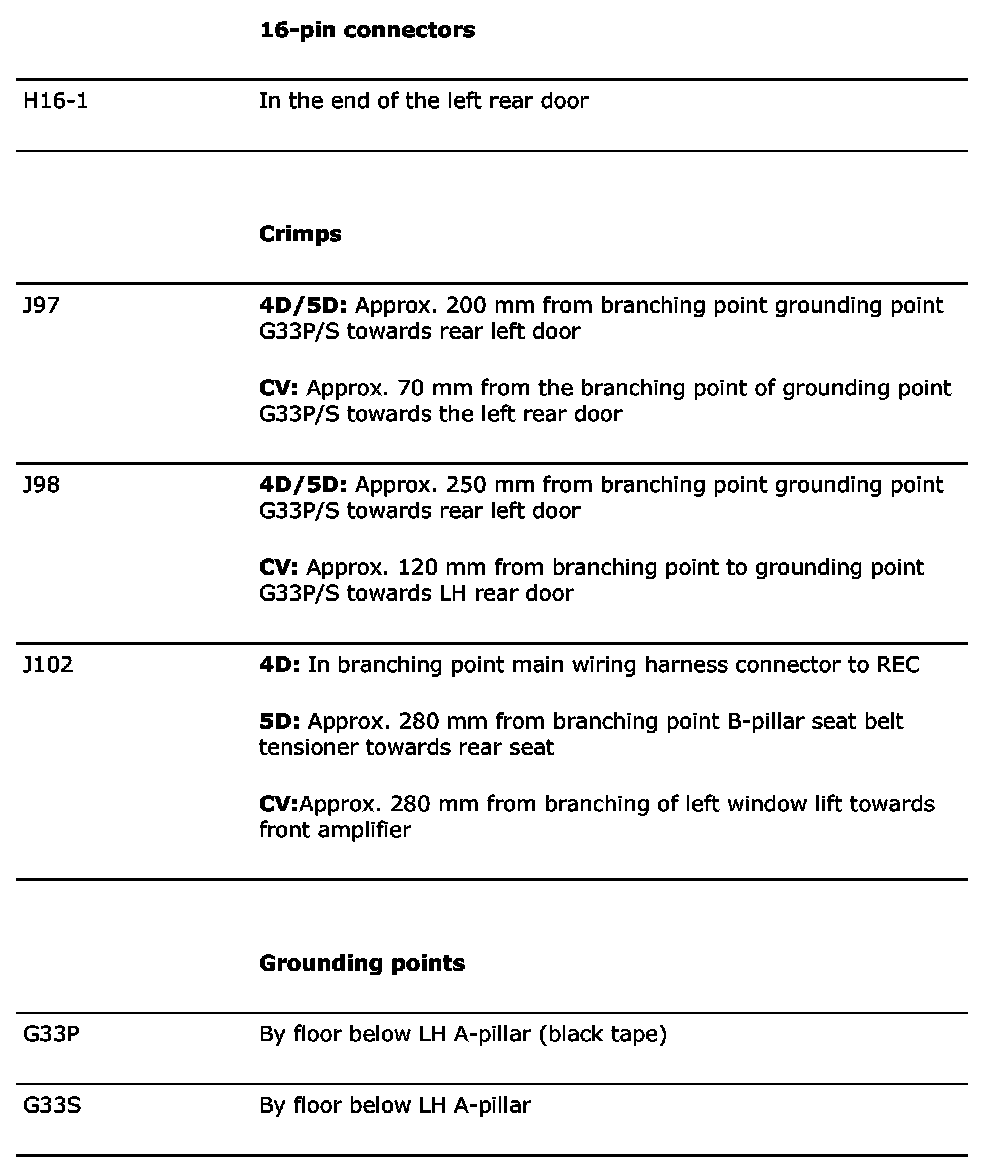

List of Components (Part 2):
