Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Connector Views >> Motor, Electrically Operated Window Lift, Rear, Left Hand (164RL) - Convertible

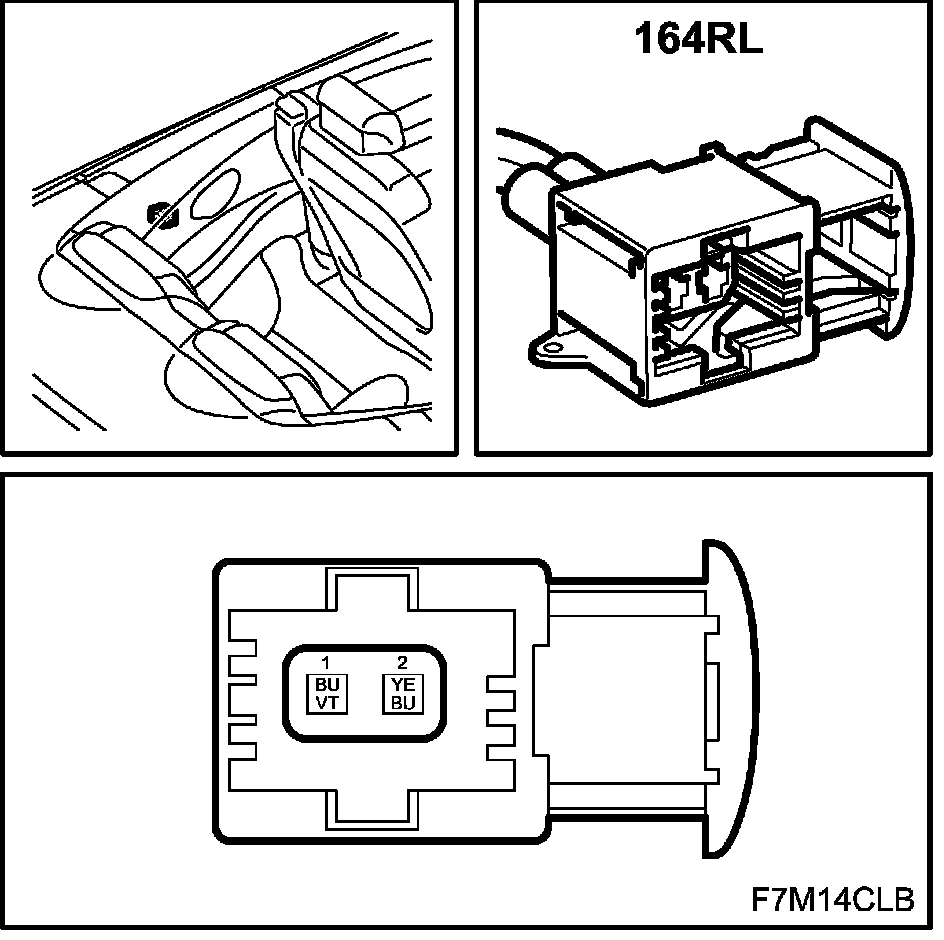

Motor, Electrically Operated Window Lift, Rear, Left Hand (164RL) - Convertible





Motor, Electrically Operated Window Lift,Rear, Left Hand (164RL)

Location: In the door.
