Selector Lever

Selector lever

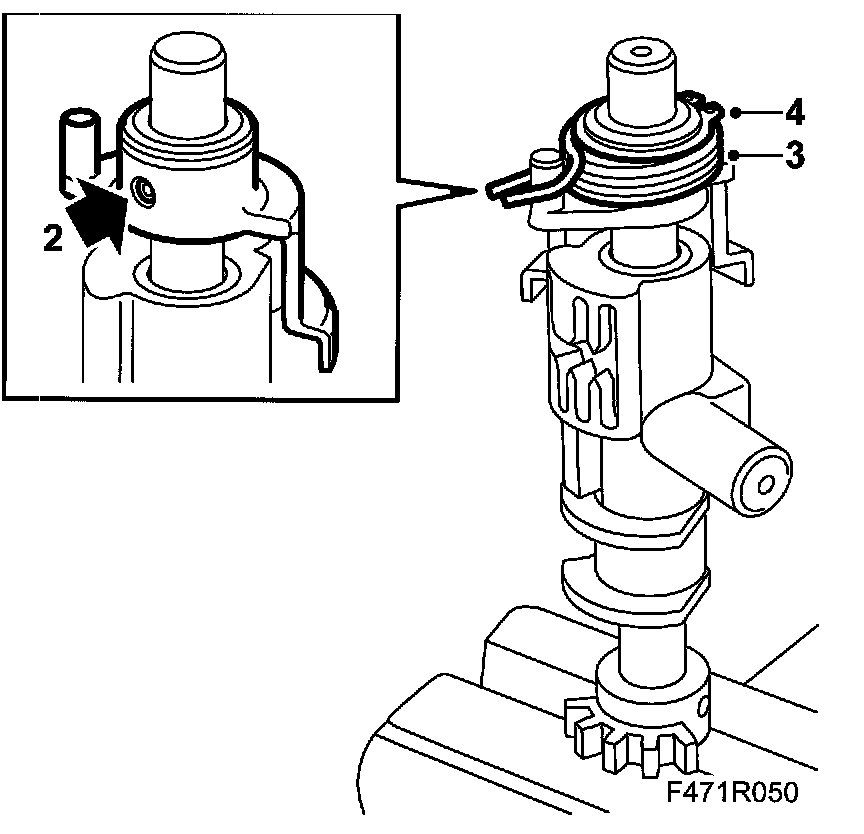

To dismantle





1. Remove the gear selector mechanism lock ring, preload washer and torsion spring.
2. Tap out the retention pin and remove the dual interlock.





3. Remove the gear position guide.

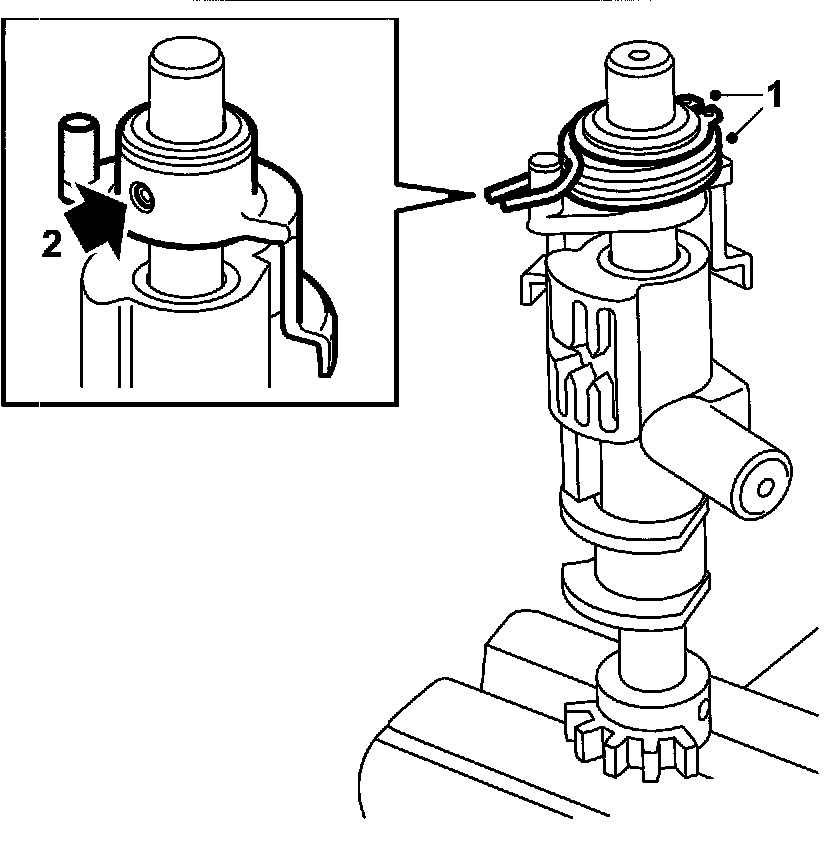

To assemble

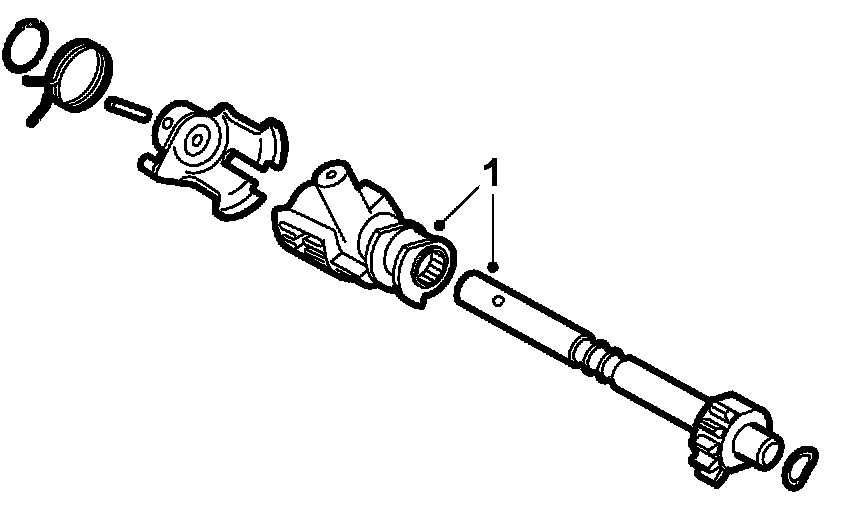

1. Fit the gear position guide on the shaft. Press the shaft until the middle groove is located centrally on the opening in the gear position guide.





2. Fit the dual interlock on the shaft and tap in a new retention pin.
3. Fit the tension spring taut with the spring ends on each side of the pin.
4. Fit the lock ring. Do not put on the preload washer until the gear-changing mechanism has been fitted in the gearbox.
