MT6

Adjusting gear cables

Adjustment
1. Engage neutral gear.

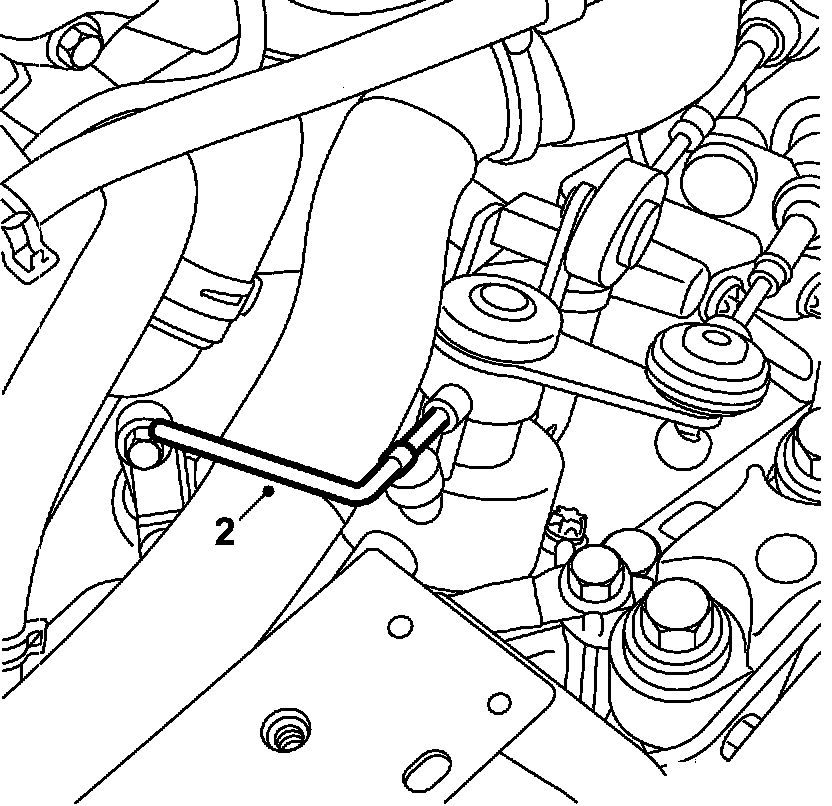

2. Lift in the selector shaft slightly and insert 87 92 335 Lock pin into the hole in the shaft.

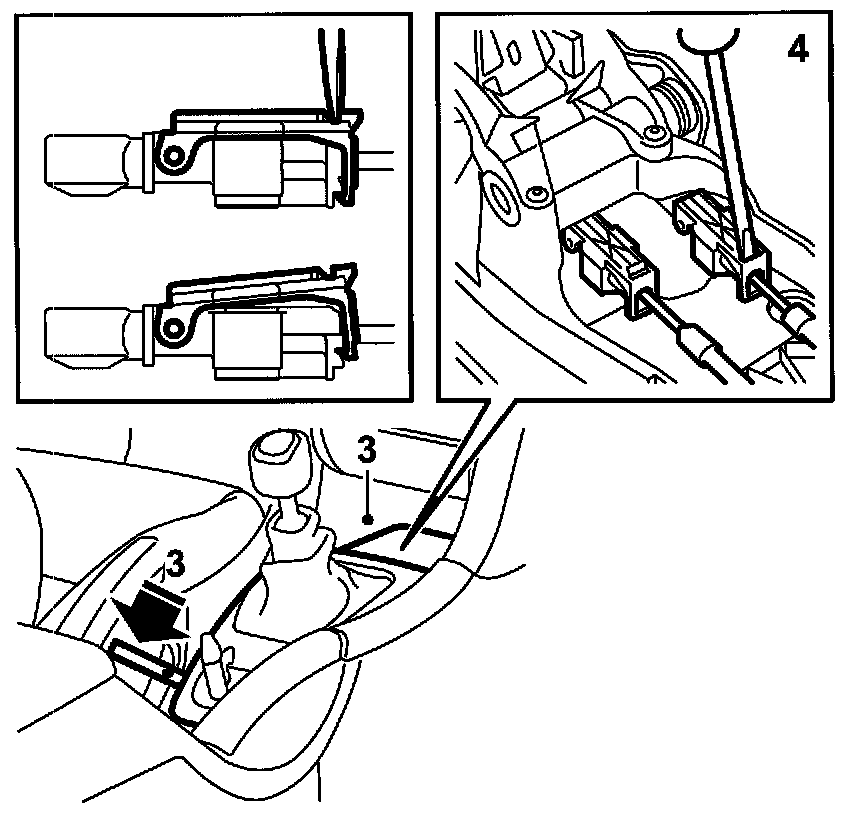

3. Detach the gear lever cover and rubber mat and lift up the cover. Use 82 93 474 Removal tool.
4. Carefully press a screwdriver blade onto the cable adjuster and pry slightly towards the gear lever. A click is heard which means that the adjustment catch has released. Repeat the procedure on the other cable adjuster.





5. Lock the gear lever in adjustment position by lifting the adjusting sleeve and pushing the two catches in at the same time. Use suitable pliers. Carefully release the adjusting sleeve downward and allow the catch to enter the recess in the gear lever housing (adjustment position).

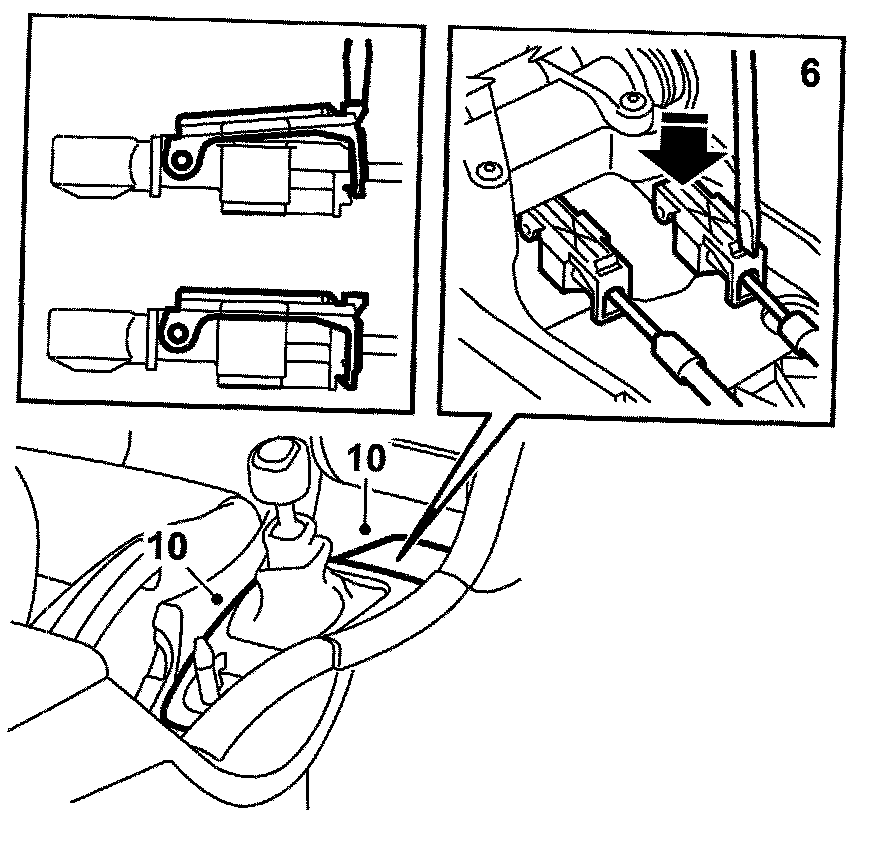

6. Hold in the gear lever and move it to the left. Hold it in this position and at the same time press the screwdriver against the crescent shaped section of the adjustment catch. When a click is heard the catch has engaged the correct position. Repeat for the other cable adjuster.
7. Lift up the adjusting sleeve to its normal position and make sure the catches lock
8. Remove the lock pin.





9. Check the shifting positions.
10. Fit the gear lever cover and rubber mat.
