Refilling With Gearbox Oil

Refilling with gearbox oil

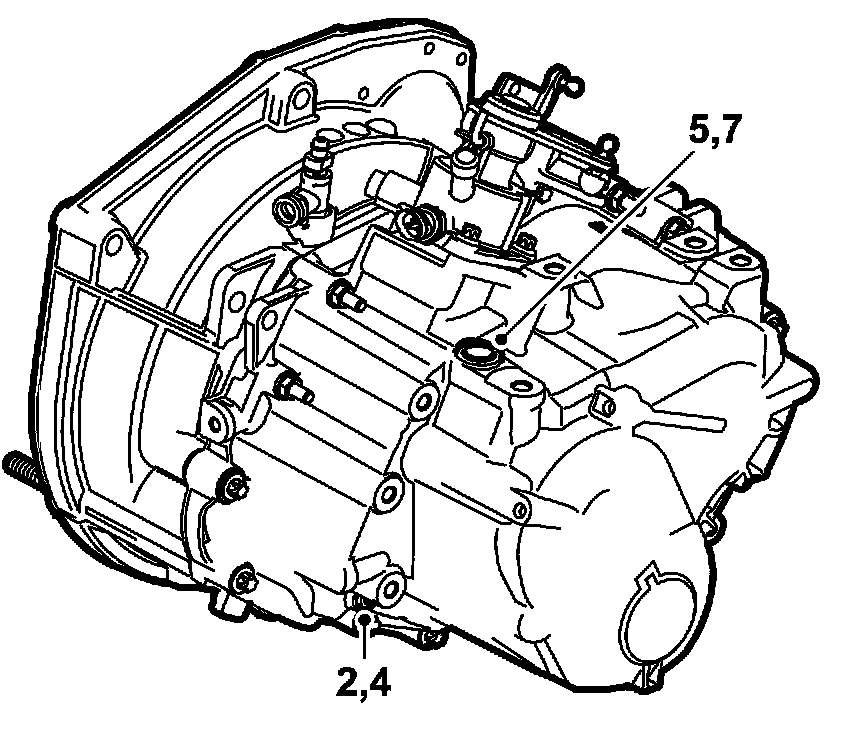

The gearbox has no level plug. In order to ascertain the level the gearbox must first be drained at the drain plug.
1. Remove the filler plug.
2. Fill with 31 oil in accordance with Summary of lubricants and sealants





3. Fit the filler plug.
Tightening torque 45 Nm (33 ft. lbs.)
