Refilling With Gearbox Oil

Refilling with gearbox oil
1. Raise the car.

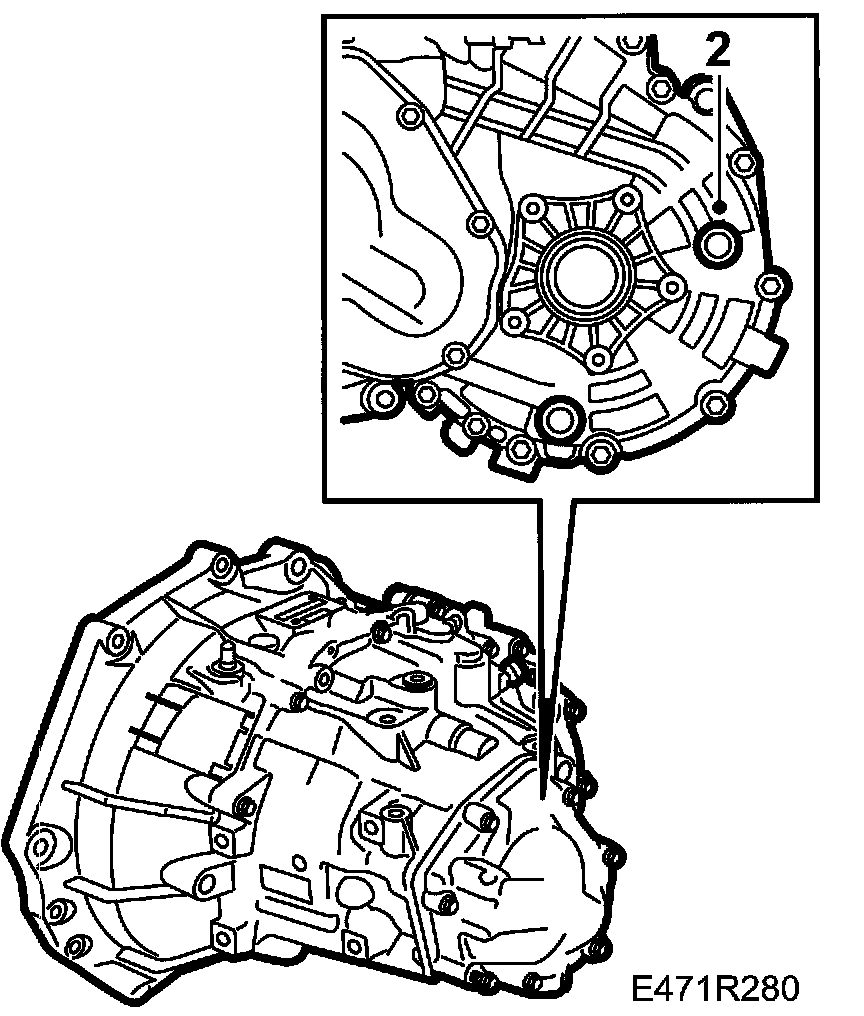

2. Remove the oil level plug.
3. Fill with oil up to the level plug. Use 87 92 822 Oil filler funnel. See Summary of lubricants and sealants.
4. Fit the level plug.
Tightening torque 50 Nm (37 ft. lbs.)
5. Lower the car to the floor.
