System Overview Selector Lever

System Overview Selector Lever

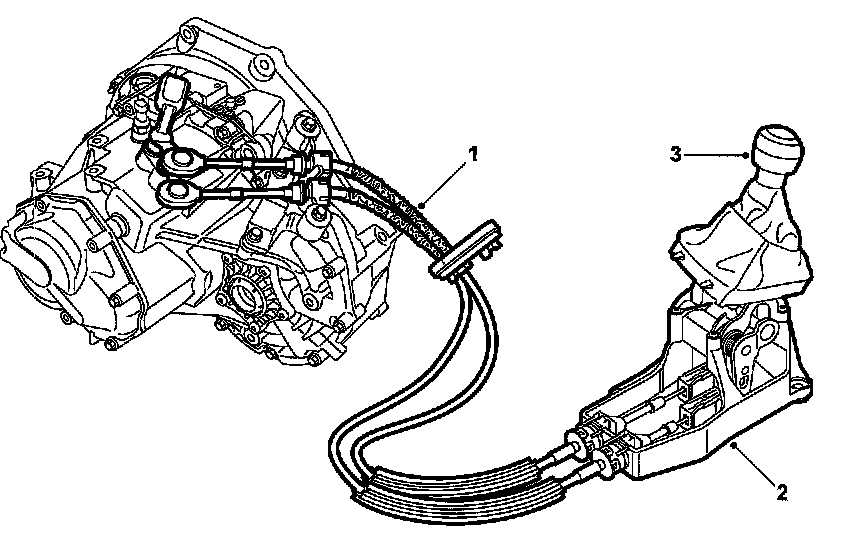

Gate positions are as shown on the gear lever knob.
1. Cable arrangement
2. Gear lever housing
3. Gear lever

Transfer of power from gear lever to gearbox takes place via two cables which transfer both torque and transverse shearing force with minimum possible friction in order to attain low shifting forces. This design completely eliminates movements and vibrations from the drive unit to the gear lever and body.
