Drive Shaft Seal, Right-Hand

Drive Shaft Seal, Right-Hand

Changing In Car

To Remove
1. Remove the intermediate shaft. See Intermediate shaft or Intermediate shaft, Z19.

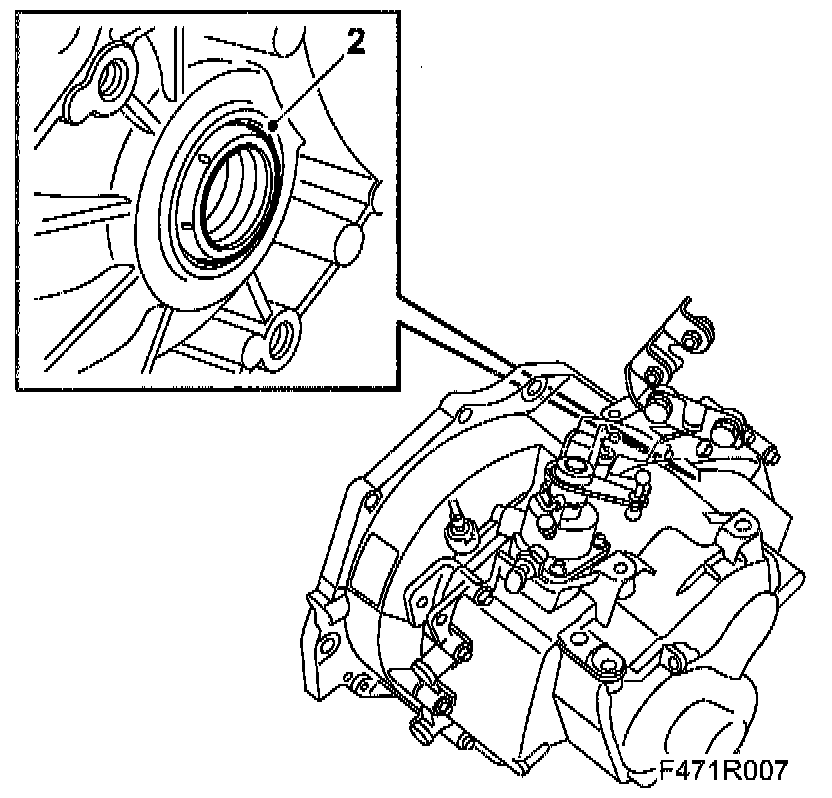

2. Remove the seal using a large screwdriver.

Note: Take care not to scratch the hole in the gearbox for the drive shaft seal.

To Fit
1. Knock in place the new seal using
Man: 87 92 657 Fitting drift, drive shaft seals.
Aut 6-speed: 32 025 025 Fitting drift, drive shaft seal






2. Fit the intermediate shaft. See Intermediate shaft or Intermediate shaft, Z19.
