Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> Detailed Description >> TCM, Bus Information

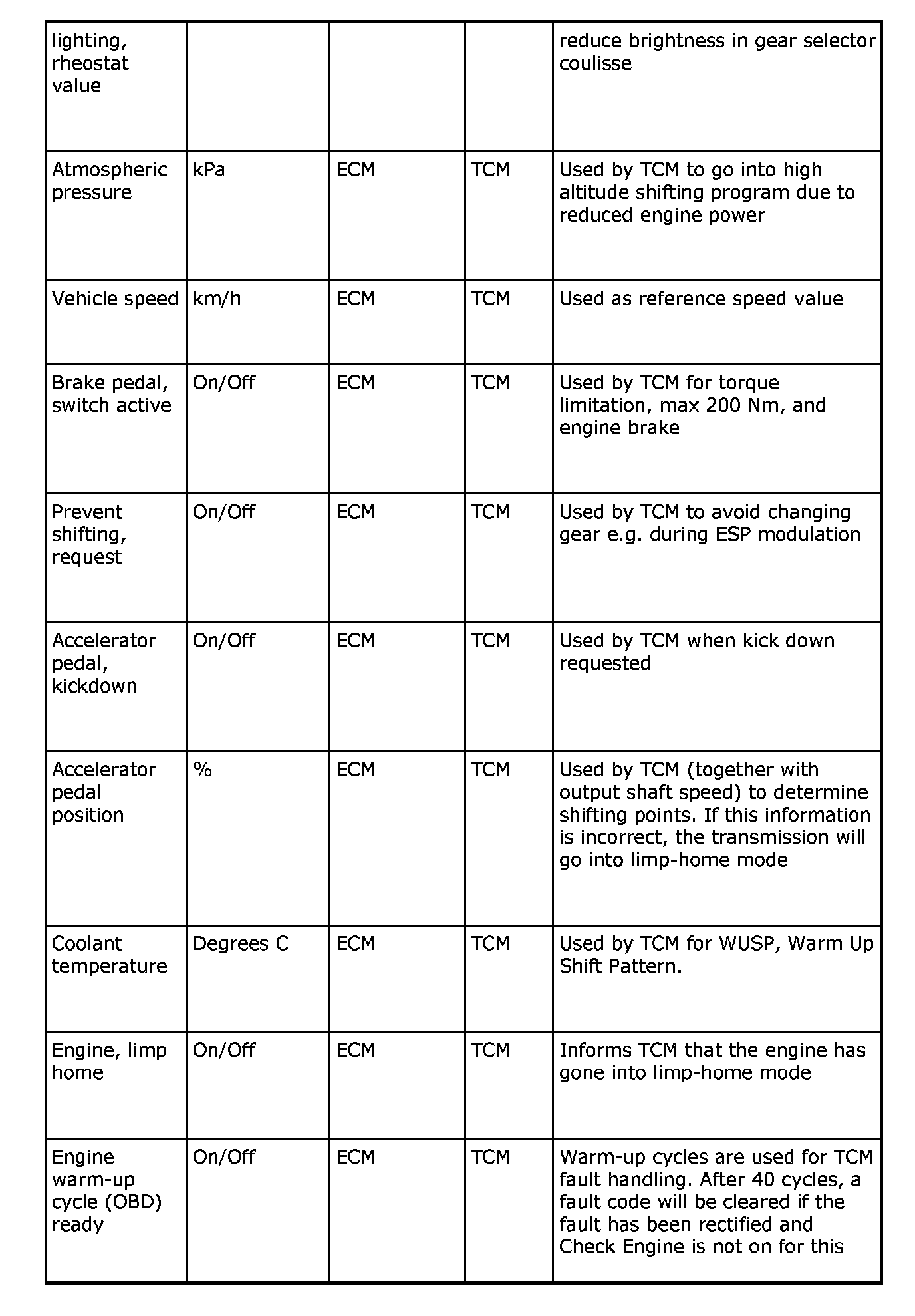

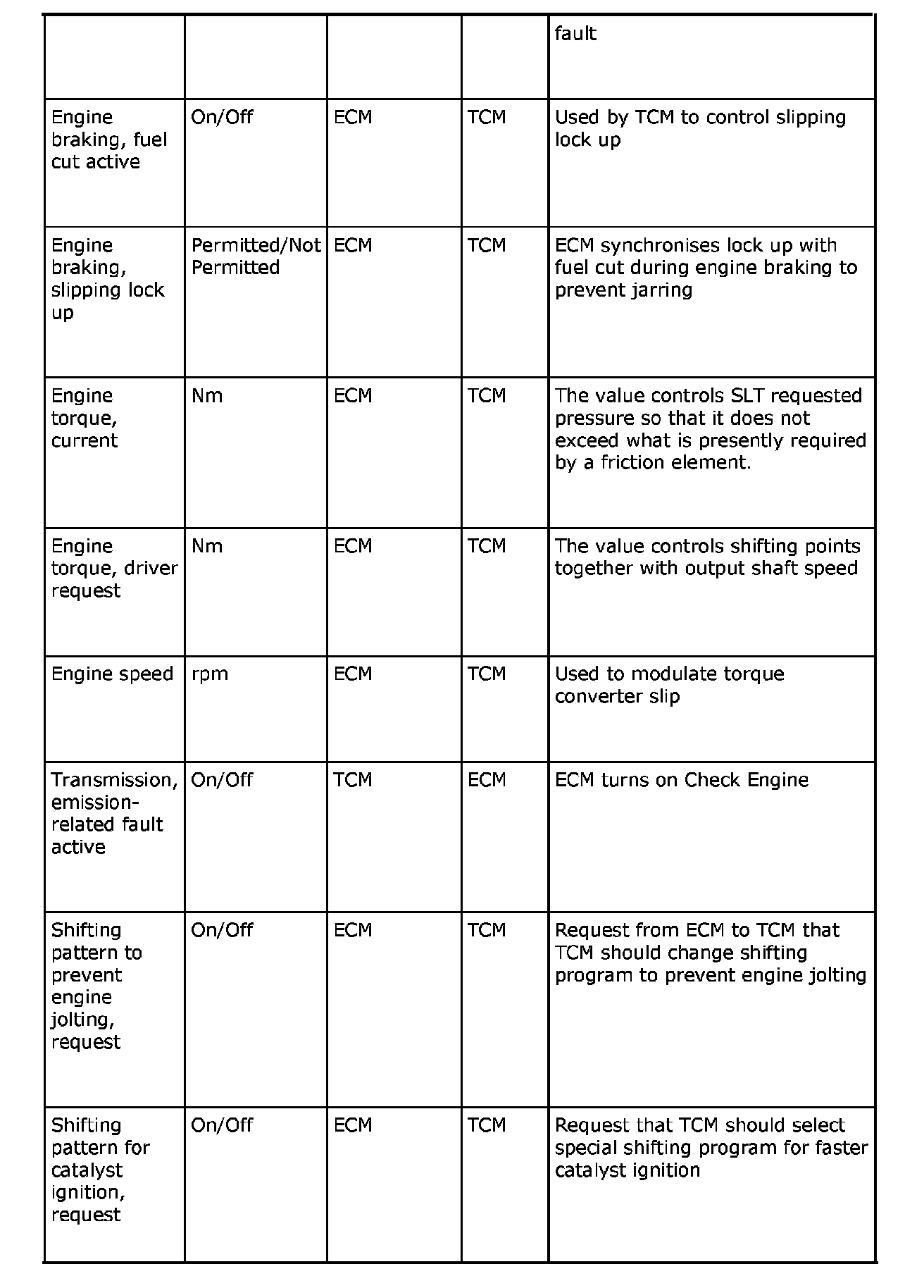

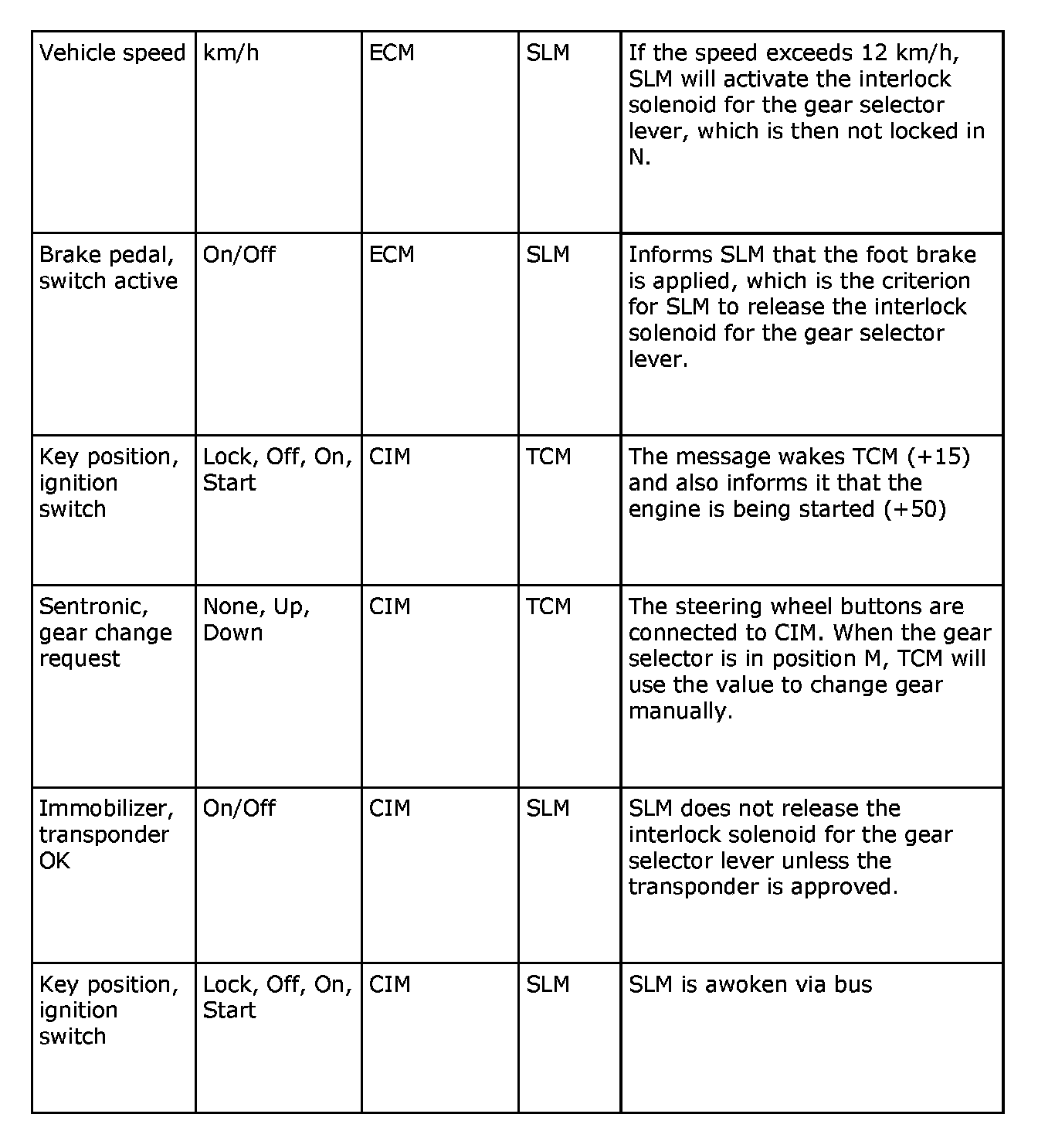

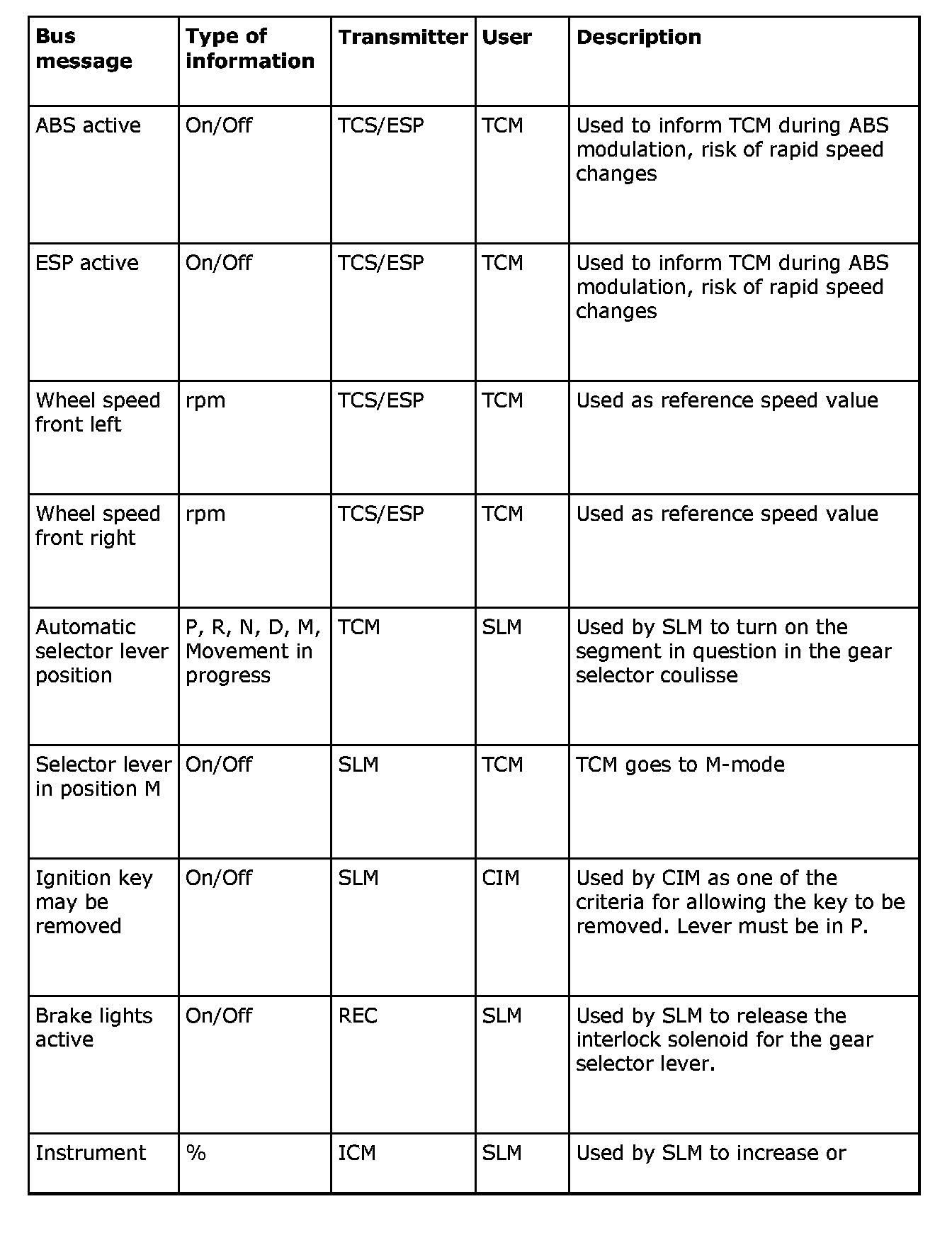

TCM, Bus Information

TCM, bus information














For further information on the bus, refer to Functional description, bus communication.
