Steering Wheel: Service and Repair

Steering Wheel

To remove

1. Remove the airbag from the steering wheel. Airbag, Driver (333D)
2. Turn the steering wheel and wheels to the straight ahead position.

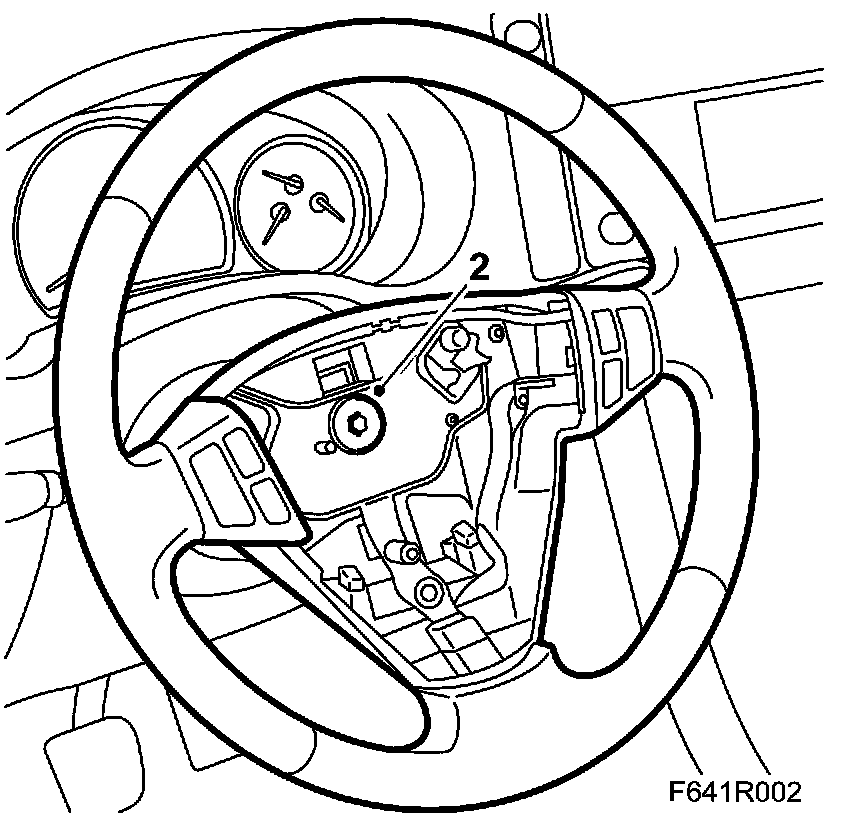

3. Remove the centre bolt from the steering wheel and lift off the steering wheel.






To fit
1. Fit the steering wheel onto the steering shaft.

Note: Make sure the steering wheel fits the key on the steering shaft.

2. Apply 74 96 268 Thread locking adhesive and fit the centre bolt.






Tightening torque 50 Nm (37 ft. lbs.)
3. Fit the airbag. Airbag, Driver (333D)
