Steering Column Control Module: Locations



Unit, Steering Column Assembly, (CIM) (703)

Location: on the steering column below the steering wheel

K8

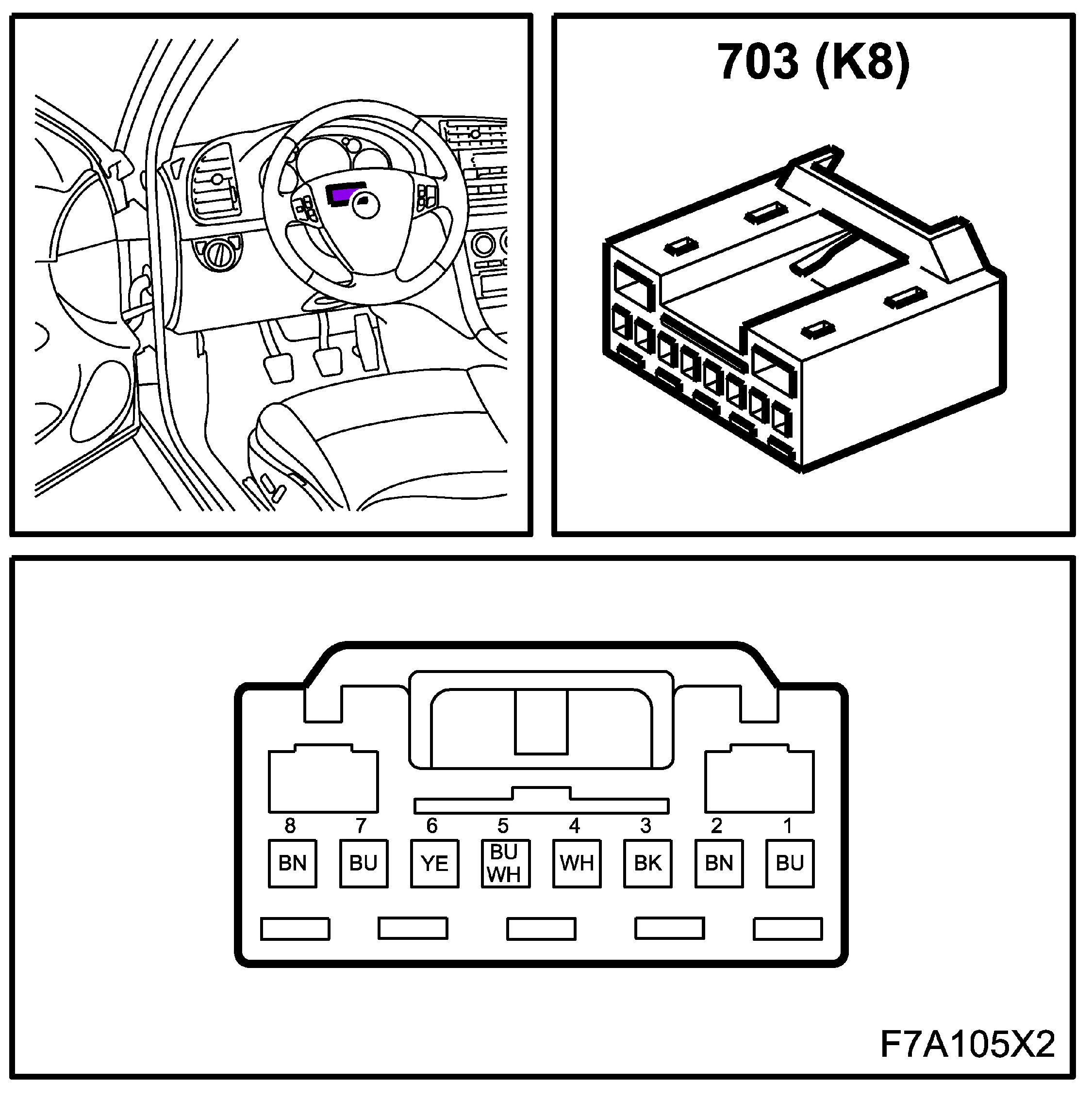

Unit, Steering Column Assembly, (CIM) (703), K8:





K25

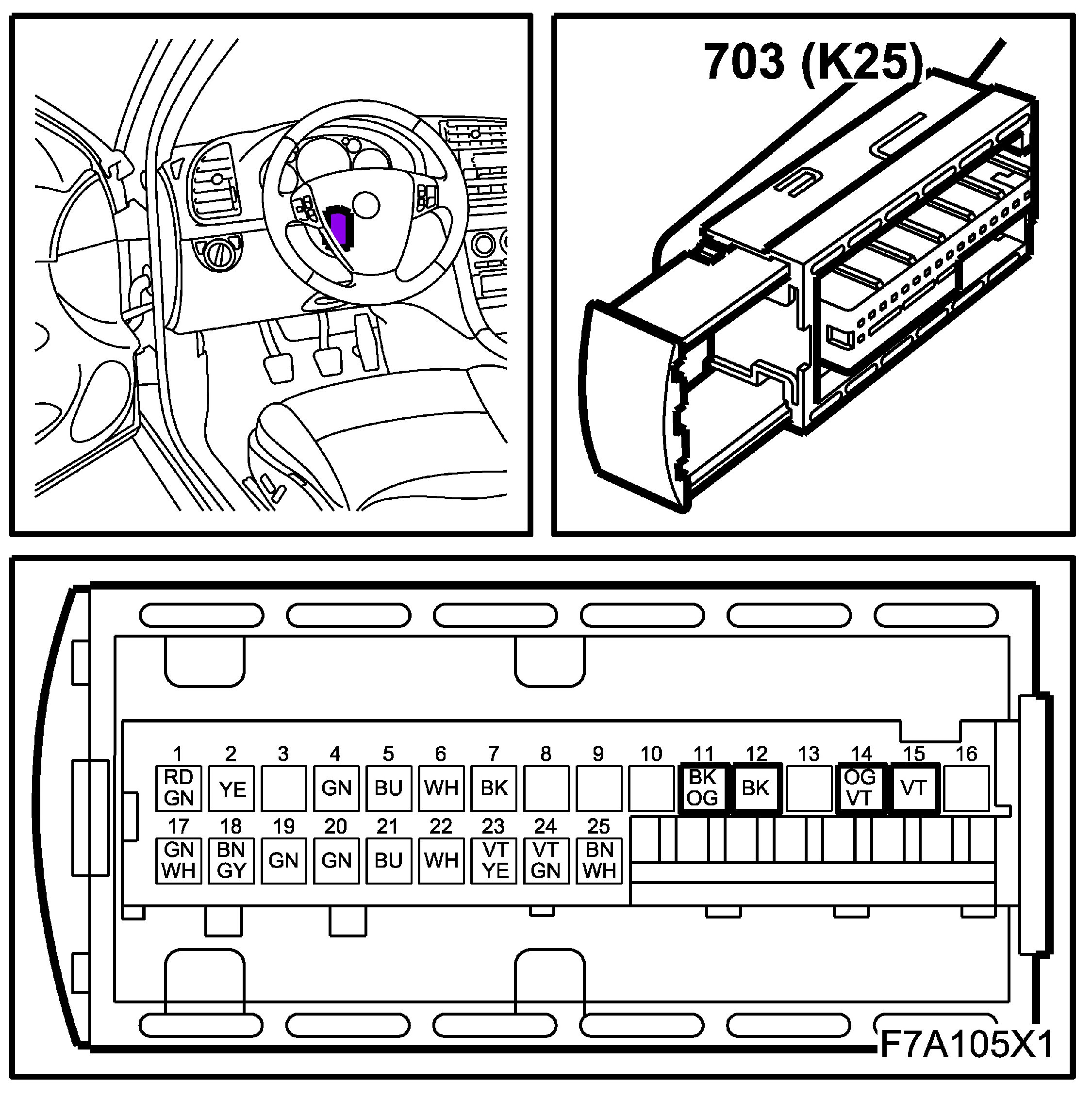

Unit, Steering Column Assembly, (CIM) (703), K25:
