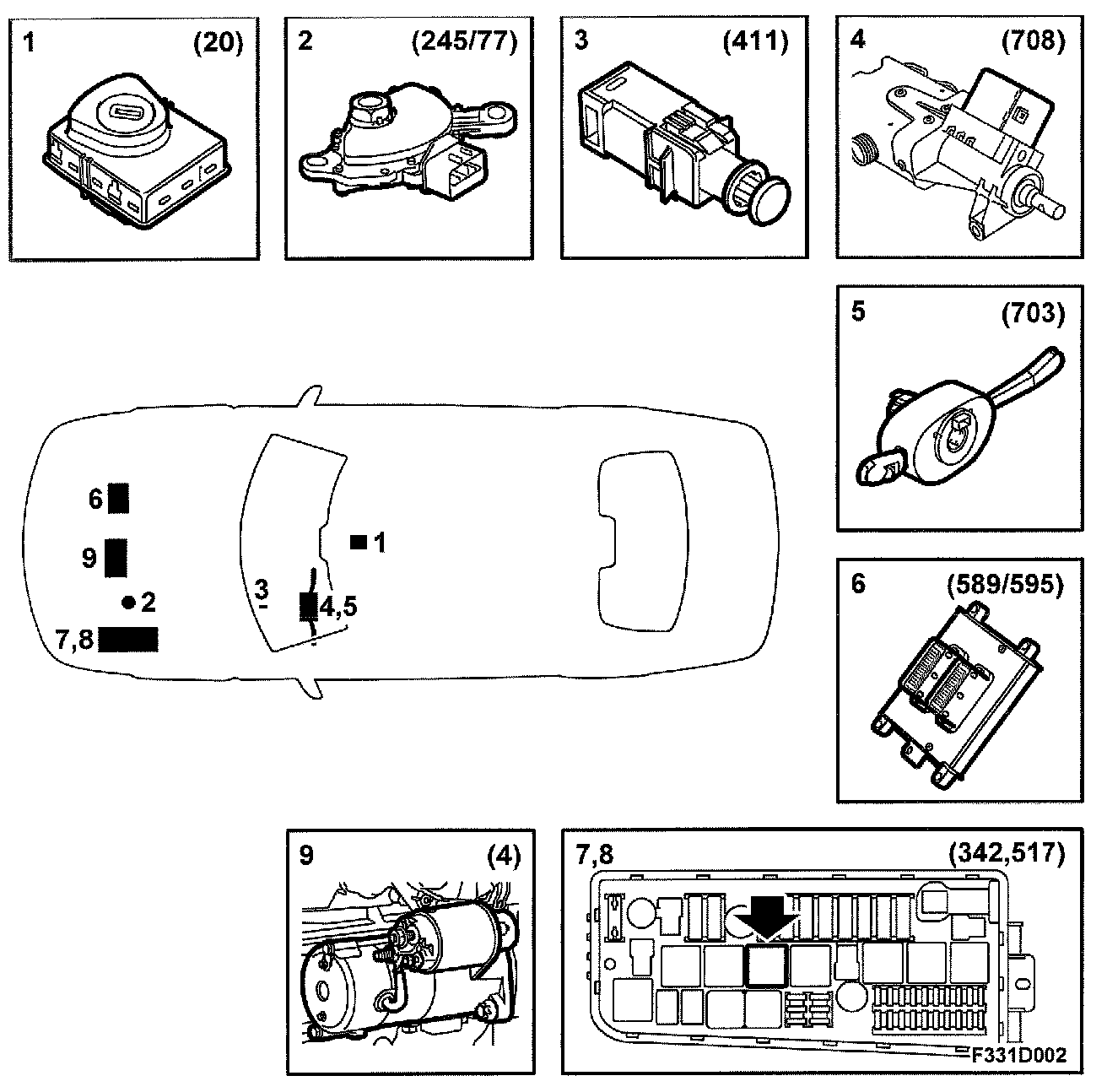

Main Components

Main Components:

Main Components
1. Unit, ignition switch, ISM (20)
2. Transmission range switch/immobiliser switch, automatic (245/77)
3. Switch, coupling, immobiliser (411)
4. Steering Column Lock (708)
5. Column Integration Module, CIM (703a)
6. Engine Control Module (ECM)
7. Relay, +50 (517)
8. Underhood Electrical Centre, UEC (342)
9. Starter motor (4)
