Grounding Point G40
Grounding Point G40

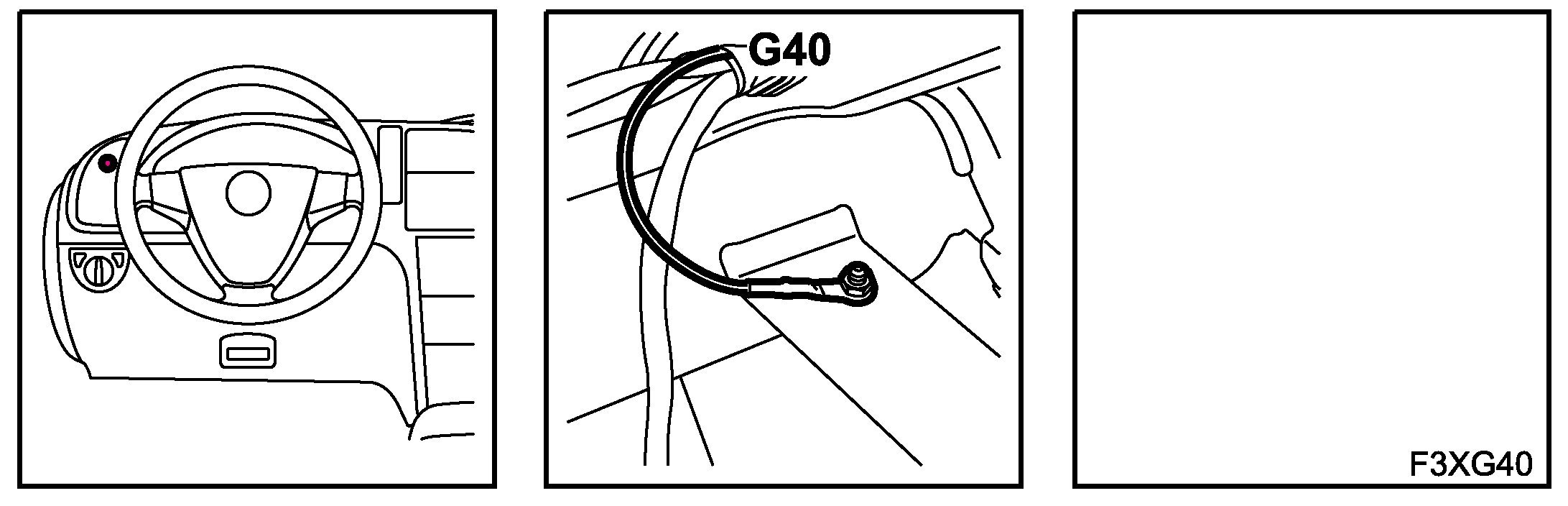

Location:
In the instrument space to the left of the knee member

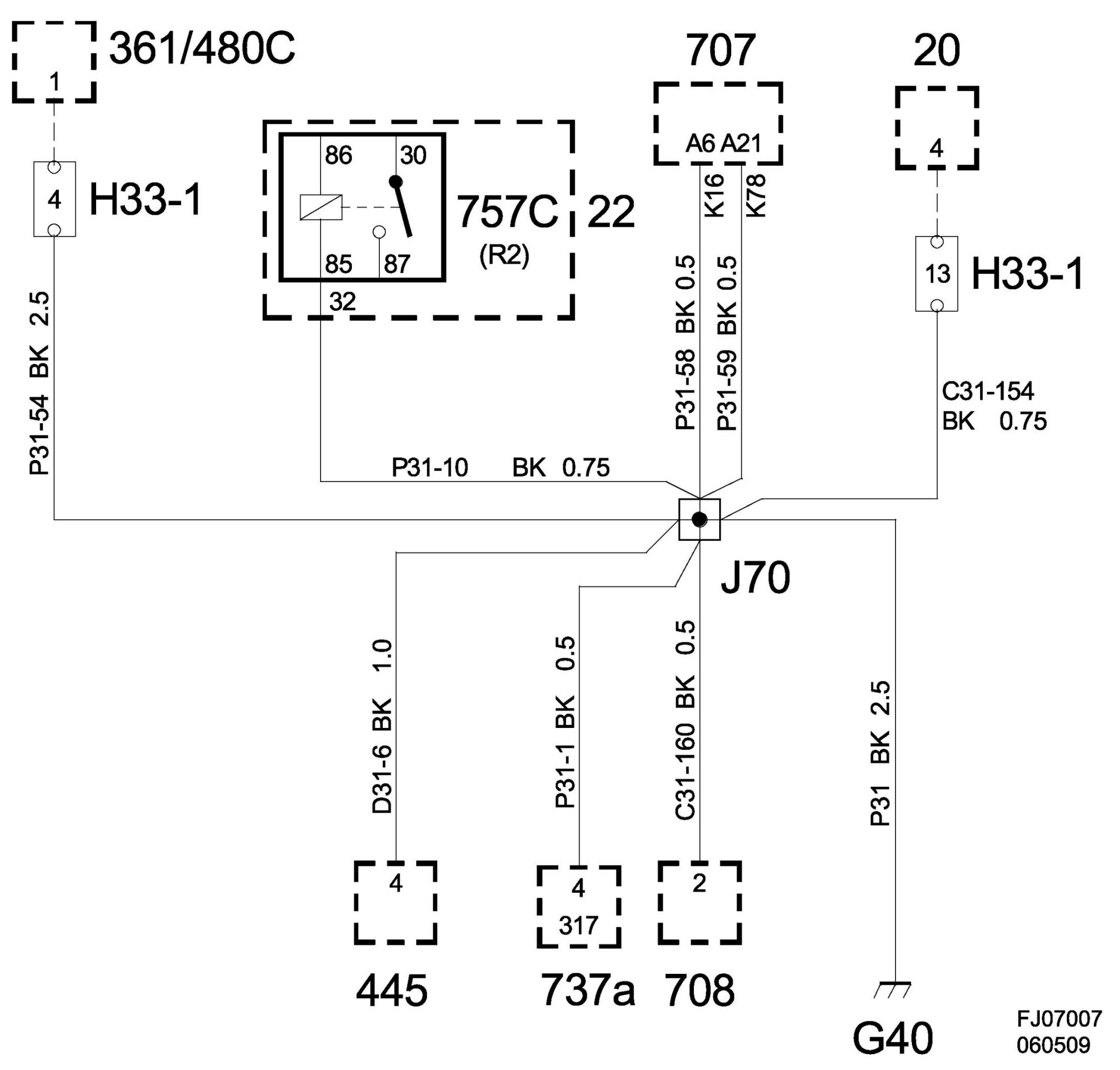

Grounding Point G40:

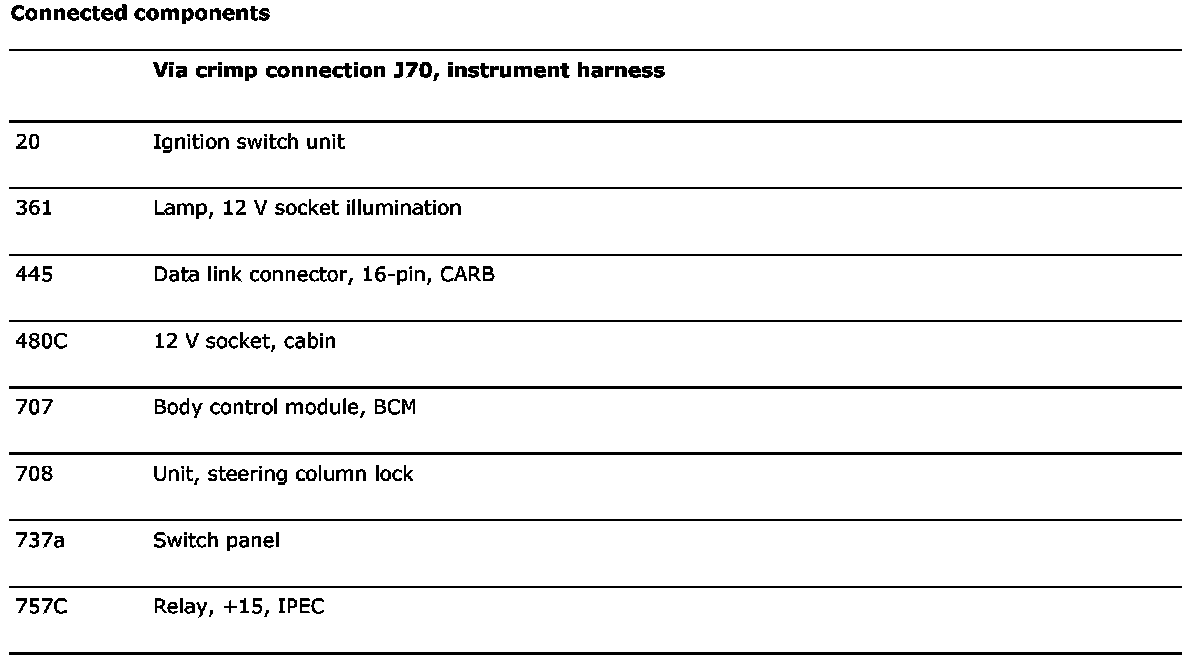

Connected Components:
