Power Supply +30, Main Fuse Box In the Engine Bay

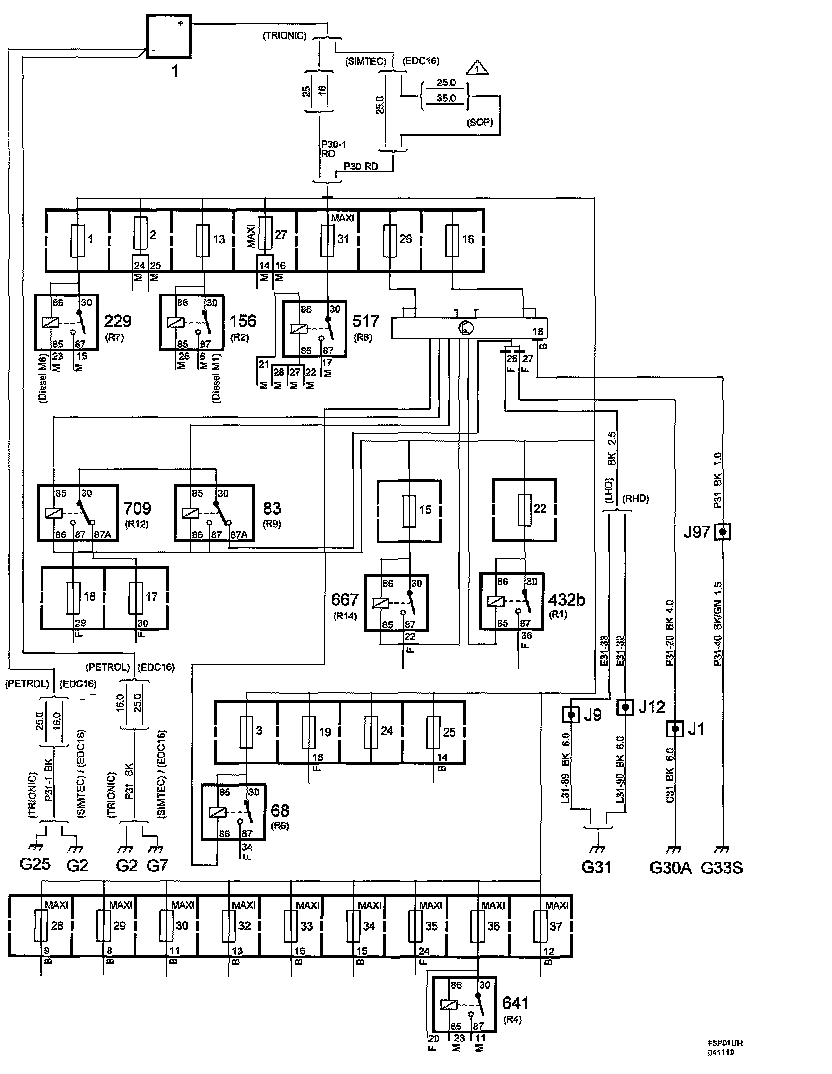

Power Supply +30, Main Fuse Box In the Engine Bay:

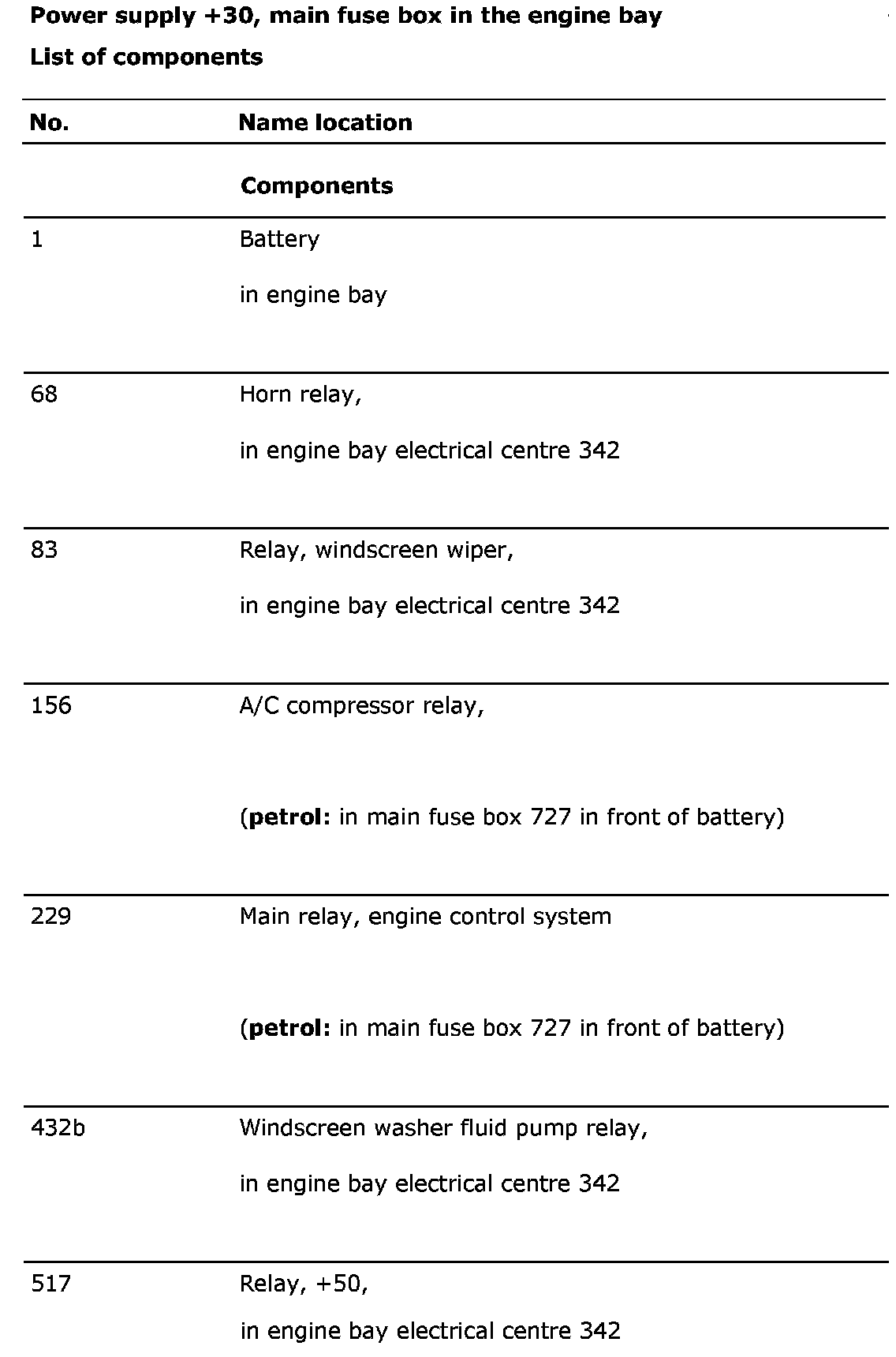

List Of Components (Part 1):

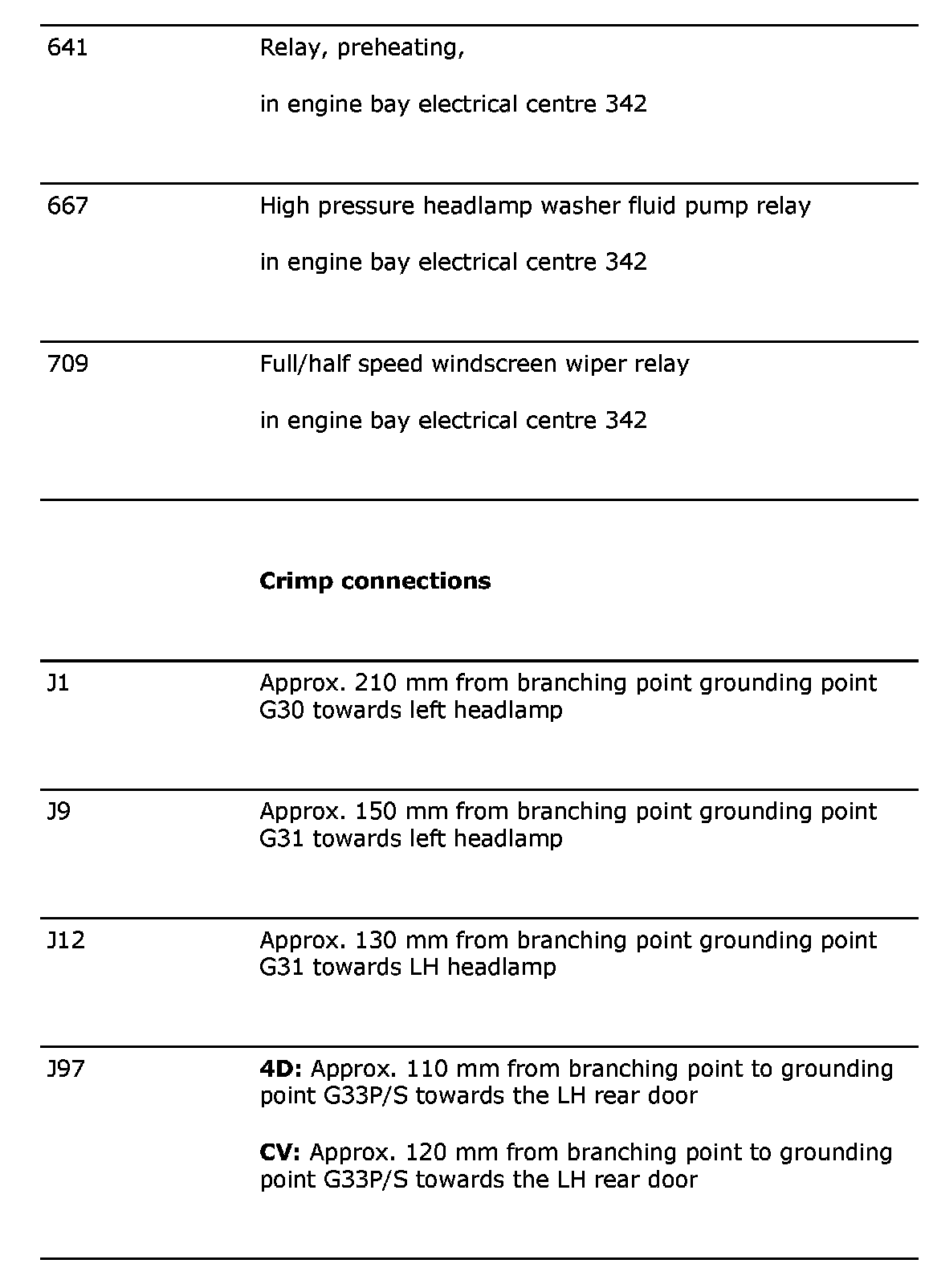

List Of Components (Part 2):

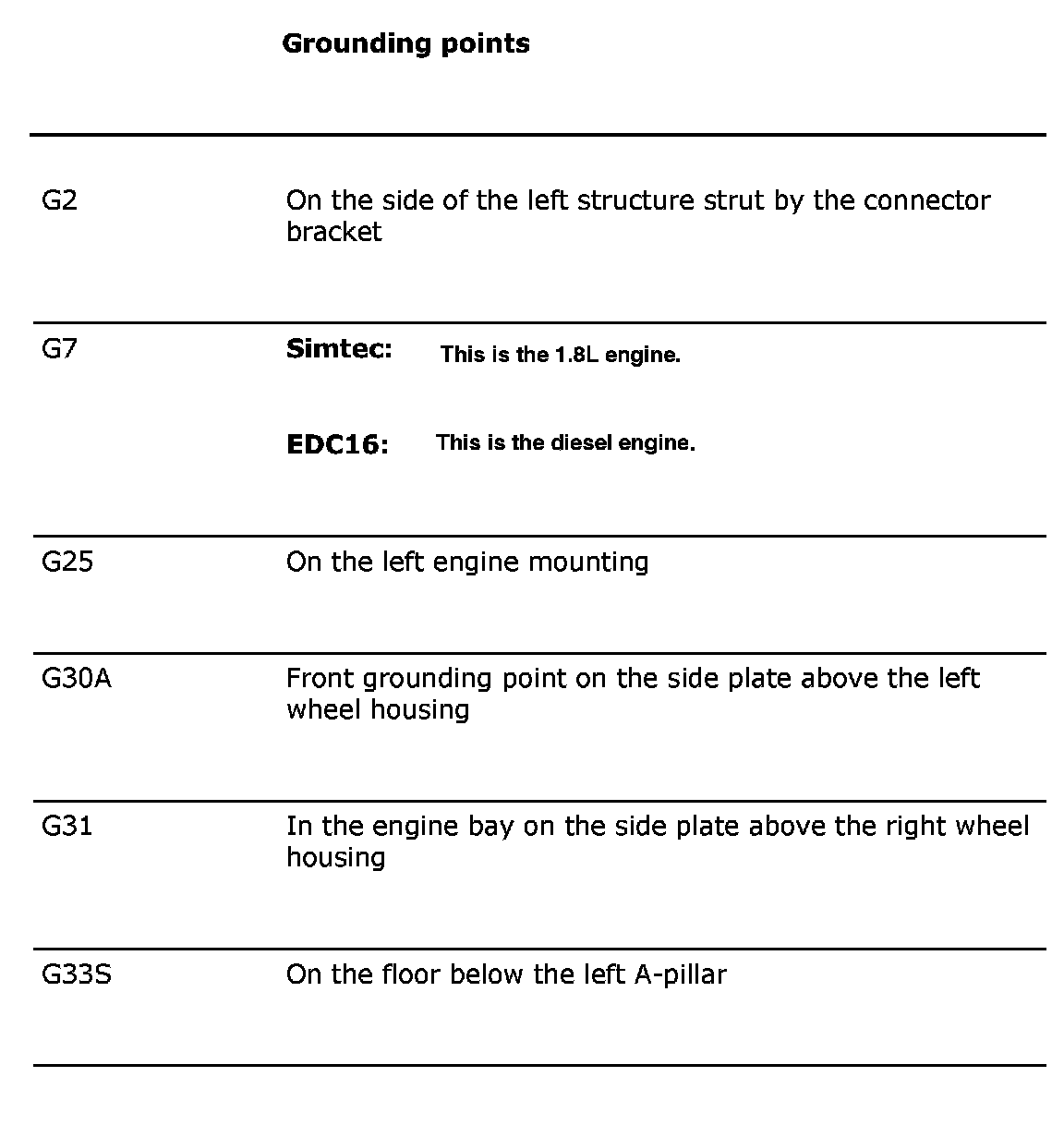

List Of Components (Part 3):
