Sedan

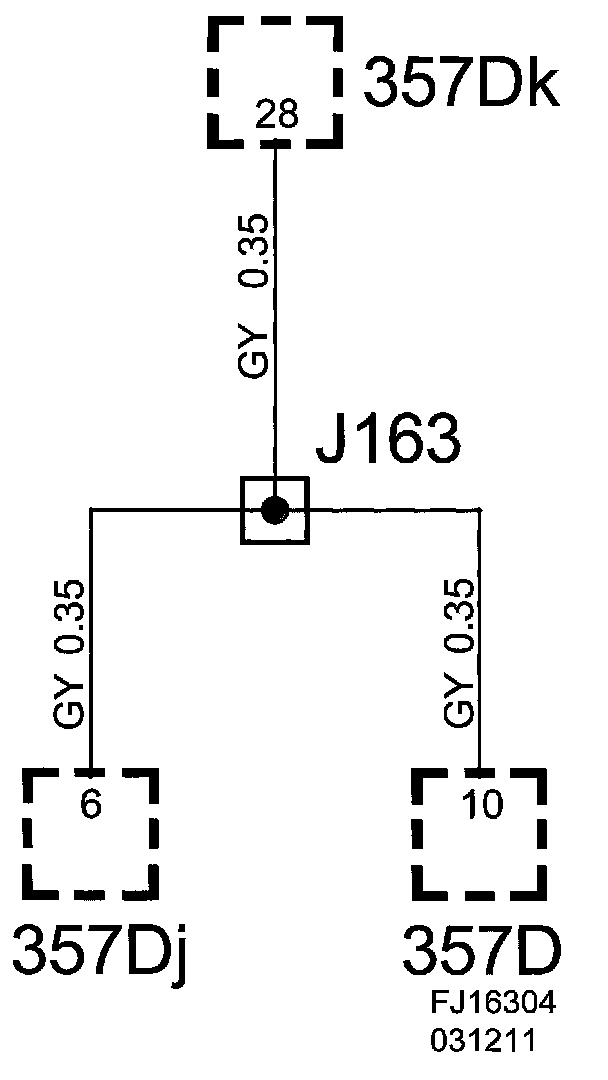

Crimp J163, Seat Harness

Location: Approx.35 mm from branching point motor 375b towards seat switch

Electrically adjustable seat with memory function 4D

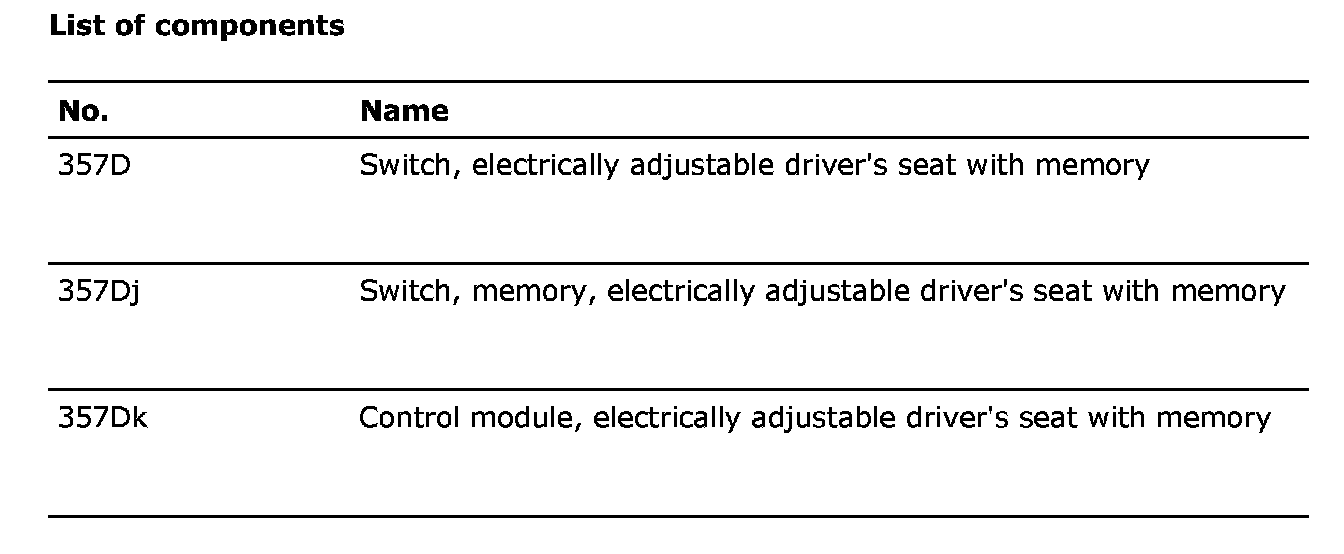

List Of Components:
