Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Specifications >> Alternator 120A

Alternator 120A

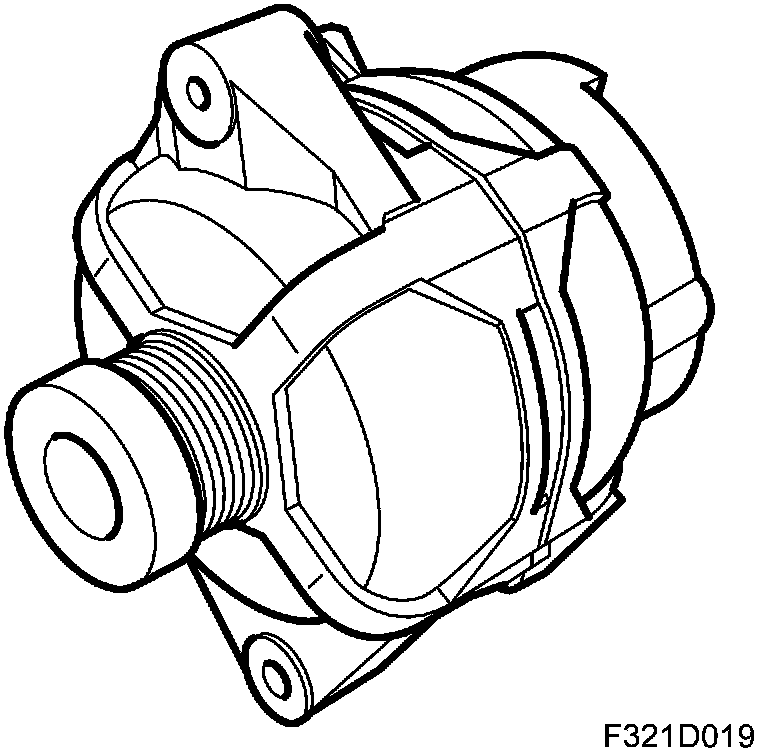

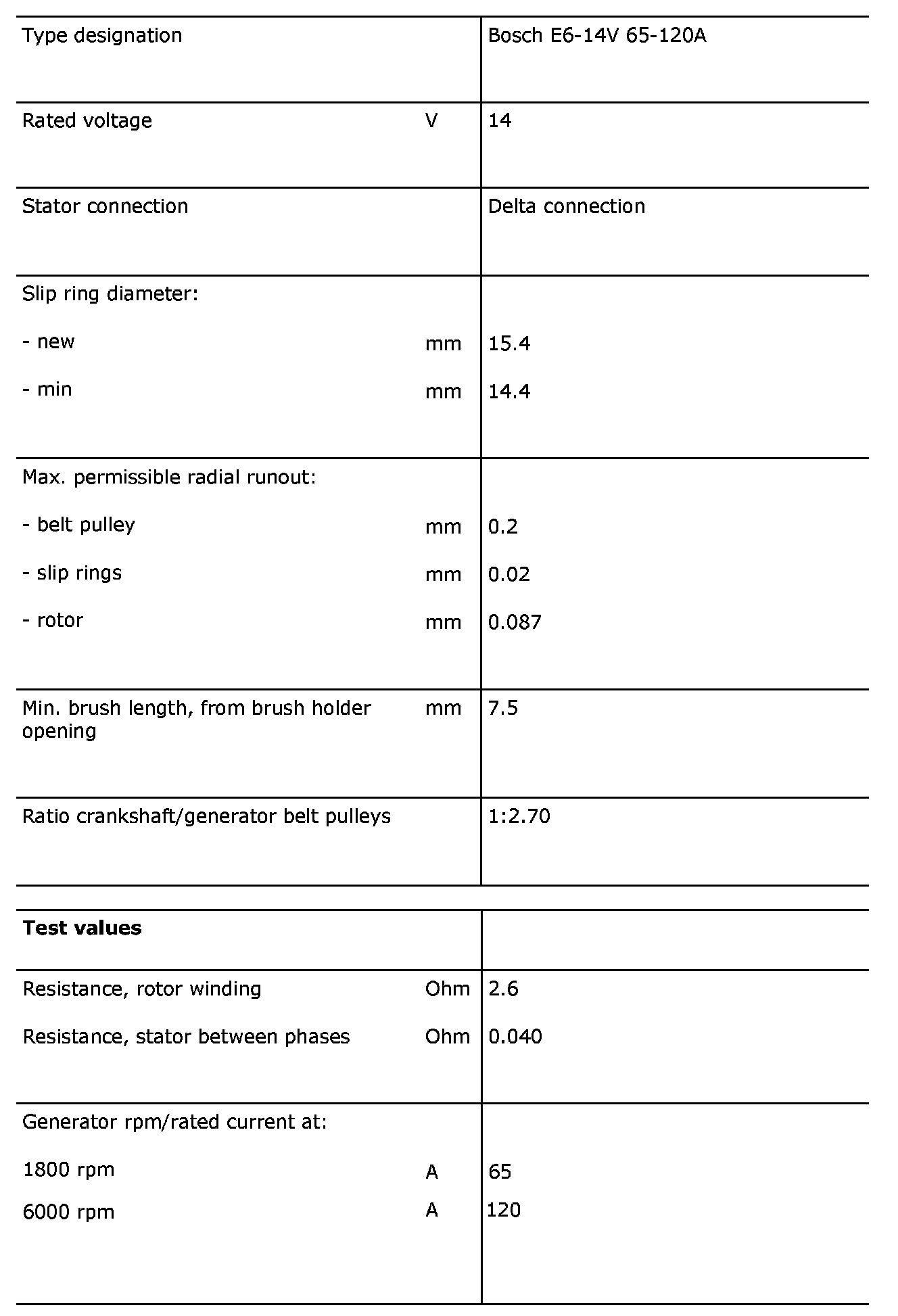

Alternator 120A, B207
