Alternator: Description and Operation

Generator (2)

Main task
The task of the generator is to supply power to the car's consumers when the engine is running and to keep the battery charged.

Type
Alternator with integrated charge regulator.

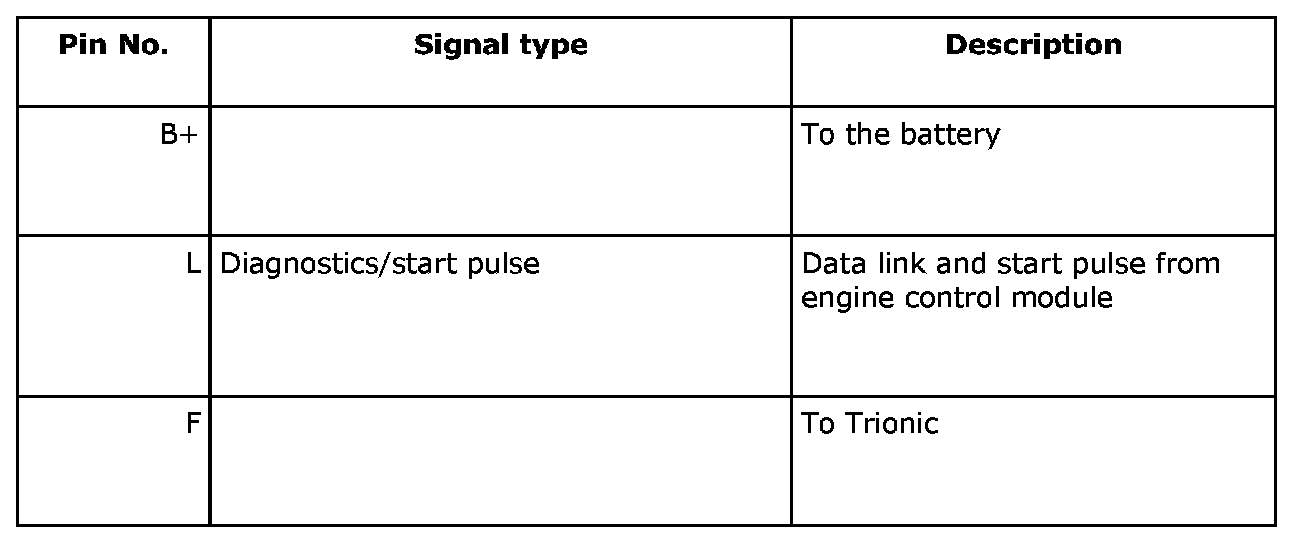

Connection

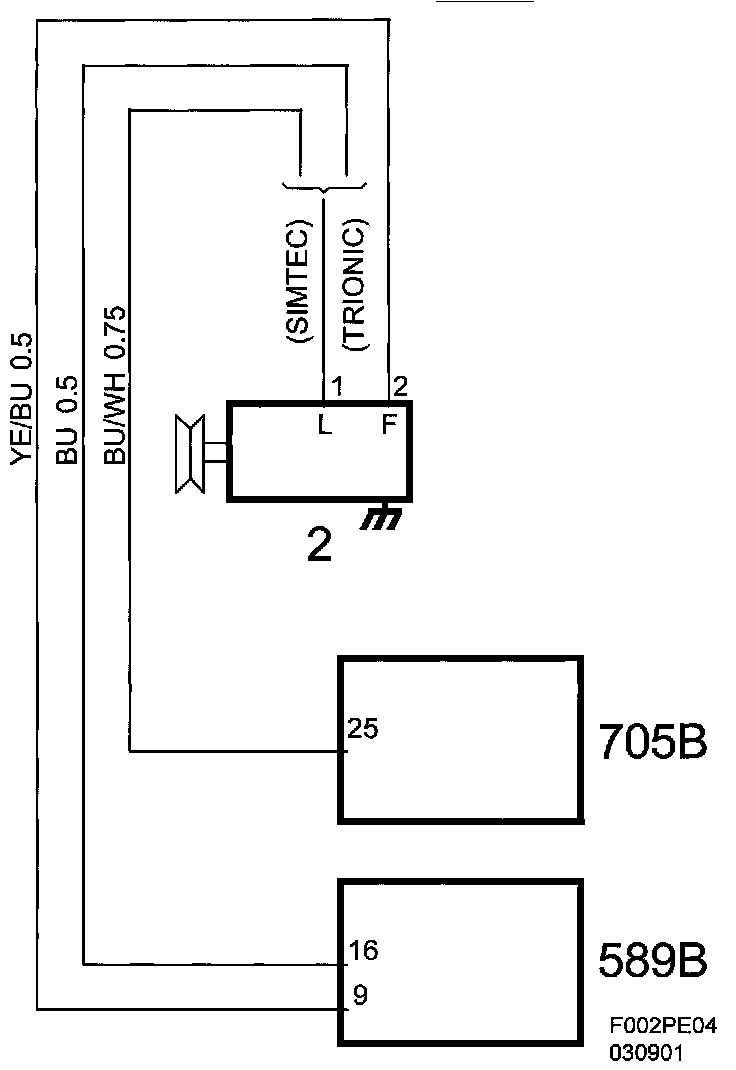

Generator, 4-cyl petrol
