Recommended Tyre Pressures

Recommended tyre pressures
Measuring tyre pressures should normally be carried out on cold tyres which means that the tyres have the same temperature as ambient temperature.

The pressure will rise when the tyre is warm (during fast motorway driving for example) and drop when the temperature drops.
The following values for air pressure apply at 20°C. For each 10°C rise the air pressure falls by 0.1 bar (2 psi).

For each reduction in the number of passengers the air pressure can be reduced by 0.1 bar. Maximum load = 5 persons and luggage.

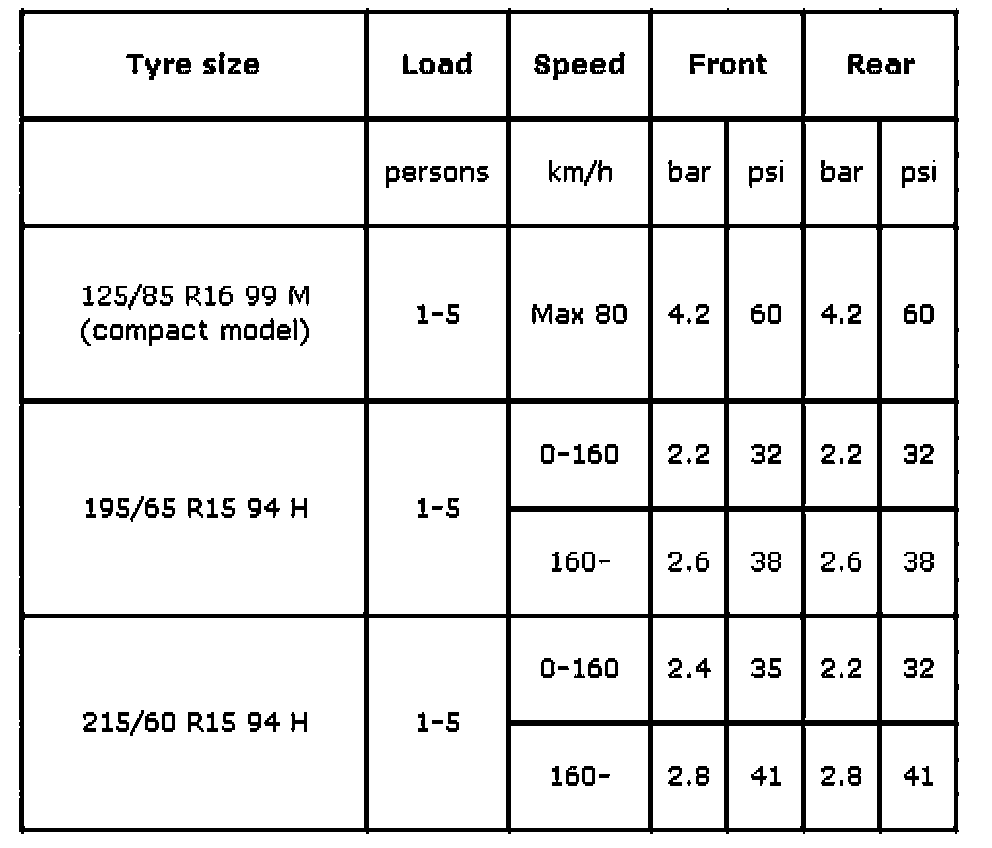

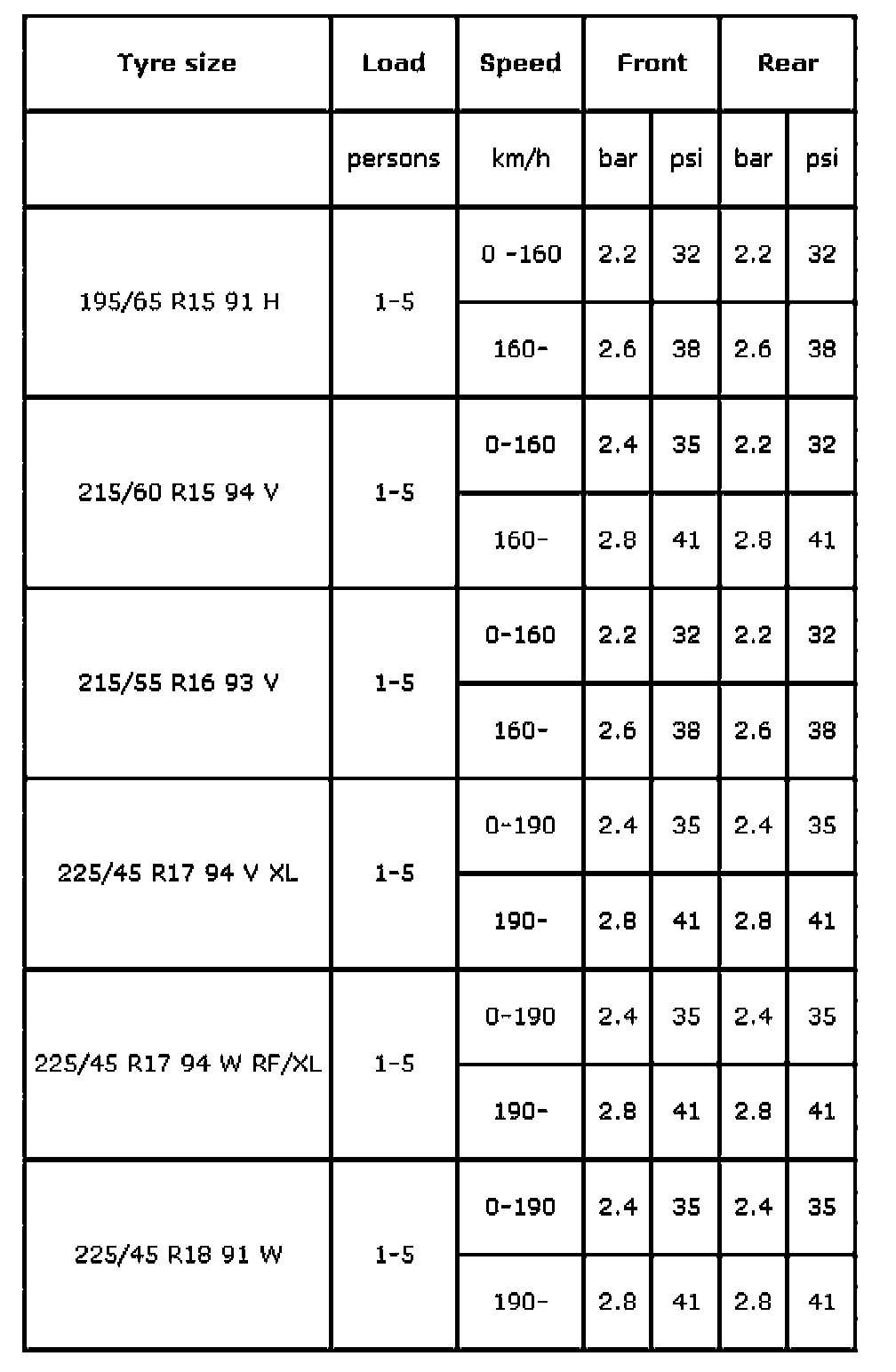

Summer Tyres

Summer Tyres:

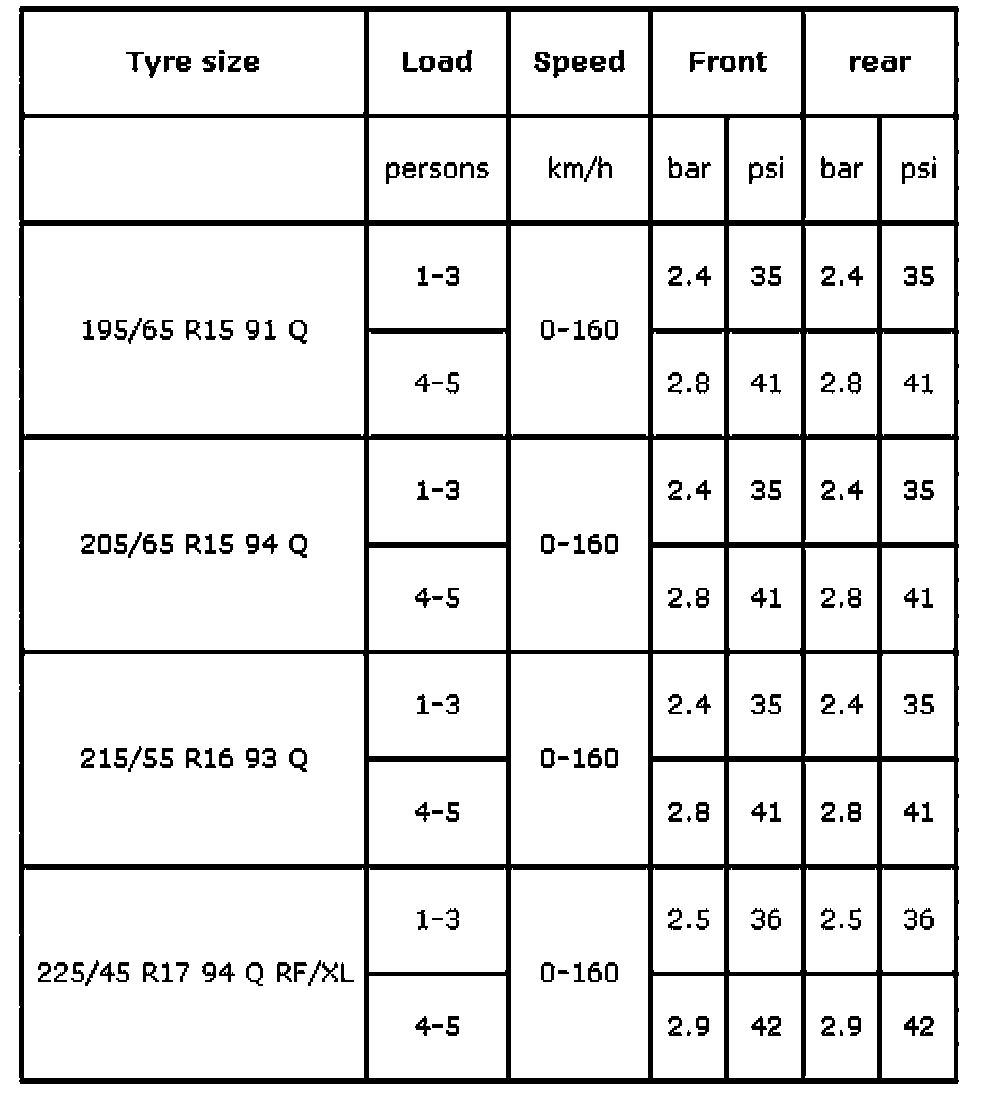

Winter Tyres

Winter Tyres:






Spare Tyre

Spare Tyre:
