Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Rear Suspension >> Tightening Torques

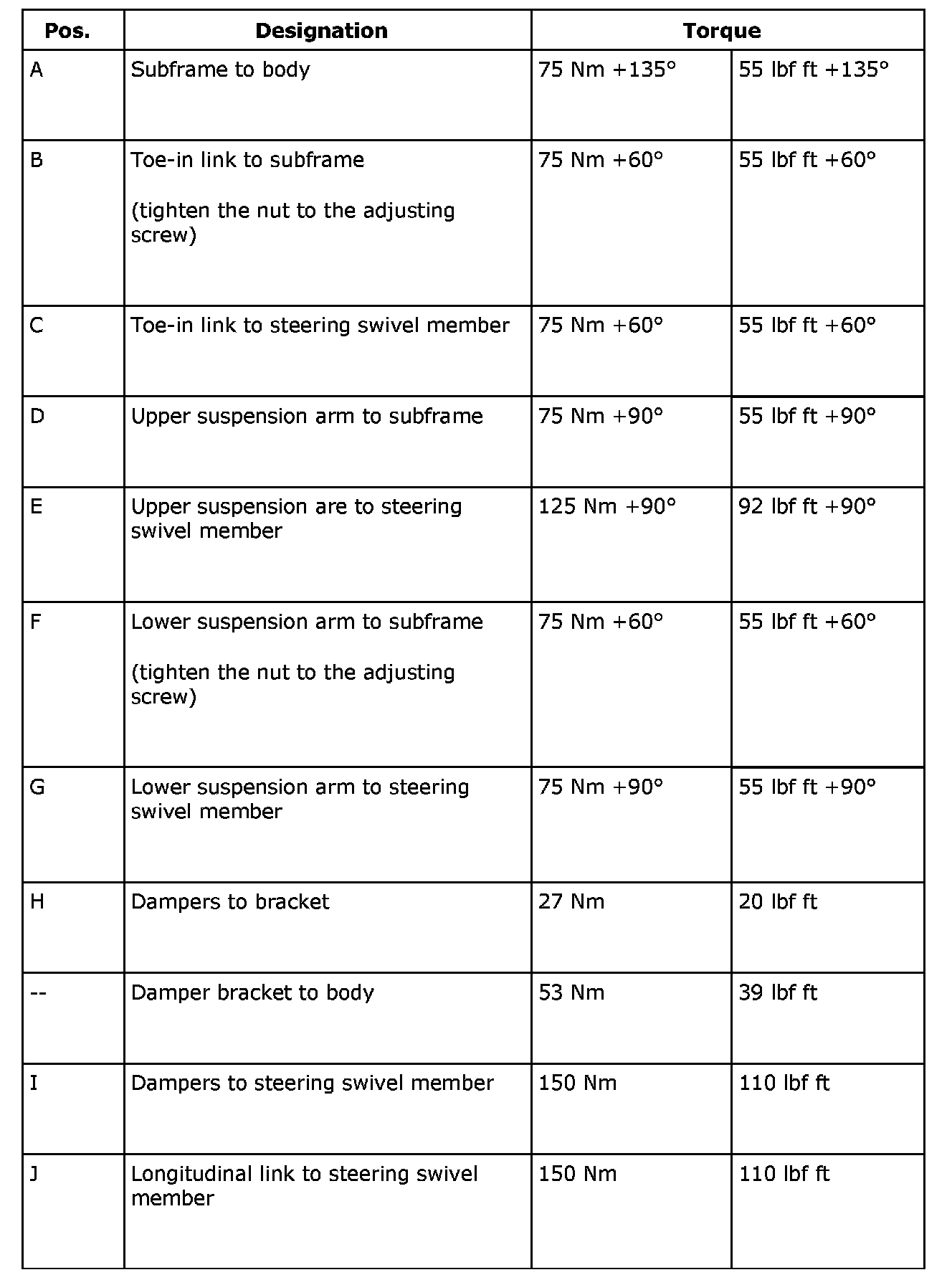

Tightening Torques

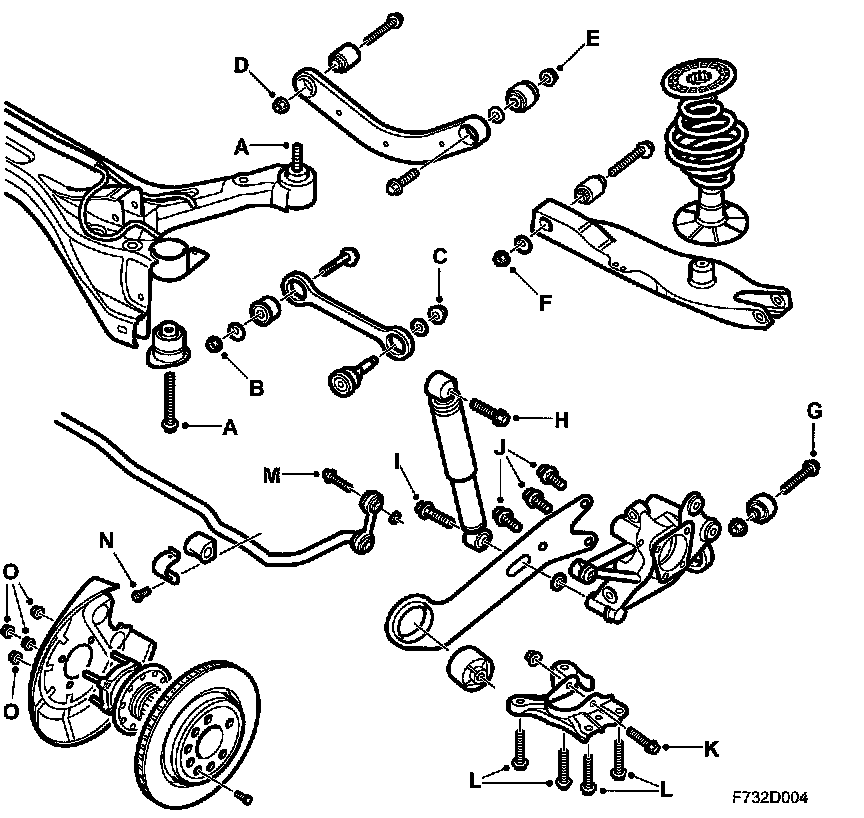

Exploded View:



Index A To J:



Index K To O:
