Camshaft, Engine

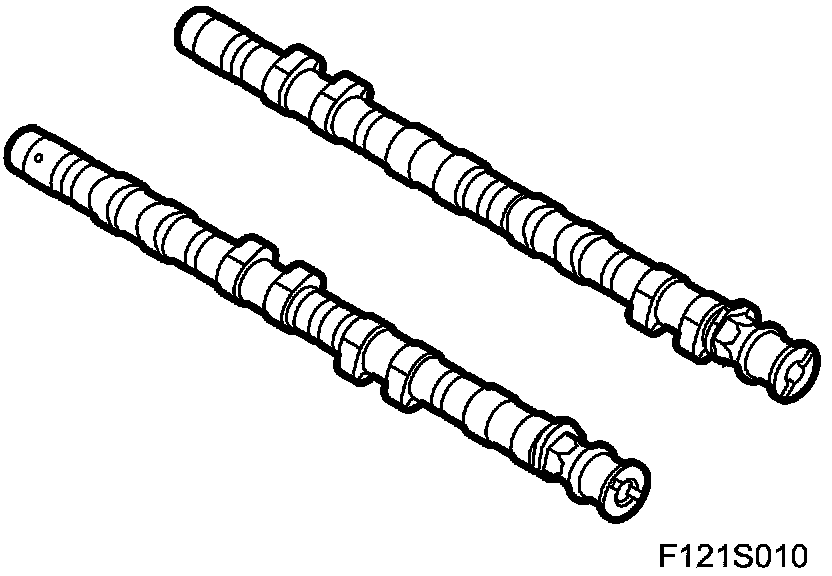

Camshafts




Specifications:

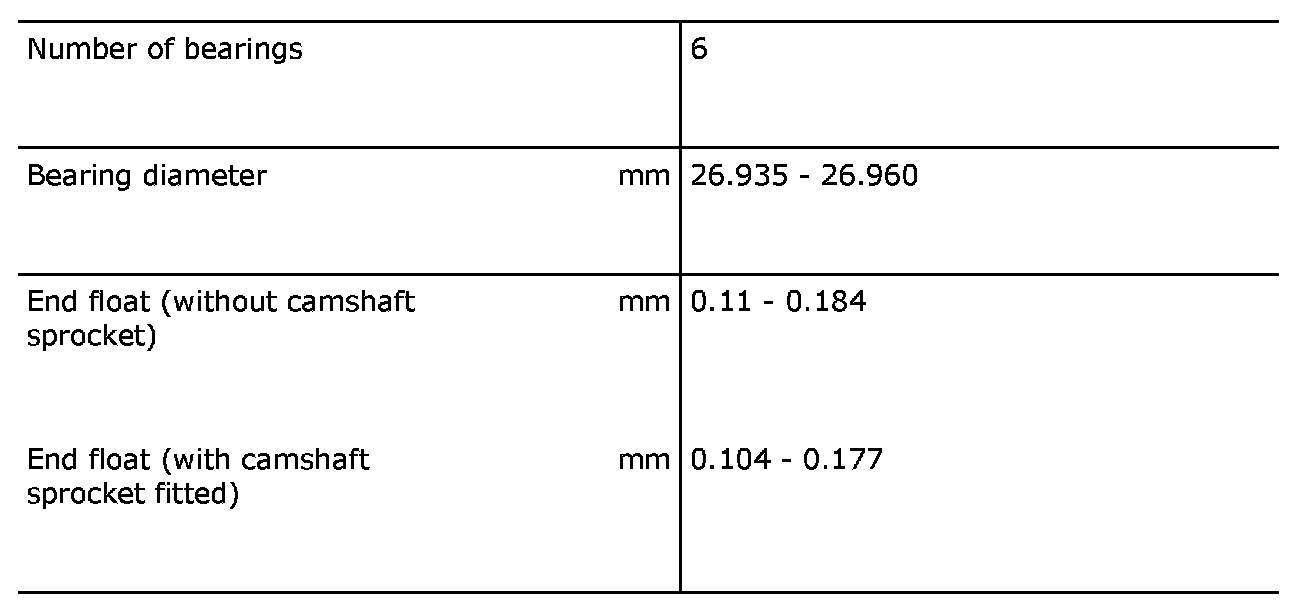

General data

Specifications:

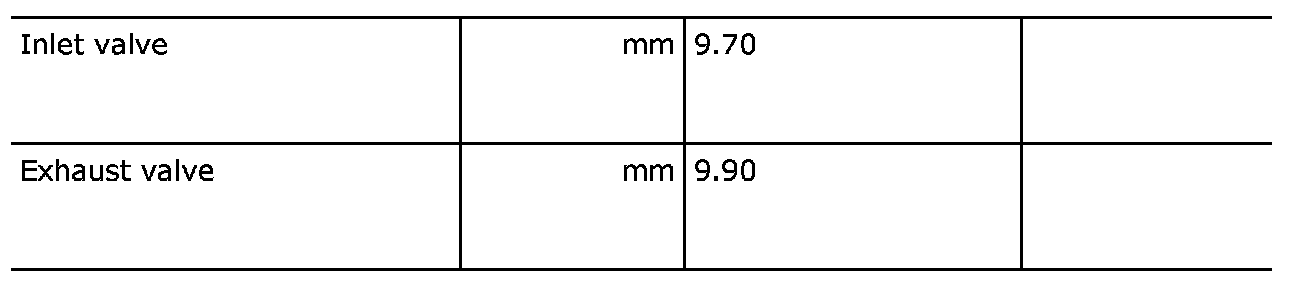

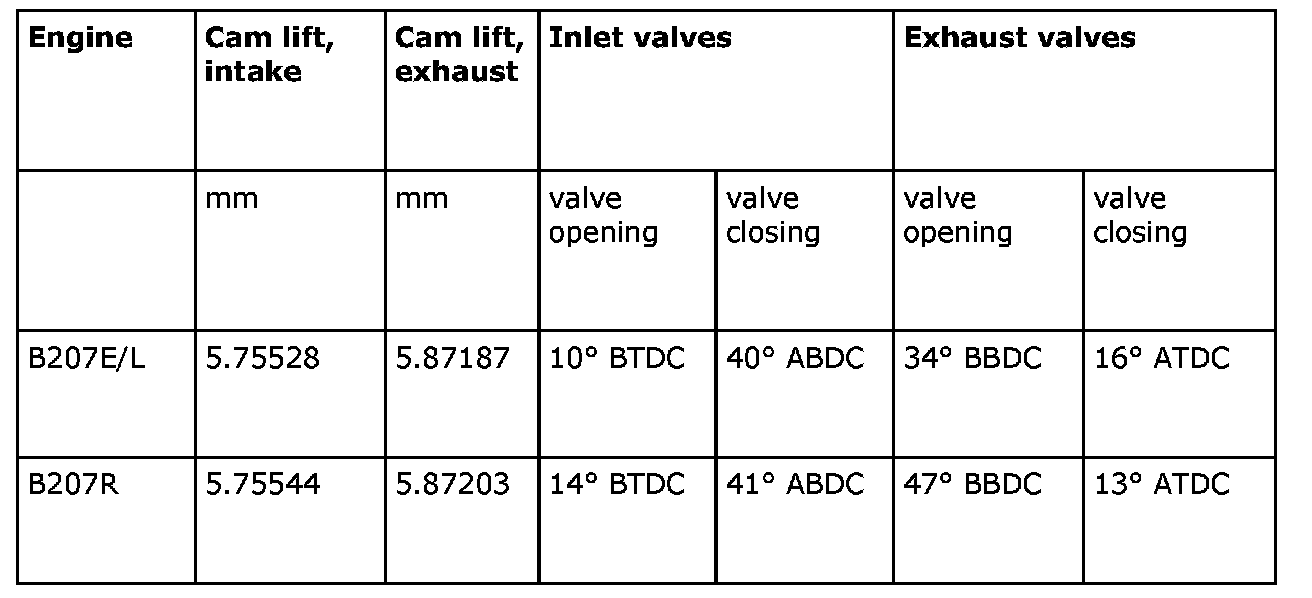

Cam lift

Specifications:




Specifications:

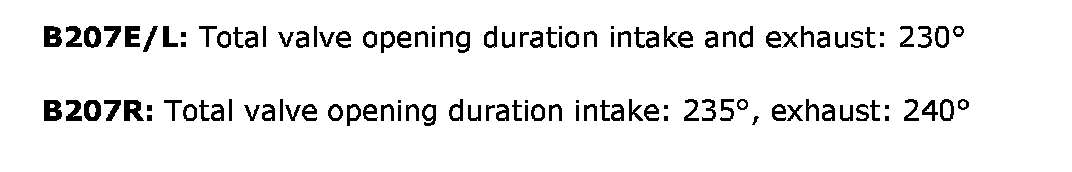

Valve timing
