Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Radiator Cooling Fan Motor >> Radiator Fan System, B207, Two Fans

Radiator Fan System, B207, Two Fans

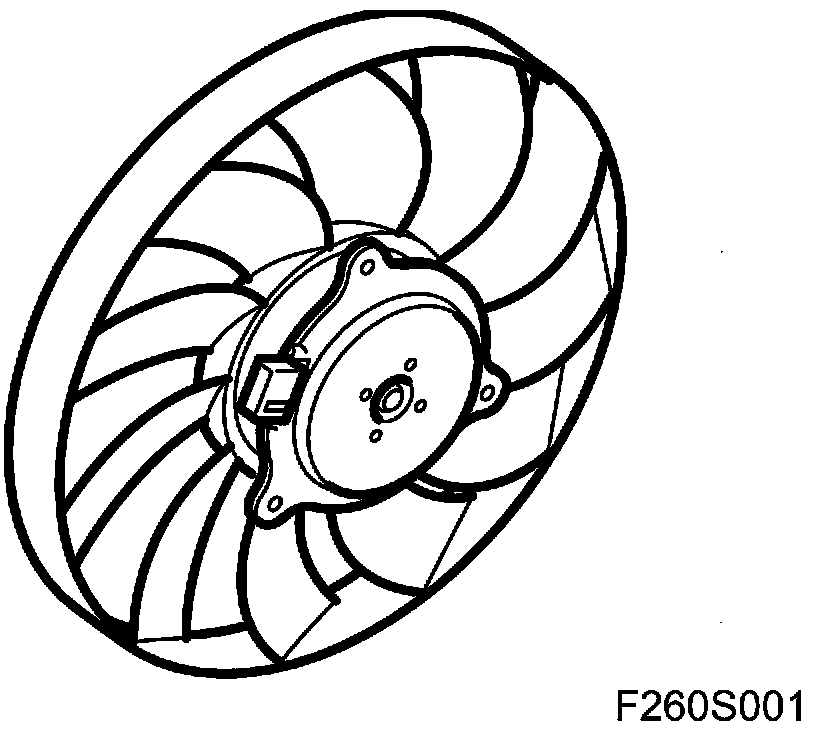

Radiator Fan Motor (37LH, 37RH), B207






Power supply 12 V
Power consumption 37LH 24 A
Power consumption 37RH 16 A
