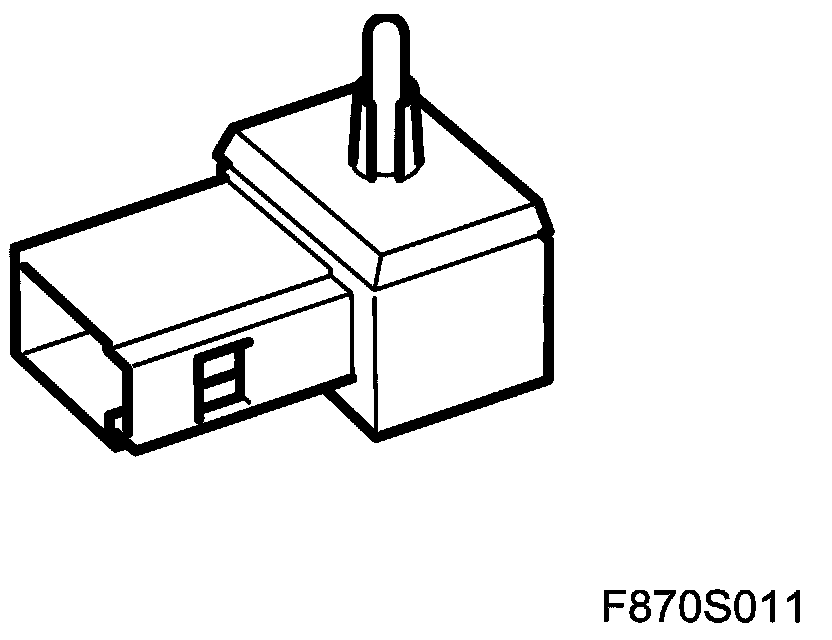

Cabin Temperature Sensor (218)



Cabin Temperature Sensor (218)









Voltage fed with 5 V through a 19.6 kOhmn resistor in the control module.
