Motor, Air Distribution, Panel, Left (716LH)

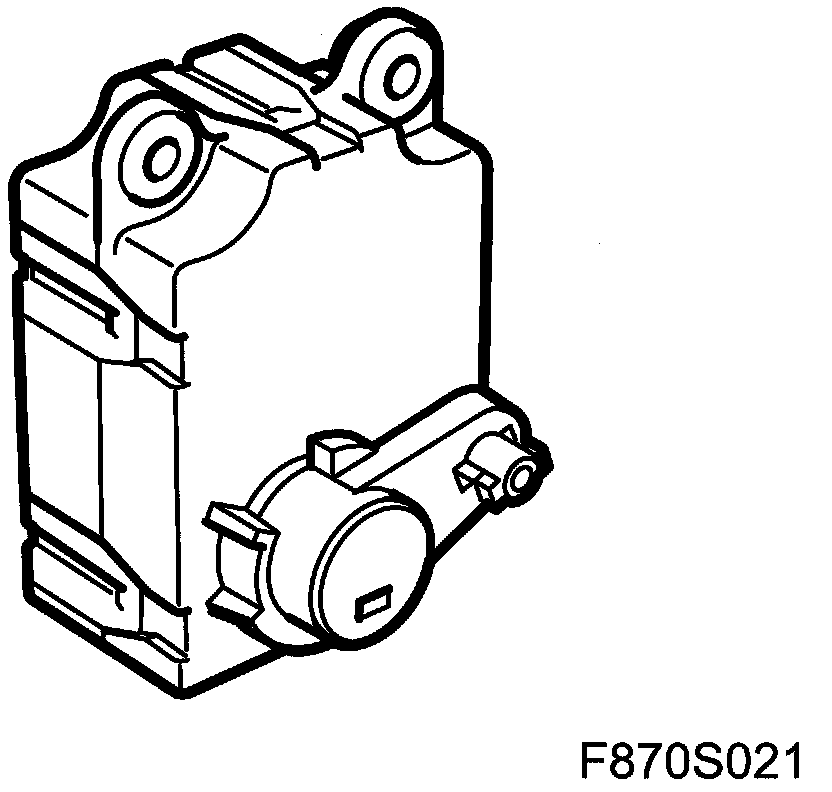

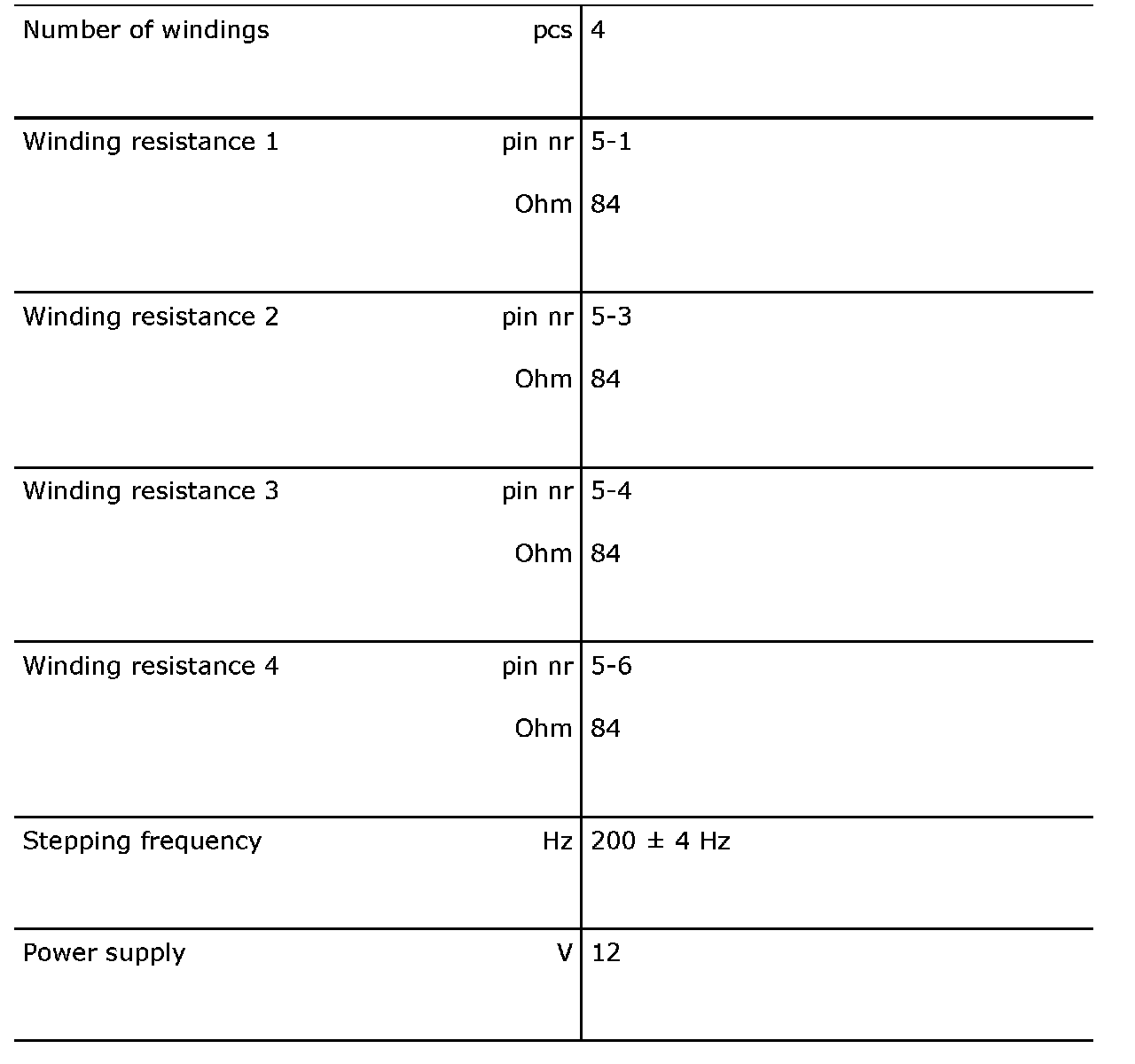

Left Panel, Air Distribution Flap Stepping Motor (716LH)
